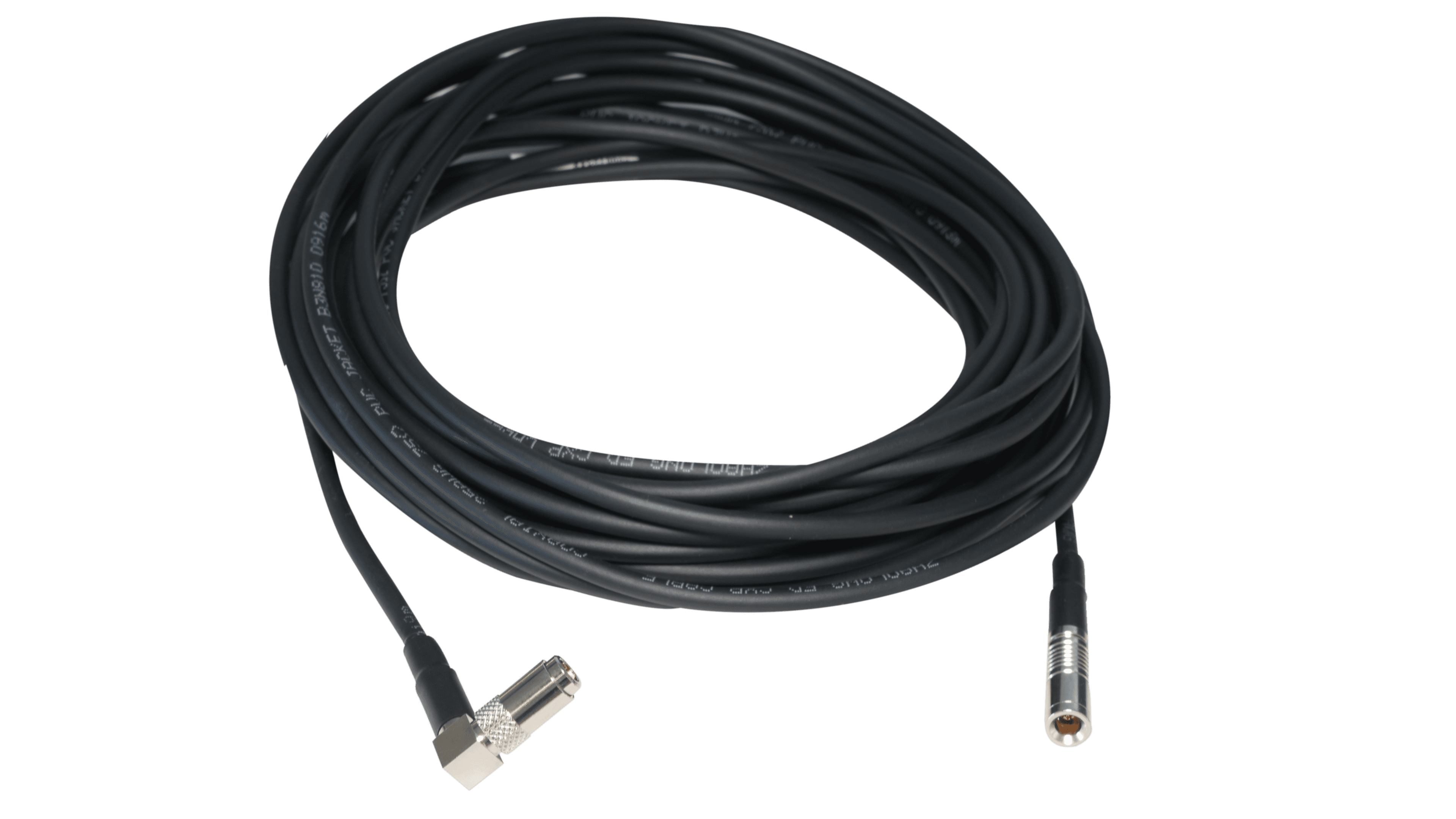

High-flex CXP-6 data cable (DIN-DIN angled), 8 m
Manufacturer part number: 310102285
- Accessory type
- Data cable
- Interface / system
- CoaxPress 6
- Length
- 8 m
- Connector A
- DIN 1.0/2.3
- Connector B
- DIN 1.0/2.3 (angled)
- Flexibility
- Hochflex
- Connector orientation
- Winkel
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310102285 |
|---|---|
| Type | CXP-6 High-Flex Data Cable |
| End A connector | DIN 1.0/2.3 |
| End B connector | DIN 1.0/2.3 (angled) |
| Cable diameter | 5 mm |
| Length | 8 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 2 million times |
| Max. voltage | 300 VDC |
| Working temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet Hochflex CXP-6 Datenkabel (DIN-DIN Winkel), 8 m
Datasheet · EN · 437 KB
