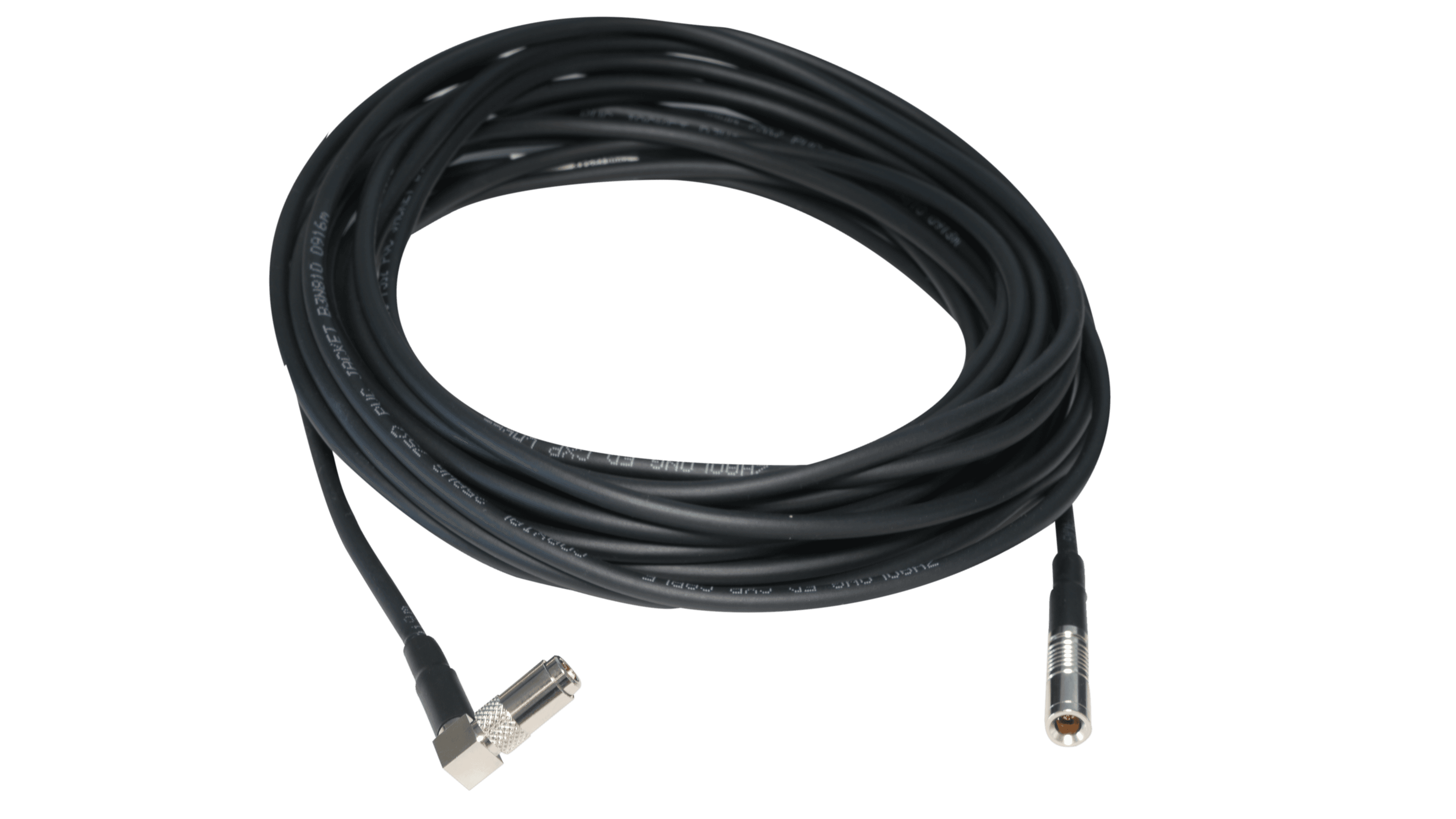

High-flex CXP-6 data cable (DIN-DIN angled), 10 m
Manufacturer part number: 310102690
- Accessory type
- Data cable
- Interface / system
- CoaxPress 6
- Length
- 10 m
- Connector A
- DIN 1.0/2.3
- Connector B
- DIN 1.0/2.3 (angled)
- Flexibility
- Hochflex
- Connector orientation
- Winkel
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310102690 |
|---|---|
| Type | CXP-6 High-Flex Data Cable |
| End A connector | DIN 1.0/2.3 |
| End B connector | DIN 1.0/2.3 (angled) |
| Cable diameter | 5 mm |
| Length | 10 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 2 million times |
| Max. voltage | 300 VDC |
| Working temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

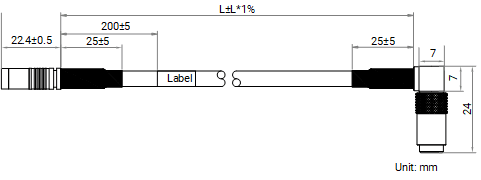

Dimensional drawing
Documents
- Download datasheet
Datasheet Hochflex CXP-6 Datenkabel (DIN-DIN Winkel), 10 m
Datasheet · EN · 437 KB
More HIKROBOT products in this category
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 3 m310102202
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 4 m310102203
- High-flex CXP-6 data cable (DIN-DIN angled), 1.5 m310102282
- High-flex CXP-6 data cable (DIN-DIN angled), 3 m310102283
- High-flex CXP-6 data cable (DIN-DIN angled), 5 m310102284
- High-flex CXP-6 data cable (DIN-DIN angled), 8 m310102285
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 10 m310102828
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
Description
The MV-ACXP6-DIN(up)-DIN-HF-10m data cable from HIKROBOT is, at 10 m, the longest version of its series. It transmits the data of industrial cameras with a CoaXPress interface and, as a high-flex CXP-6 data cable, is designed for drag chains. End A has a straight DIN 1.0/2.3 connector, end B an angled one.
Technical data
The coaxial cable is 10 m long and has a black PVC jacket. The minimum bending radius is 60 mm; for U-shaped bending HIKROBOT specifies up to 2 million cycles. The connectors are rated for 500 mating cycles; the maximum voltage is 300 VDC. HIKROBOT lists RoHS and UL as certifications. Each cable is individually packaged.
Operating conditions
The permissible operating temperature ranges from -30 °C to 80 °C. The minimum bending radius of 60 mm also applies at the deflection of the drag chain.
Applications and selection
At 10 m the cable suits long travel paths, for example on gantry axes, or a control cabinet away from the machine; excess length belongs in the fixed part of the routing, not in the chain. Because the cable does not exit in the mating direction at the angled connector, it needs less space behind the port. The number of bending cycles is limited, so on axes with a high cycle rate the cable belongs in the maintenance schedule as a wear part. The MV-ACXP6-DIN(up)-DIN-HF series comes in 1.5 m, 3 m, 5 m, 8 m and 10 m. We are glad to help with choosing length, connector position and cable routing; requests go through the inquiry basket.
