HIKROBOT

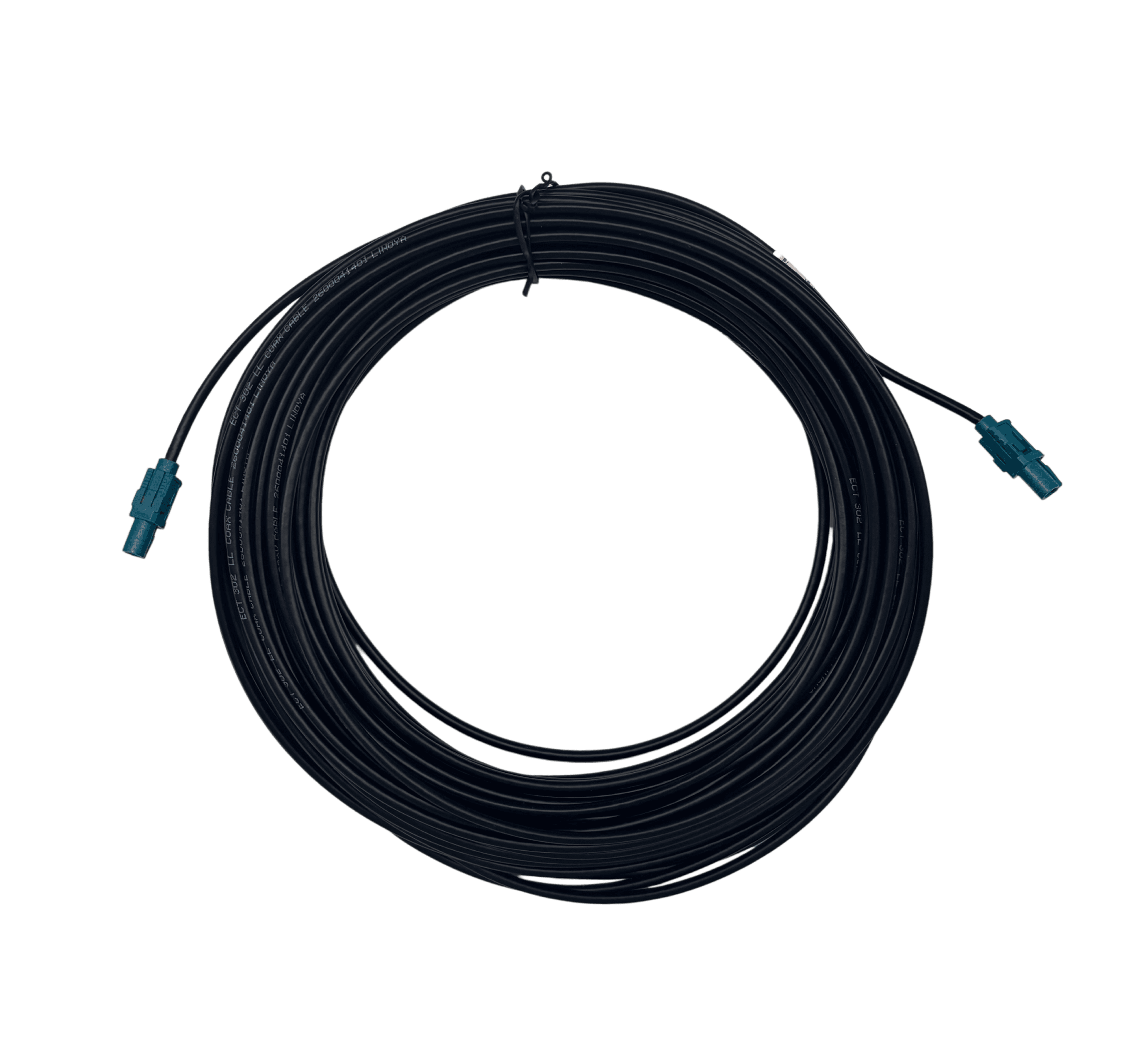

Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m
Manufacturer part number: 310103198
- Accessory type
- Data cable
- Interface / system
- XoCLink
- Length
- 10 m
- Connector A
- Mini-FAKRA, Z-code
- Connector B
- Mini-FAKRA, Z-code
- Flexibility
- Standard
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310103198 |
|---|---|
| Type | Mini-FAKRA Standard Coaxial Data Cable |
| Applicable product | Hikrobot CT Series XoCLink Area Scan Cameras |
| End A connector | Mini-FAKRA, Z-code |
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 3.3 mm ± 0.2 mm |
| Length | 10 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 39.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 60 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet Standard XoCLink Datenkabel (Mini-FAKRA-Mini-FAKRA), 10 m
Datasheet · EN · 441 KB
More HIKROBOT products in this category
- High-flex CXP-6 data cable (DIN-DIN angled), 8 m310102285
- High-flex CXP-6 data cable (DIN-DIN angled), 10 m310102690
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 10 m310102828
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 15 m310103200
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 3 m310103211
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 1 m310103212
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 7 m310103213
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 20 m310103281
Description
The HIKROBOT MV-ACC-mFM-mFM-ST-10m XoCLink data cable is a coaxial cable in the standard version with a length of 10 m and Mini-FAKRA connectors at both ends. HIKROBOT specifies it for CT series XoCLink area scan cameras. The length suits larger machines in which the camera and the device at the other end are farther apart, for example between the inspection point and the control cabinet.
Technical data
Z-coded Mini-FAKRA connectors sit at both ends. The diameter is 3.3 mm ± 0.2 mm, and the minimum bending radius is 39.6 mm. The jacket is made of PVC, and its color is black. The cable is rated for a maximum of 60 VDC; according to HIKROBOT, it is RoHS compliant, and it is delivered individually packaged.
Operating conditions
The operating temperature may be between -20 °C and 80 °C. HIKROBOT names static applications as the scope, meaning a fixed installation without movement during operation.
Applications and selection
If the cable route passes over moving assemblies or through a drag chain, this standard version is not the intended choice. The MV-ACC-mFM-mFM-ST series comes in 1, 3, 5, 7, 10 and 15 m. The 7 and 15 m versions have the same diameter and bending radius as this cable; the lengths up to 5 m are thinner. At 10 m it pays to measure the cable route beforehand and include the bends, so that the cable is neither under tension nor stowed in large loops. The CT series XoCLink area scan cameras are listed in the catalog under XoCLink. We are glad to help with planning the camera and cable route; requests go through the inquiry basket.
