HIKROBOT

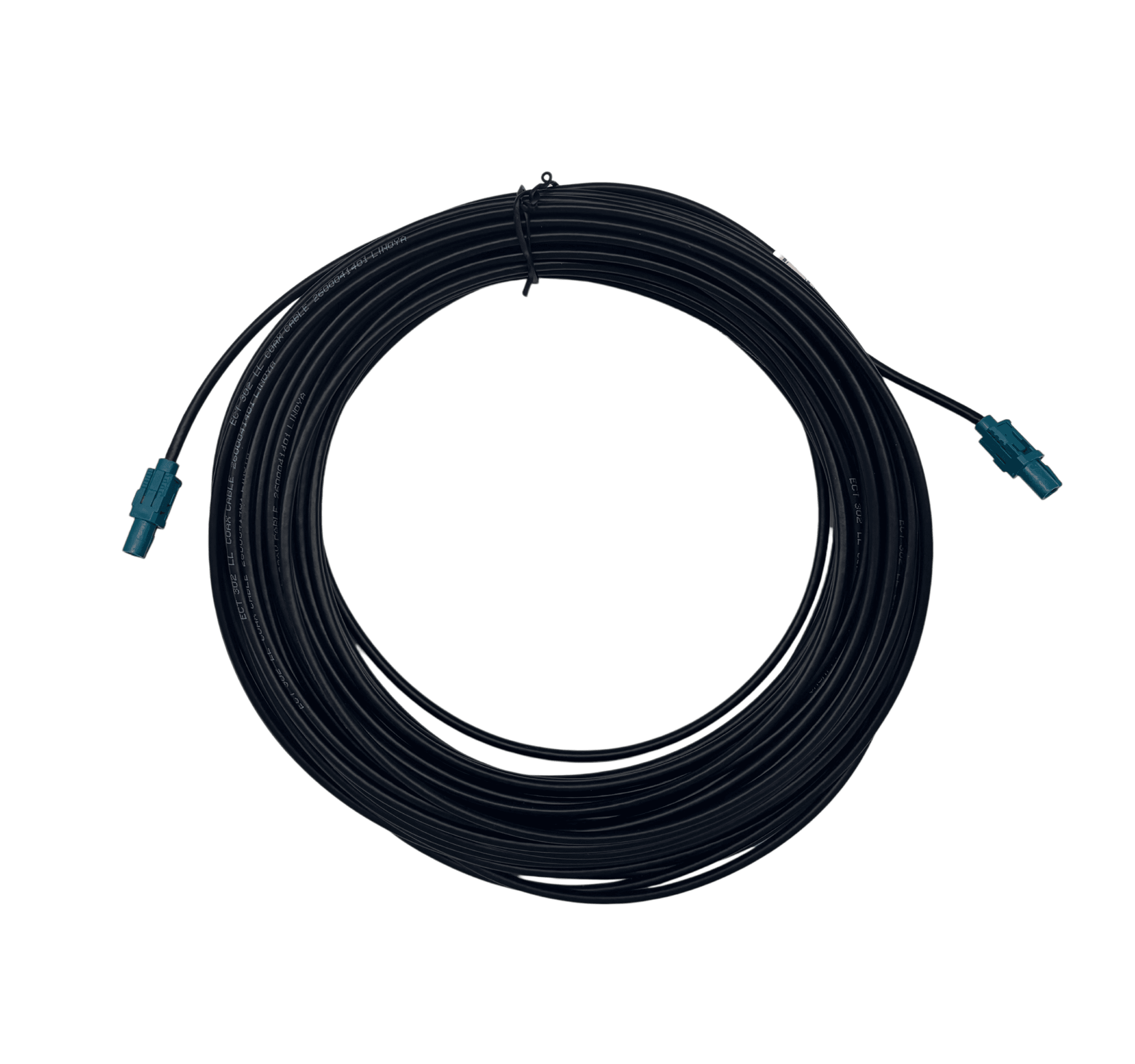

Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 7 m
Manufacturer part number: 310103213
- Accessory type
- Data cable
- Interface / system
- XoCLink
- Length
- 7 m
- Connector A
- Mini-FAKRA, Z-code
- Connector B
- Mini-FAKRA, Z-code
- Flexibility
- Standard
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310103213 |
|---|---|
| Type | Mini-FAKRA Standard Coaxial Data Cable |
| Applicable product | Hikrobot CT Series XoCLink Area Scan Cameras |
| End A connector | Mini-FAKRA, Z-code |
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 3.3 mm ± 0.2 mm |
| Length | 7 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 39.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 60 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

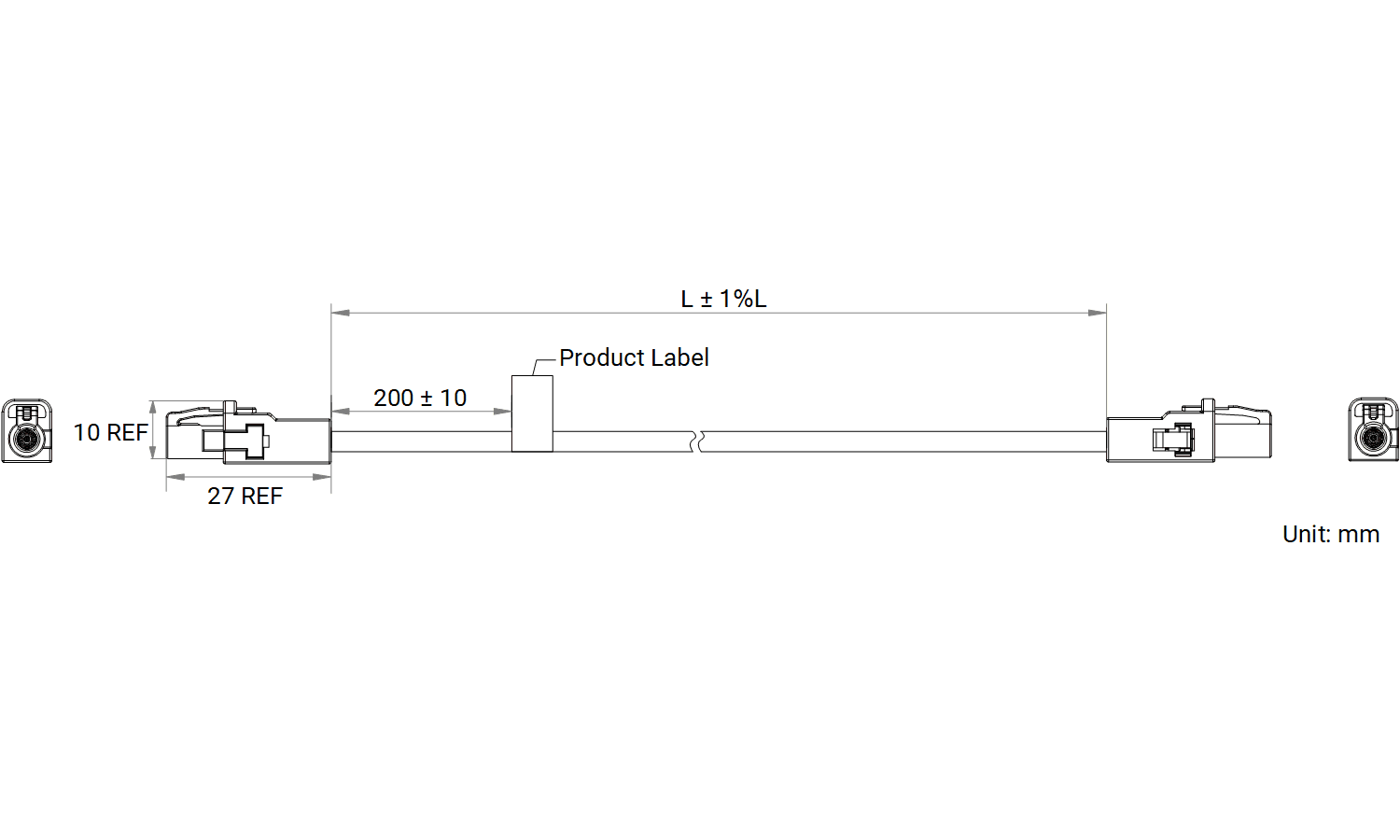

Dimensional drawing
Documents
- Download datasheet
Datasheet Standard XoCLink Datenkabel (Mini-FAKRA-Mini-FAKRA), 7 m
Datasheet · EN · 441 KB
More HIKROBOT products in this category
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 15 m310103200
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 3 m310103211
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 1 m310103212
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 20 m310103281
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 3 m310103282
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 5 m310103283
- Power cord Argentina - C13 (1,5 m)AC power cables_ARG_S3p_C13_1.5m
- Power cord Brazil - C13 (1,5 m)AC power cables_BRA_S3p_C13_1.5m
- Power cord Europe (Schuko) - C13 (1,5 m)AC power cables_EUR_E2p_C13_1.5
Description
The HIKROBOT MV-ACC-mFM-mFM-ST-7m data cable is a 7 m coaxial cable with Mini-FAKRA connectors at both ends, specified for CT series XoCLink area scan cameras. With this length the thicker design starts in the series: the cable has a diameter of 3.3 mm, while the lengths up to 5 m are thinner.
Technical data
Both connectors are of the Mini-FAKRA type with Z coding. The cable diameter is 3.3 mm ± 0.2 mm, and the minimum bending radius is 39.6 mm. The jacket is black PVC. The maximum voltage is 60 VDC. According to HIKROBOT, the cable is RoHS compliant; it ships individually packaged.
Operating conditions
The permissible operating temperature range is -20 °C to 80 °C. HIKROBOT names static applications as the scope; the cable is installed in a fixed position.
Applications and selection
This standard version is not intended for drag chains or moving axes. The MV-ACC-mFM-mFM-ST series comes in 1, 3, 5, 7, 10 and 15 m. If 5 m is too short, this cable is the next step. Because of the larger bending radius of 39.6 mm, it needs more room in cable ducts, at edges and in feedthroughs than the shorter versions; this belongs in the planning of the cable route. The CT series XoCLink area scan cameras are listed in the catalog under XoCLink. We are glad to help with the layout of camera and cable route; requests go through the inquiry basket.
