HIKROBOT

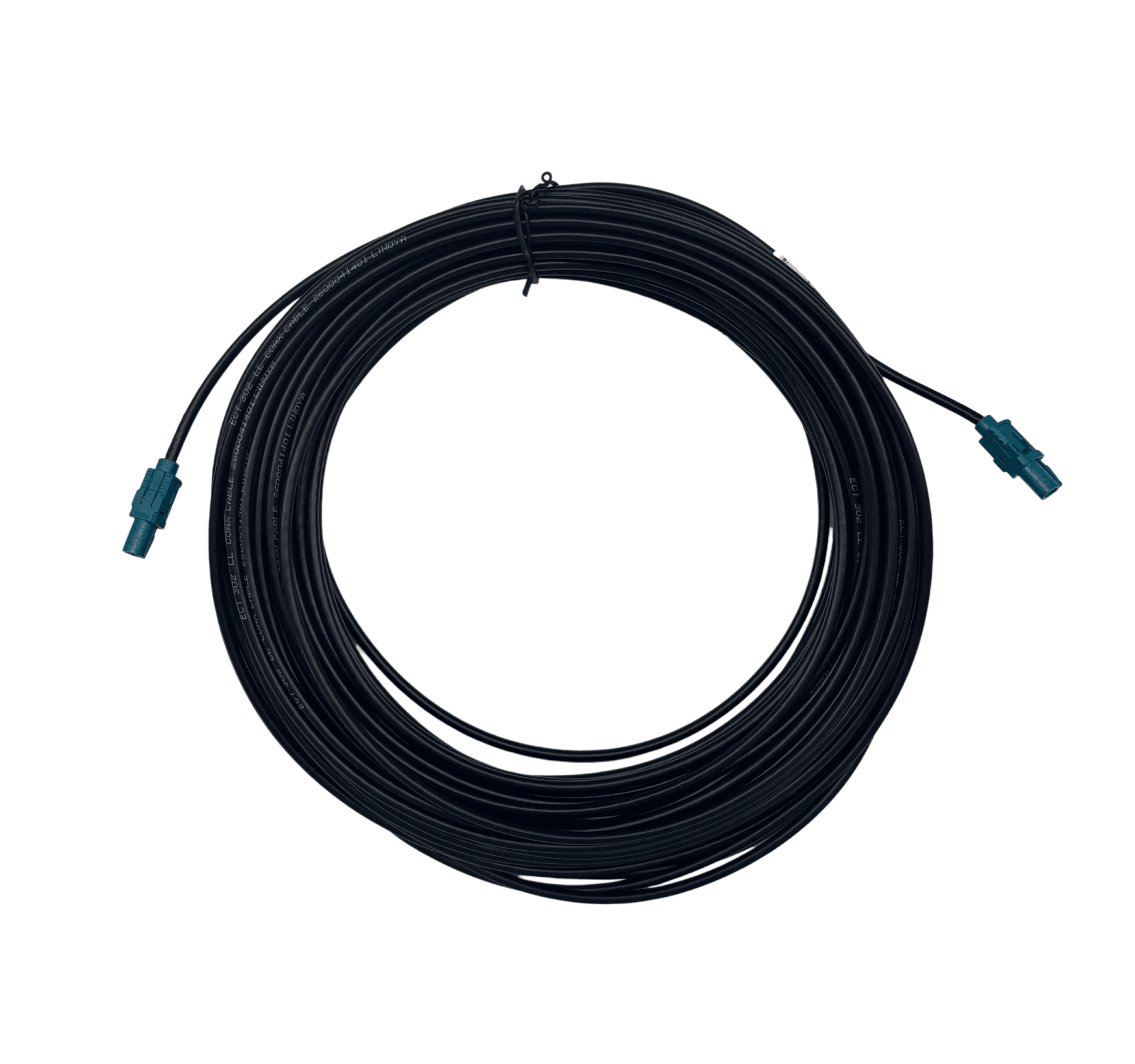

Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m
Manufacturer part number: 310103199
- Accessory type
- Data cable
- Interface / system
- XoCLink
- Length
- 5 m
- Connector A
- Mini-FAKRA, Z-code
- Connector B
- Mini-FAKRA, Z-code
- Flexibility
- Standard
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310103199 |
|---|---|
| Type | Mini-FAKRA Standard Coaxial Data Cable |
| Applicable product | Hikrobot CT Series XoCLink Area Scan Cameras |
| End A connector | Mini-FAKRA, Z-code |
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 2.8 mm ± 0.2 mm |
| Length | 5 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 33.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 60 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

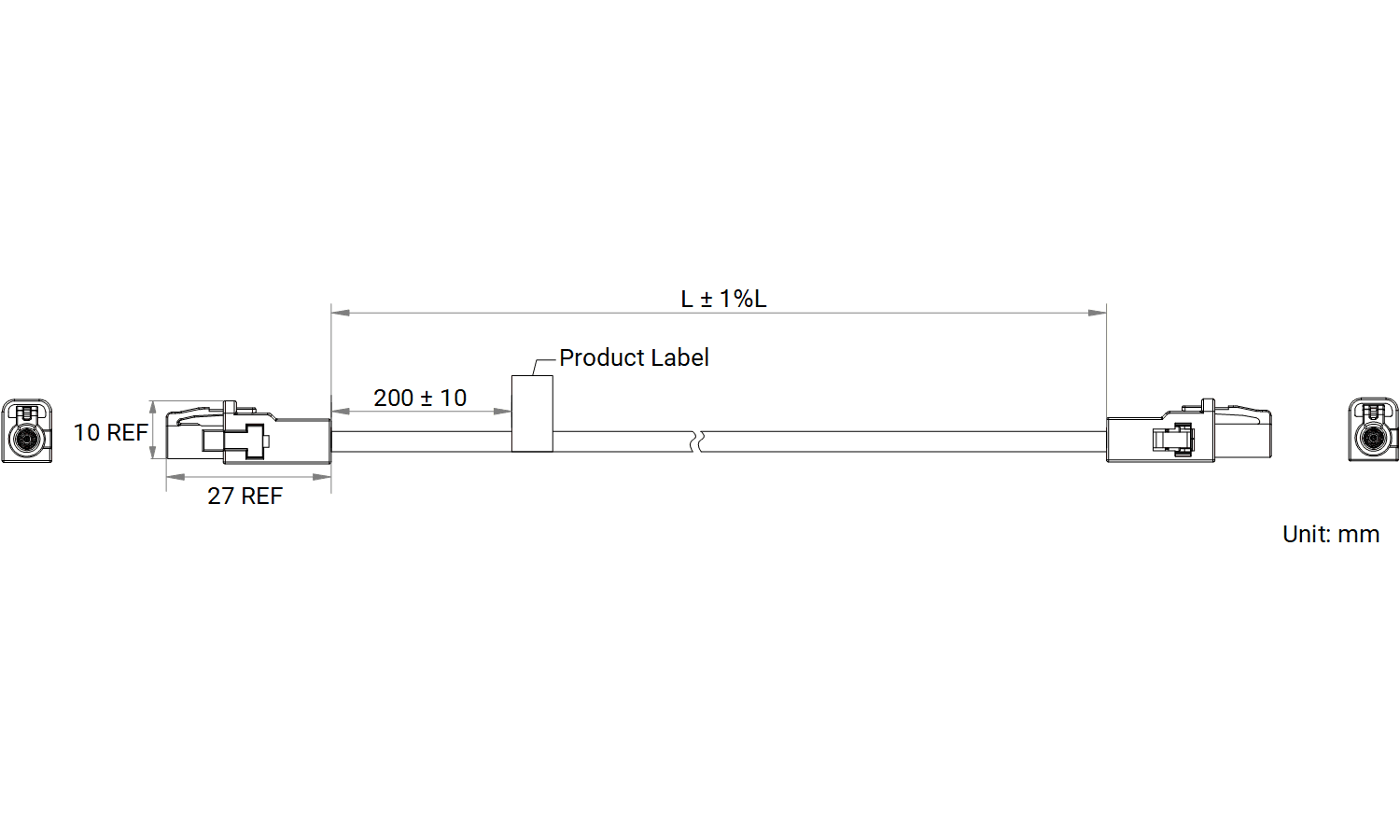

Dimensional drawing
Documents
- Download datasheet
Datasheet Standard XoCLink Datenkabel (Mini-FAKRA-Mini-FAKRA), 5 m
Datasheet · EN · 441 KB
More HIKROBOT products in this category
- High-flex CXP-6 data cable (DIN-DIN angled), 10 m310102690
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 10 m310102828
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 15 m310103200
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 3 m310103211
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 1 m310103212
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 7 m310103213
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 20 m310103281
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 3 m310103282
Description
The HIKROBOT MV-ACC-mFM-mFM-ST-5m XoCLink data cable is a coaxial cable in the standard version with a length of 5 m and Mini-FAKRA connectors at both ends. HIKROBOT specifies it for CT series XoCLink area scan cameras. It is the longest version in the series with the thinner cable diameter of 2.8 mm.
Technical data
Both ends have Z-coded Mini-FAKRA connectors. The diameter is 2.8 mm ± 0.2 mm, and the minimum bending radius is 33.6 mm. The black jacket is made of PVC. The maximum voltage is 60 VDC. According to HIKROBOT, the cable is RoHS compliant; it ships individually packaged.
Operating conditions
The operating temperature range is -20 °C to 80 °C. According to HIKROBOT, the cable is intended for static applications, meaning a fixed installation.
Applications and selection
Moving installation in drag chains or on robot axes is outside this scope. The MV-ACC-mFM-mFM-ST series comes in 1, 3, 5, 7, 10 and 15 m. With 5 m, the camera and the device at the other end can be placed on different sides of an inspection station, for example. If you need more than 5 m, move to the versions from 7 m; these are thicker and need a larger bending radius, which has to be taken into account in narrow cable ducts and feedthroughs. The CT series XoCLink area scan cameras are listed in the catalog under XoCLink. We are glad to help you choose the camera and cable length; requests go through the inquiry basket.
