HIKROBOT
Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 15 m
Manufacturer part number: 310103200
- Accessory type
- Data cable
- Interface / system
- XoCLink
- Length
- 15 m
- Connector A
- Mini-FAKRA, Z-code
- Connector B
- Mini-FAKRA, Z-code
- Flexibility
- Standard
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310103200 |
|---|---|
| Type | Mini-FAKRA Standard Coaxial Data Cable |
| Applicable product | Hikrobot CT Series XoCLink Area Scan Cameras |
| End A connector | Mini-FAKRA, Z-code |
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 3.3 mm ± 0.2 mm |
| Length | 15 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 39.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 60 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

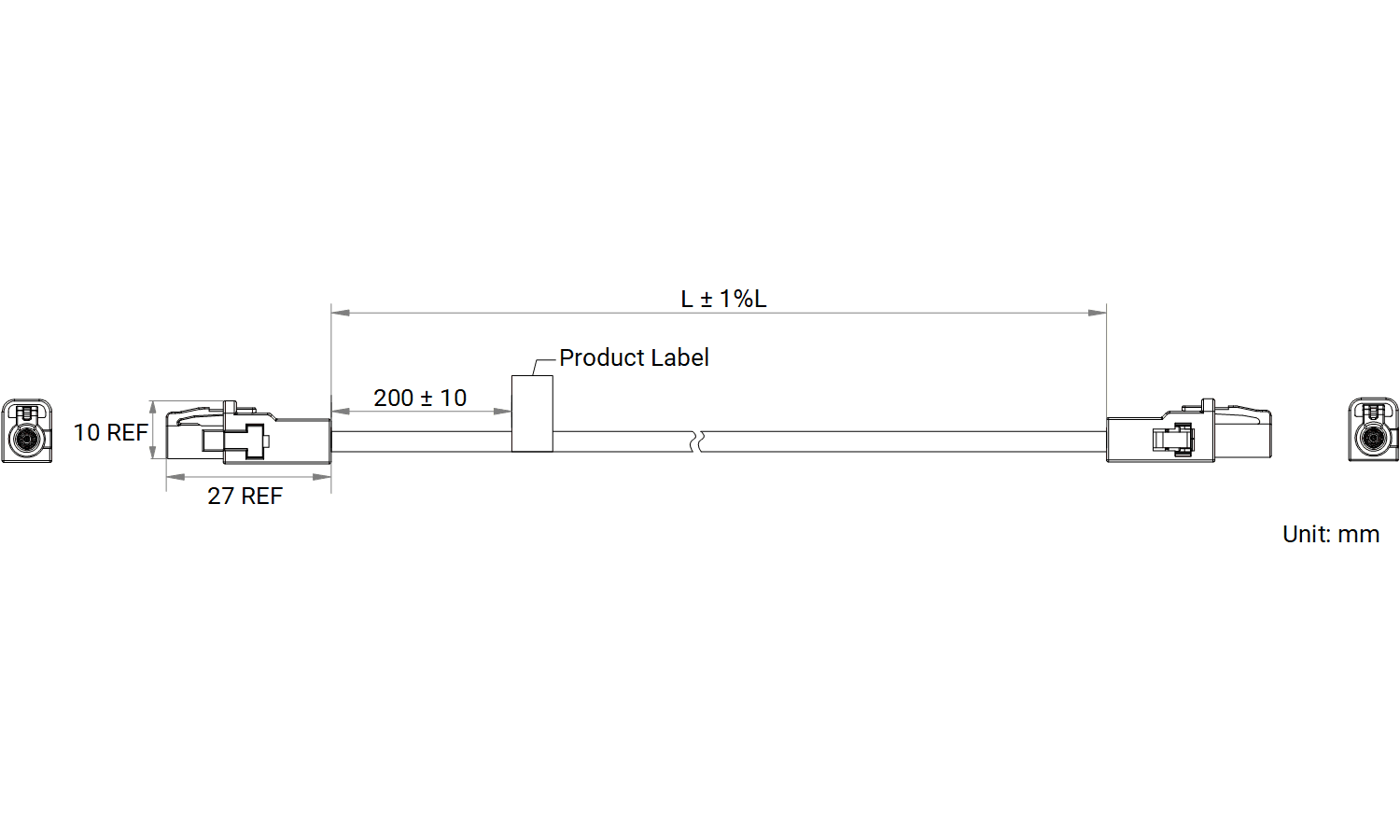

Dimensional drawing
Documents
- Download datasheet
Datasheet Standard XoCLink Datenkabel (Mini-FAKRA-Mini-FAKRA), 15 m
Datasheet · EN · 441 KB
More HIKROBOT products in this category
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 10 m310102828
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 3 m310103211
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 1 m310103212
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 7 m310103213
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 20 m310103281
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 3 m310103282
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 5 m310103283
Description

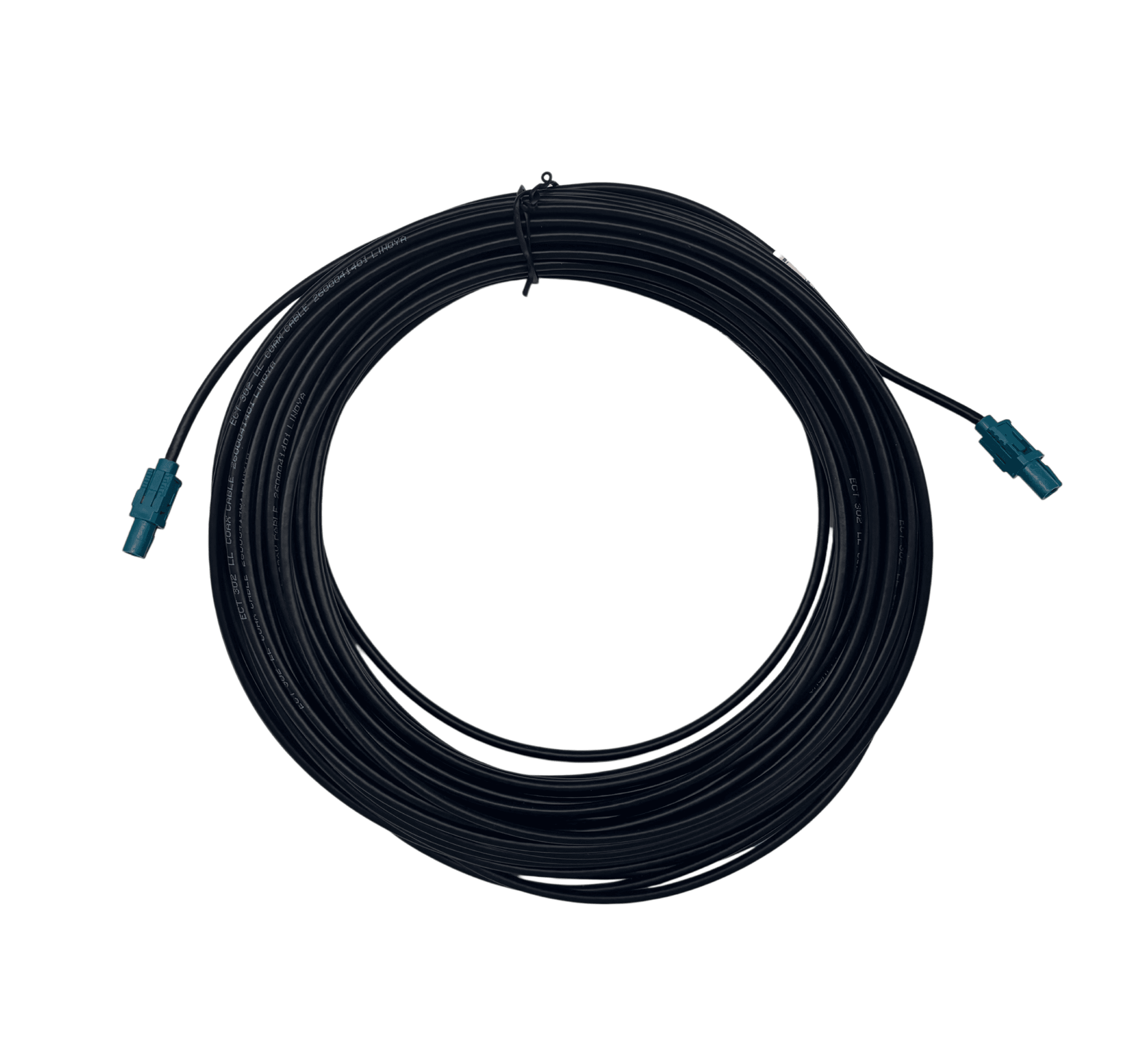

The HIKROBOT MV-ACC-mFM-mFM-ST-15m data cable is a 15 m coaxial cable with Mini-FAKRA connectors at both ends, specified for CT series XoCLink area scan cameras. It is the longest version in the series and suits machines in which the camera is mounted far from the device at the other end.
Technical data
Both ends carry Z-coded Mini-FAKRA connectors. The cable has a diameter of 3.3 mm ± 0.2 mm and a minimum bending radius of 39.6 mm; the jacket is black PVC. The maximum voltage is 60 VDC. According to HIKROBOT, the cable is RoHS compliant; it ships individually packaged.
Operating conditions
The permissible operating temperature range is -20 °C to 80 °C. HIKROBOT specifies the cable for static applications, so it is installed in a fixed position.
Applications and selection
It is not intended for drag chains and moving axes, and this series has no version longer than 15 m. The MV-ACC-mFM-mFM-ST series comes in 1, 3, 5, 7, 10 and 15 m. The 7 and 10 m versions have the same diameter as this cable; the lengths up to 5 m are thinner. If the full length is not needed, check the 10 m version instead of laying excess cable in loops. The CT series XoCLink area scan cameras are listed in the catalog under XoCLink. We are glad to help with planning the camera and cable route; requests go through the inquiry basket.
