HIKROBOT

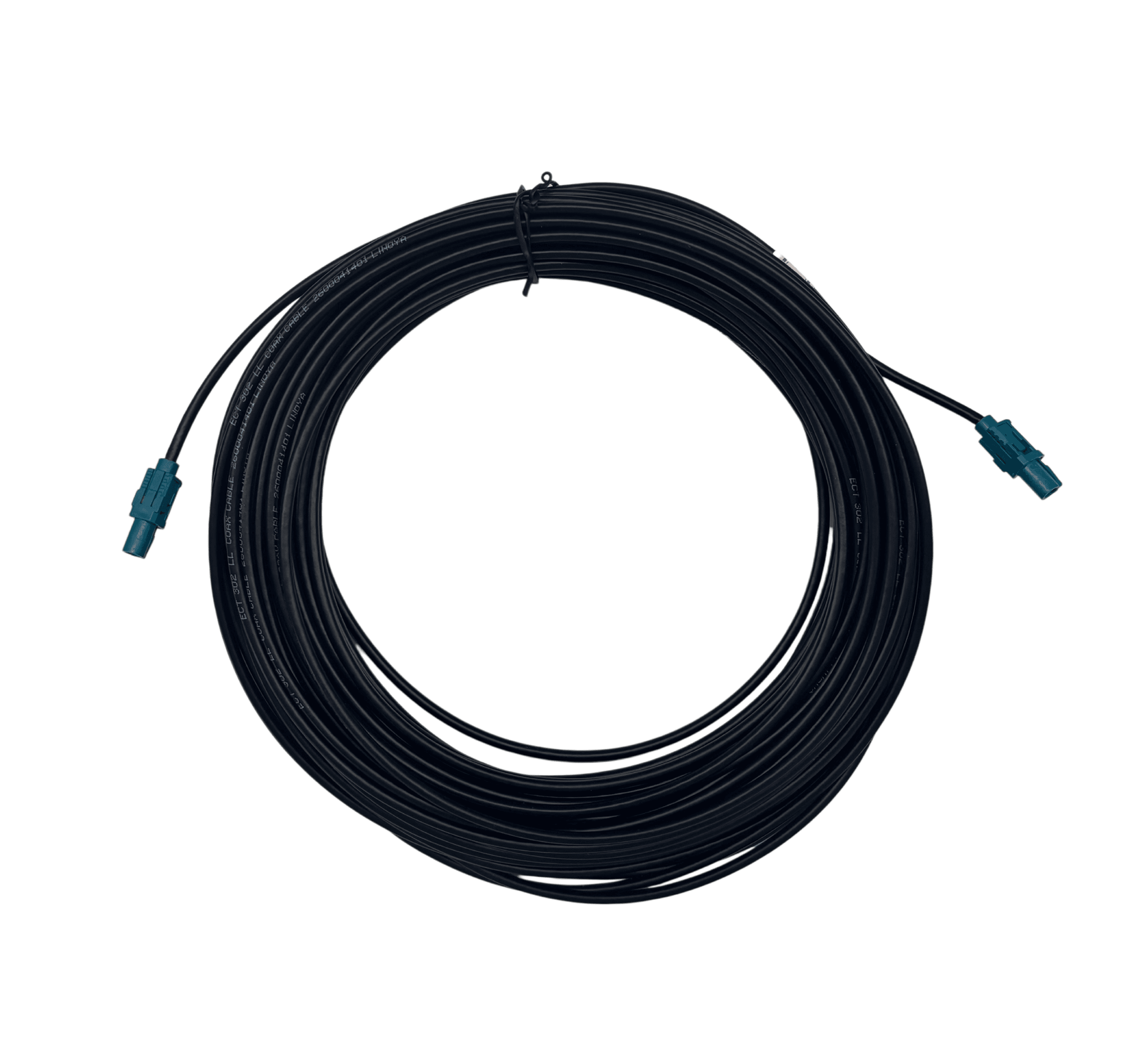

Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 3 m
Manufacturer part number: 310103211
- Accessory type
- Data cable
- Interface / system
- XoCLink
- Length
- 3 m
- Connector A
- Mini-FAKRA, Z-code
- Connector B
- Mini-FAKRA, Z-code
- Flexibility
- Standard
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310103211 |
|---|---|
| Type | Mini-FAKRA Standard Coaxial Data Cable |
| Applicable product | Hikrobot CT Series XoCLink Area Scan Cameras |
| End A connector | Mini-FAKRA, Z-code |
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 2.8 mm ± 0.2 mm |
| Length | 3 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 33.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 60 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

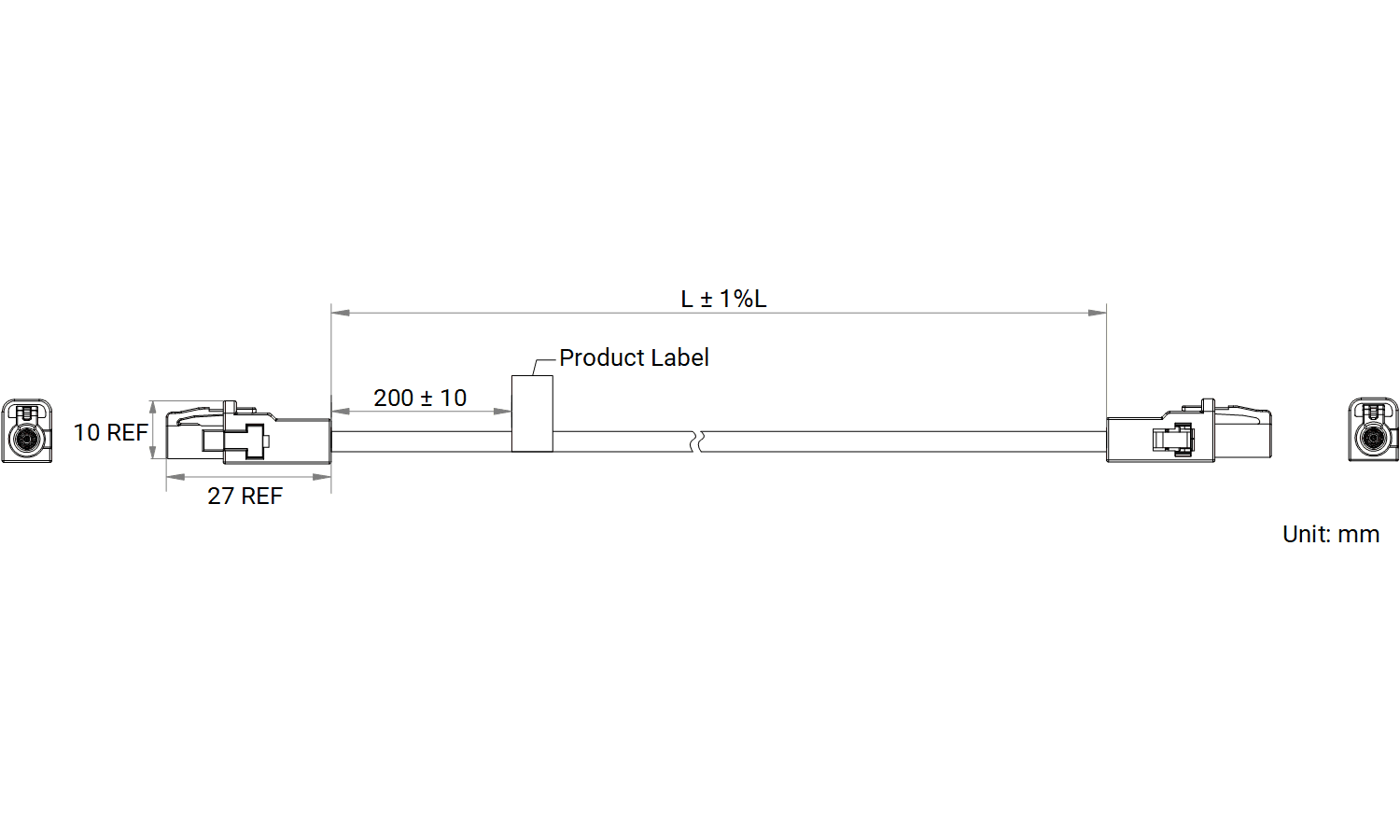

Dimensional drawing
Documents
- Download datasheet
Datasheet Standard XoCLink Datenkabel (Mini-FAKRA-Mini-FAKRA), 3 m
Datasheet · EN · 441 KB
More HIKROBOT products in this category
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 15 m310103200
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 1 m310103212
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 7 m310103213
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 20 m310103281
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 3 m310103282
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 5 m310103283
- Power cord Argentina - C13 (1,5 m)AC power cables_ARG_S3p_C13_1.5m
Description
The HIKROBOT MV-ACC-mFM-mFM-ST-3m data cable is a 3 m coaxial cable with Mini-FAKRA connectors at both ends, specified for CT series XoCLink area scan cameras. The length suits setups in which the camera sits on a mount above the inspection station and the device at the other end is located nearby.
Technical data
Each end carries a Z-coded Mini-FAKRA connector. The cable diameter is 2.8 mm ± 0.2 mm, and the minimum bending radius is 33.6 mm. The jacket is black and made of PVC. The cable is rated for a maximum of 60 VDC and, according to HIKROBOT, is RoHS compliant; each cable is individually packaged.
Operating conditions
The cable may be operated at -20 °C to 80 °C. HIKROBOT names static applications as the scope, so the cable belongs in a fixed installation.
Applications and selection
Where the cable moves during operation, for example in a drag chain or on a robot axis, this standard version is not the intended choice. The MV-ACC-mFM-mFM-ST series comes in 1, 3, 5, 7, 10 and 15 m. The 1 and 5 m versions have the same diameter as this cable; from 7 m the cables are thicker and need a larger bending radius. The length should cover the route through the cable duct including all bends; at edges and feedthroughs the bending radius must not fall below 33.6 mm. The CT series XoCLink area scan cameras are listed in the catalog under XoCLink. We are glad to help you choose the camera, lens and cable length; requests go through the inquiry basket.
