HIKROBOT
Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 1 m
Manufacturer part number: 310103212
- Accessory type
- Data cable
- Interface / system
- XoCLink
- Length
- 1 m
- Connector A
- Mini-FAKRA, Z-code
- Connector B
- Mini-FAKRA, Z-code
- Flexibility
- Standard
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310103212 |
|---|---|
| Type | Mini-FAKRA Standard Coaxial Data Cable |
| Applicable product | Hikrobot CT Series XoCLink Area Scan Cameras |
| End A connector | Mini-FAKRA, Z-code |
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 2.8 mm ± 0.2 mm |
| Length | 1 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 33.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 60 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

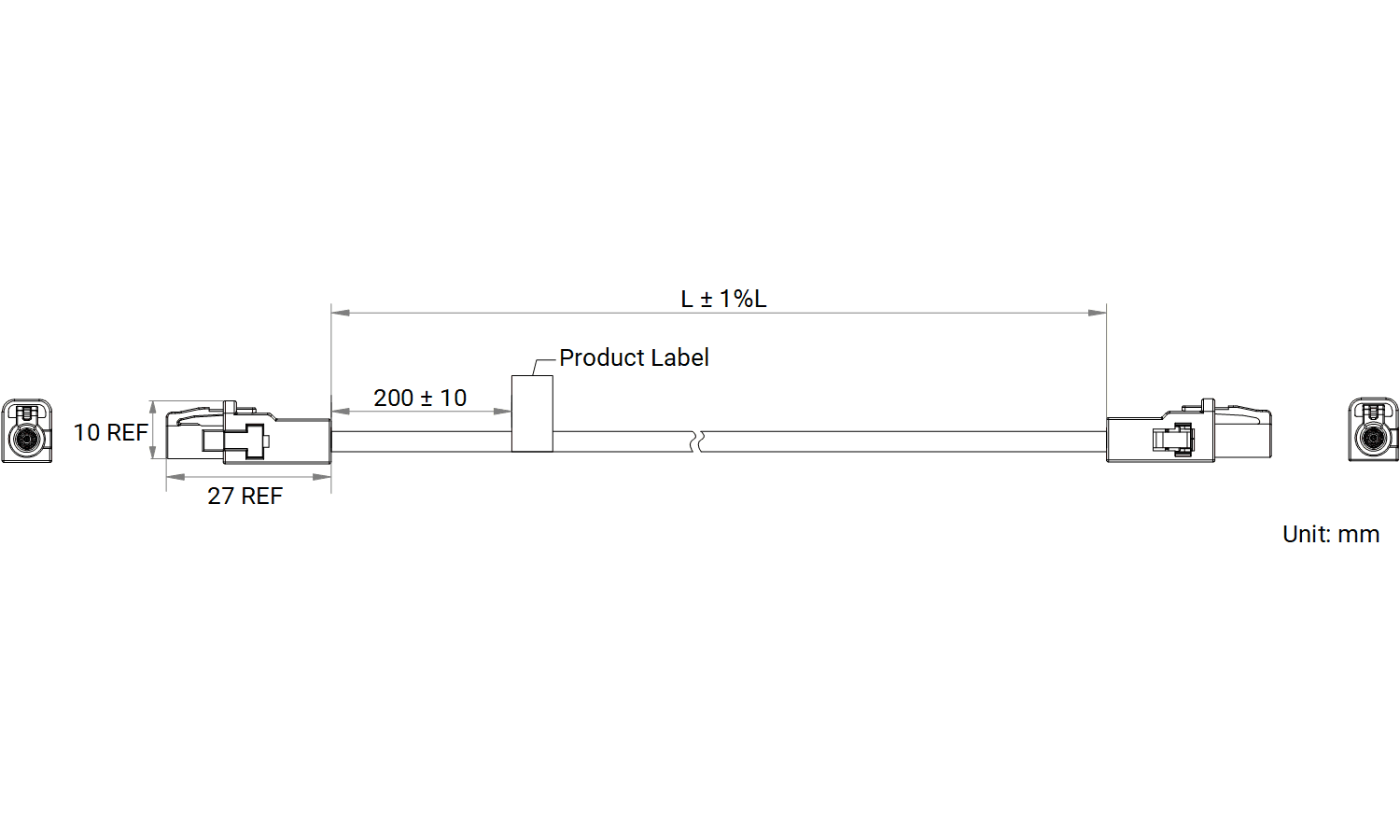

Dimensional drawing
Documents
- Download datasheet
Datasheet Standard XoCLink Datenkabel (Mini-FAKRA-Mini-FAKRA), 1 m
Datasheet · EN · 441 KB
More HIKROBOT products in this category
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 15 m310103200
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 3 m310103211
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 7 m310103213
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 20 m310103281
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 3 m310103282
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 5 m310103283
- Power cord Argentina - C13 (1,5 m)AC power cables_ARG_S3p_C13_1.5m
- Power cord Brazil - C13 (1,5 m)AC power cables_BRA_S3p_C13_1.5m
Description

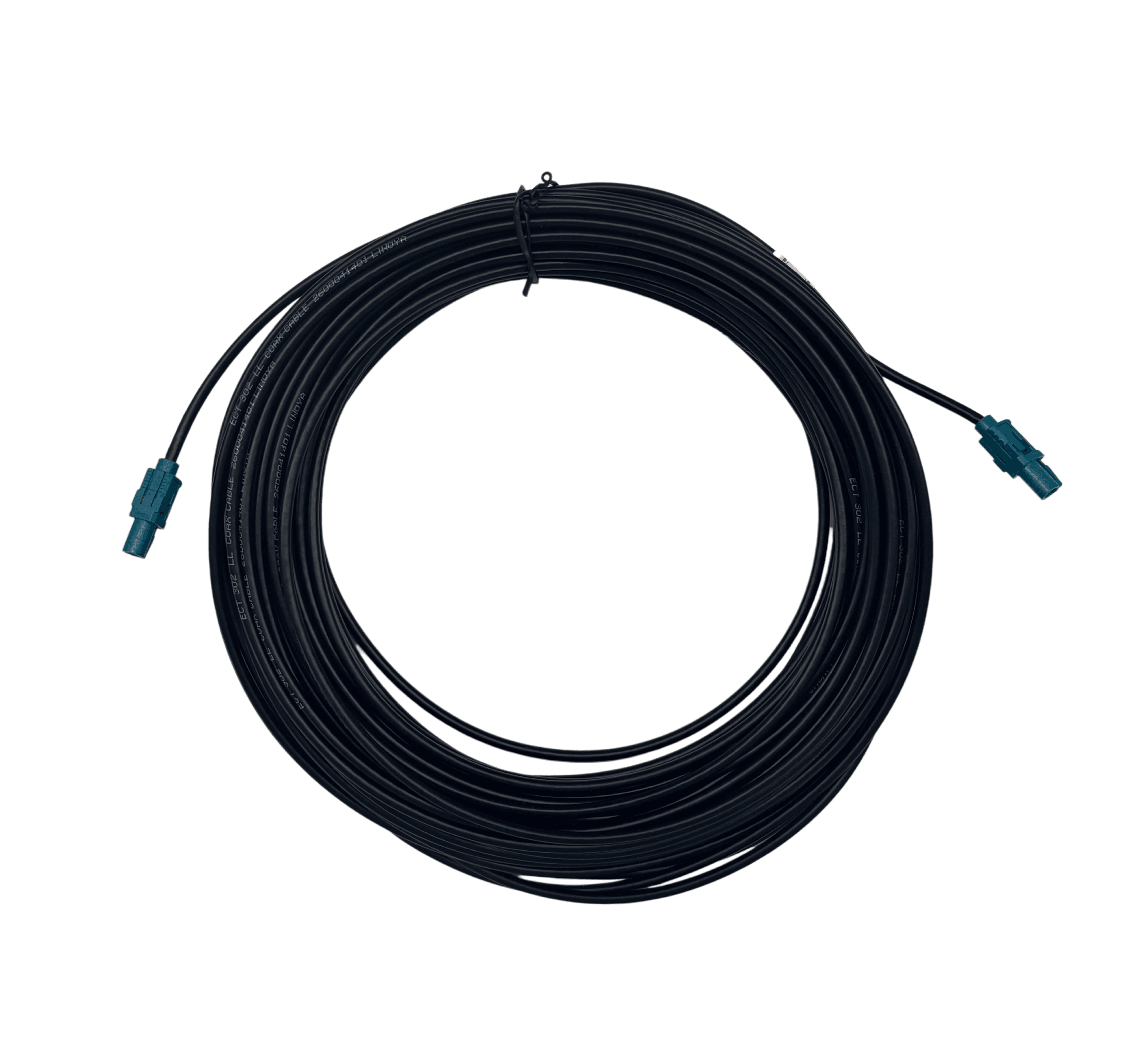

The HIKROBOT MV-ACC-mFM-mFM-ST-1m XoCLink data cable is a coaxial cable in the standard version with Mini-FAKRA connectors at both ends. HIKROBOT specifies it for CT series XoCLink area scan cameras. At 1 m it is the shortest version in the series and fits where the camera and the device at the other end sit close together, for example in a compact inspection cell.
Technical data
Both connectors are of the Mini-FAKRA type with Z coding. The cable is 1 m long and has a diameter of 2.8 mm ± 0.2 mm; the jacket is black PVC. The minimum bending radius is 33.6 mm, and the maximum voltage is 60 VDC. According to HIKROBOT, the cable is RoHS compliant, and it ships individually packaged.
Operating conditions
The permissible operating temperature ranges from -20 °C to 80 °C. HIKROBOT specifies static applications as the scope: the cable is installed in a fixed position and does not move during operation.
Applications and selection
This standard version is not intended for drag chains, robot arms or other moving assemblies. The MV-ACC-mFM-mFM-ST series comes in 1, 3, 5, 7, 10 and 15 m. The 3 and 5 m versions have the same diameter as this cable; from 7 m the cable is thicker and needs a larger bending radius. In tight installation spaces the short length helps because no excess cable has to be stowed in loops; the cable still needs its 33.6 mm bending radius. The CT series XoCLink area scan cameras are listed in the catalog under XoCLink. We are glad to help you choose the camera and cable length; requests go through the inquiry basket.
