HIKROBOT

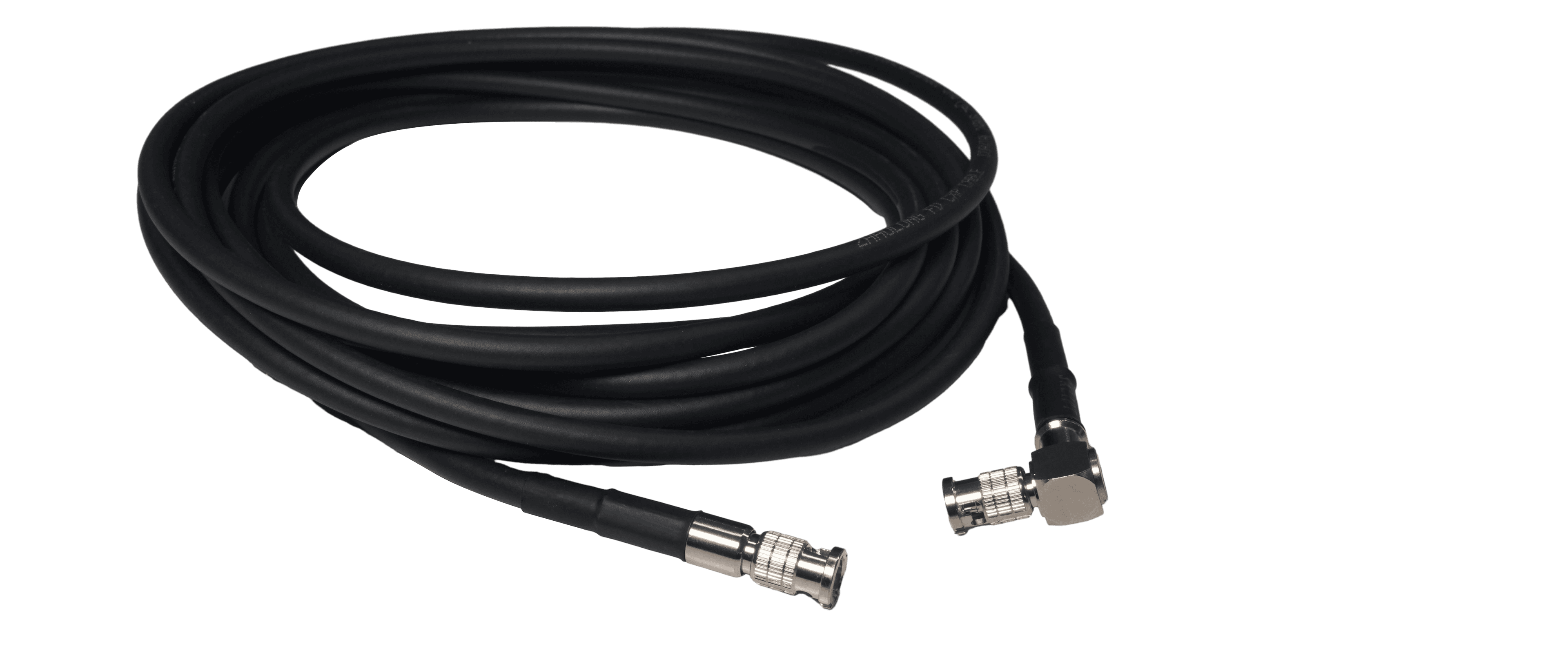

High-flex CXP-12 data cable (HDBNC-HDBNC angled), 4 m
Manufacturer part number: 310102203
- Accessory type
- Data cable
- Interface / system
- CoaxPress 12
- Length
- 4 m
- Connector A
- HD-BNC
- Connector B
- HD-BNC (angled)
- Flexibility
- Hochflex
- Connector orientation
- Winkel
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310102203 |
|---|---|
| Type | CXP-12 High-Flex Data Cable |
| End A connector | HD-BNC |
| End B connector | HD-BNC (angled) |
| Cable diameter | 5 mm |
| Length | 4 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 2 million times |
| Max. voltage | 300 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

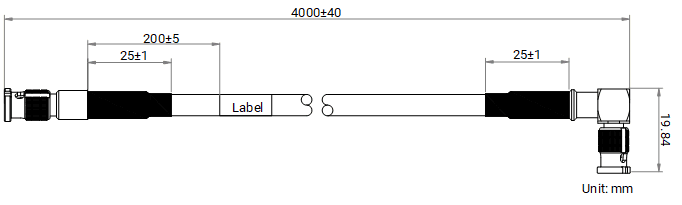

Dimensional drawing
Documents
- Download datasheet
Datasheet Hochflex CXP-12 Datenkabel (HDBNC-HDBNC Winkel), 4 m
Datasheet · EN · 805 KB
More HIKROBOT products in this category
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 3 m310102202
- High-flex CXP-6 data cable (DIN-DIN angled), 1.5 m310102282
- High-flex CXP-6 data cable (DIN-DIN angled), 3 m310102283
- High-flex CXP-6 data cable (DIN-DIN angled), 5 m310102284
- High-flex CXP-6 data cable (DIN-DIN angled), 8 m310102285
- High-flex CXP-6 data cable (DIN-DIN angled), 10 m310102690
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 10 m310102828
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
Description
The MV-ACXP12-HDBNC(up)-HDBNC-HF-4m data cable from HIKROBOT is a 4 m high-flex cable for CoaXPress links of the CXP-12 class between camera and frame grabber. It is designed for drag chains; end A carries an HD-BNC connector, end B an angled HD-BNC connector.
Technical data
The coaxial cable measures 5 mm in diameter, and the jacket is made of black PVC. HIKROBOT specifies 500 mating cycles for the connectors and RoHS as the certification. Each cable is individually packaged.
Operating conditions
In the drag chain the cable is rated for up to 2 million U-type bending cycles, at a bending radius of at least 60 mm. The voltage must stay at or below 300 VDC. The working temperature range extends from -20 °C to 80 °C.
Applications and selection
The MV-ACXP12-HDBNC(up)-HDBNC-HF series comes in 3, 4 and 10 m. The 4 m version is the intermediate step for systems where the shortest version gets tight, for example because the drag chain needs a longer loop for the travel path. The angled connector makes sense where the cable has to leave the socket sideways right away. One limit is the 500 mating cycles: at test stations where cameras are re-plugged often, this has to be planned for. The cable provides one CoaXPress link; a camera with several CoaXPress ports needs one cable per port. Without an angled connector, the MV-ACXP12-HDBNC-HDBNC-HF series is available; the HIKROBOT MV-GY1004 frame grabber has HD-BNC ports for CXP-12. We are glad to advise on cable length, camera and frame grabber; requests go through the inquiry basket.
