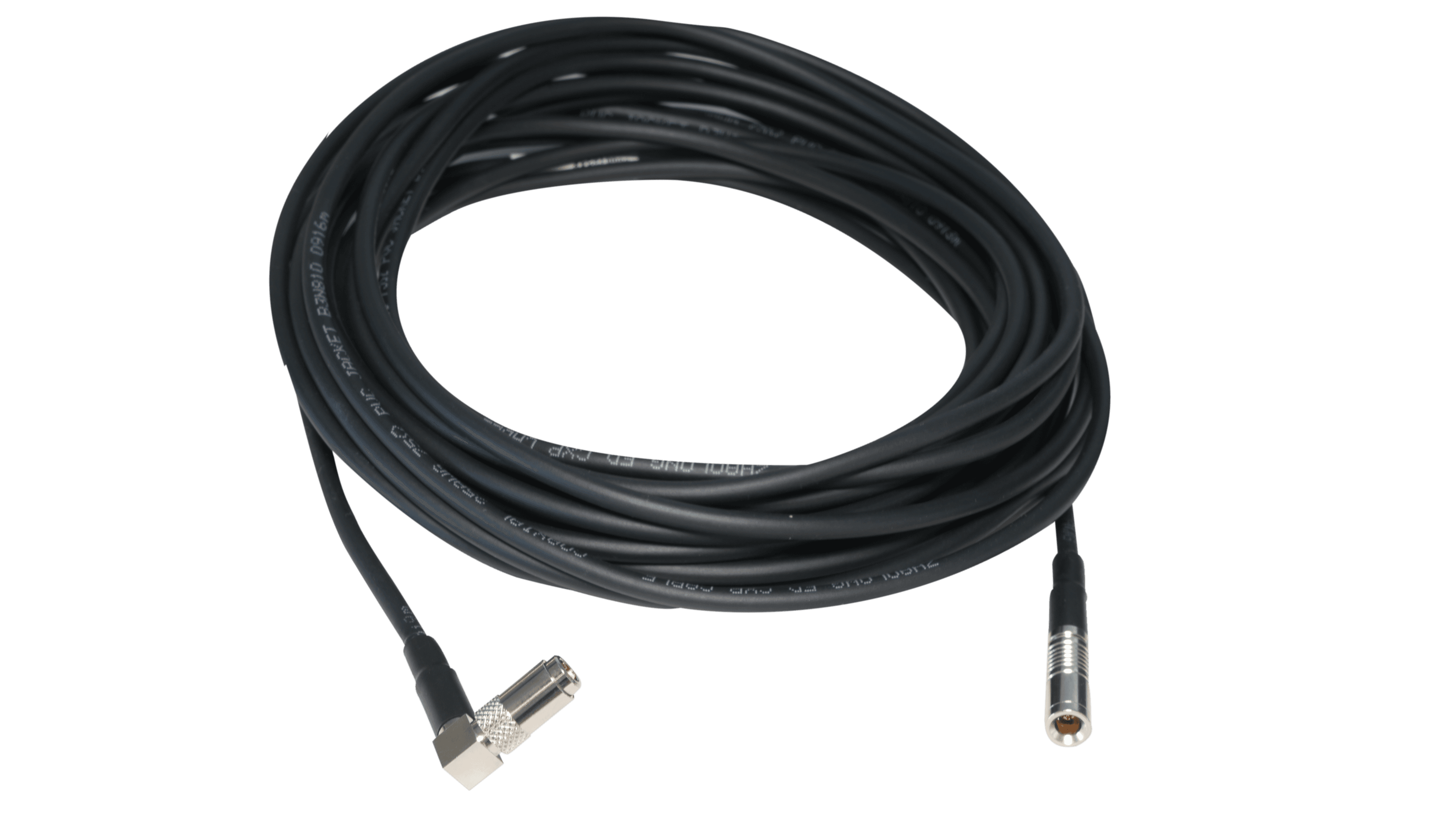

High-flex CXP-6 data cable (DIN-DIN angled), 5 m
Manufacturer part number: 310102284
- Accessory type
- Data cable
- Interface / system
- CoaxPress 6
- Length
- 5 m
- Connector A
- DIN 1.0/2.3
- Connector B
- DIN 1.0/2.3 (angled)
- Flexibility
- Hochflex
- Connector orientation
- Winkel
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310102284 |
|---|---|
| Type | CXP-6 High-Flex Data Cable |
| End A connector | DIN 1.0/2.3 |
| End B connector | DIN 1.0/2.3 (angled) |
| Cable diameter | 5 mm |
| Length | 5 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 2 million times |
| Max. voltage | 300 VDC |
| Working temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

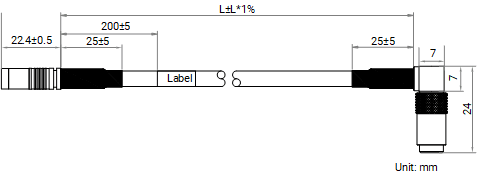

Dimensional drawing
Documents
- Download datasheet
Datasheet Hochflex CXP-6 Datenkabel (DIN-DIN Winkel), 5 m
Datasheet · EN · 437 KB
More HIKROBOT products in this category
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 3 m310102202
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 4 m310102203
- High-flex CXP-6 data cable (DIN-DIN angled), 1.5 m310102282
- High-flex CXP-6 data cable (DIN-DIN angled), 3 m310102283
- High-flex CXP-6 data cable (DIN-DIN angled), 8 m310102285
- High-flex CXP-6 data cable (DIN-DIN angled), 10 m310102690
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 10 m310102828
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
Description
The MV-ACXP6-DIN(up)-DIN-HF-5m data cable from HIKROBOT is intended for industrial cameras with a CoaXPress interface that travel on an axis: a high-flex CXP-6 data cable for drag chains. It has a straight DIN 1.0/2.3 connector at end A and an angled one at end B. At 5 m it sits in the middle of the series.
Technical data
The coaxial cable is 5 m long and has a diameter of 5 mm; its jacket is black PVC. HIKROBOT specifies a minimum bending radius of 60 mm and up to 2 million U-shaped bending cycles. The connectors are rated for 500 mating cycles; the maximum voltage is 300 VDC. HIKROBOT states RoHS and UL as certifications. Each cable is individually packaged.
Operating conditions
The permissible operating temperature is -30 °C to 80 °C. The drag chain must deflect the cable at a radius of at least 60 mm.
Applications and selection
The angled version fits when there is no room behind the port for a straight exit. At 5 m the cable covers runs within a machine when the chain travels a longer stroke or the control cabinet is not located directly at the axis. The number of bending cycles is limited, so on axes with a high cycle rate the cable belongs in the maintenance schedule as a wear part. The MV-ACXP6-DIN(up)-DIN-HF series comes in 1.5 m, 3 m, 5 m, 8 m and 10 m. We are glad to help with choosing length, connector position and cable routing; requests go through the inquiry basket.
