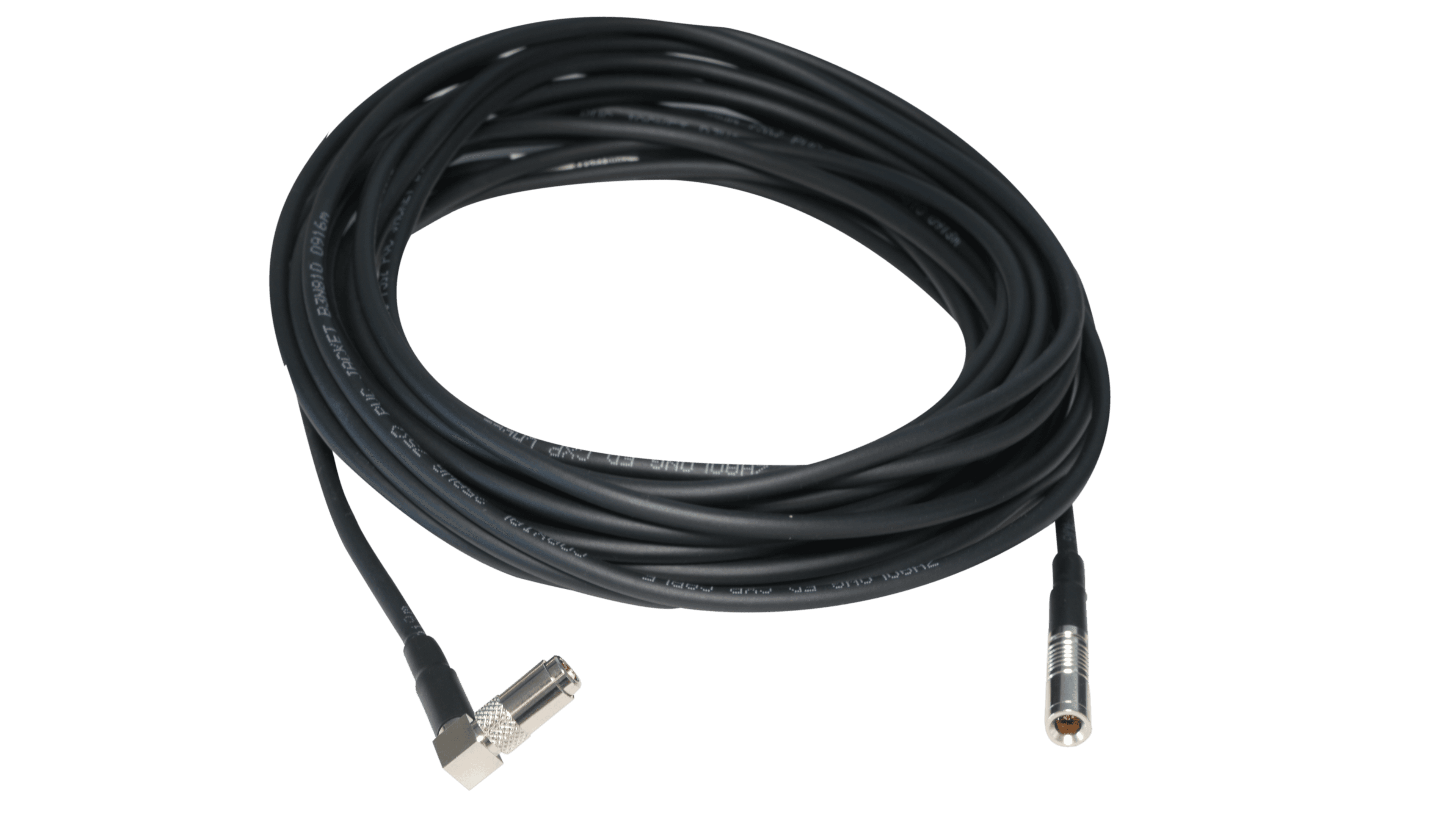

High-flex CXP-6 data cable (DIN-DIN angled), 3 m
Manufacturer part number: 310102283
- Accessory type
- Data cable
- Interface / system
- CoaxPress 6
- Length
- 3 m
- Connector A
- DIN 1.0/2.3
- Connector B
- DIN 1.0/2.3 (angled)
- Flexibility
- Hochflex
- Connector orientation
- Winkel
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | 310102283 |
|---|---|
| Type | CXP-6 High-Flex Data Cable |
| End A connector | DIN 1.0/2.3 |
| End B connector | DIN 1.0/2.3 (angled) |
| Cable diameter | 5 mm |
| Length | 3 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 2 million times |
| Max. voltage | 300 VDC |
| Working temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet Hochflex CXP-6 Datenkabel (DIN-DIN Winkel), 3 m
Datasheet · EN · 437 KB
More HIKROBOT products in this category
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 3 m310102202
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 4 m310102203
- High-flex CXP-6 data cable (DIN-DIN angled), 1.5 m310102282
- High-flex CXP-6 data cable (DIN-DIN angled), 5 m310102284
- High-flex CXP-6 data cable (DIN-DIN angled), 8 m310102285
- High-flex CXP-6 data cable (DIN-DIN angled), 10 m310102690
- High-flex CXP-12 data cable (HDBNC-HDBNC angled), 10 m310102828
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 7 m310103121
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 15 m310103122
- SuperFlex USB 3.0 data cable (Type-C-USB-A), 10 m310103123
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 10 m310103198
- Standard XoCLink data cable (Mini-FAKRA-Mini-FAKRA), 5 m310103199
Description
The MV-ACXP6-DIN(up)-DIN-HF-3m cable from HIKROBOT is a high-flex CXP-6 data cable for industrial cameras with a CoaXPress interface. It is designed for drag chains and moves along when the camera travels on an axis. End A has a straight DIN 1.0/2.3 connector, end B an angled one. At 3 m it is the second-shortest version of the series.
Technical data
The coaxial cable measures 3 m in length and 5 mm in diameter; the jacket is black PVC. The bending radius must not fall below 60 mm; HIKROBOT specifies up to 2 million U-shaped bending cycles. The connectors are rated for 500 mating cycles, the cable for a maximum voltage of 300 VDC. HIKROBOT lists RoHS and UL as certifications; each cable is packaged individually.
Operating conditions
The cable may be operated at temperatures from -30 °C to 80 °C. The bending radius of the drag chain must be at least 60 mm.
Applications and selection
At 3 m the cable is long enough for short axes where the control cabinet sits on the machine. The angled connector helps when there is no room behind the port for a straight exit. The number of bending cycles is limited, so on axes with a high cycle rate the cable should be planned as a wear part. The MV-ACXP6-DIN(up)-DIN-HF series comes in 1.5 m, 3 m, 5 m, 8 m and 10 m. We are glad to help with choosing length, connector position and cable routing; requests go through the inquiry basket.
