Panel PC MV-VT3700-128G40-NN

The MV-VT3700-128G40-NN panel PC from HIKROBOT is the top processor level of the VT3000 series. An Intel® Core™ i7-8700T computes with 8 GB of memory, complemented by a 128 GB SSD. Computer and 15.6-inch touch screen form one unit that analyzes images at the machine, displays results and sends signals to the controller.

Technical data

The capacitive touch screen with 1920 × 1080 pixels detects ten touch points under Windows and is rated for 35 million touches. Four GigE interfaces and four USB 3.0 ports take cameras and peripherals, and an HDMI output takes an external monitor. Three digital-isolated inputs, eight opto-isolated outputs and four RS-232 interfaces, switchable to RS-485 or RS-422, connect to the controller. An unactivated Windows 10 serves as the operating system.

Operating conditions

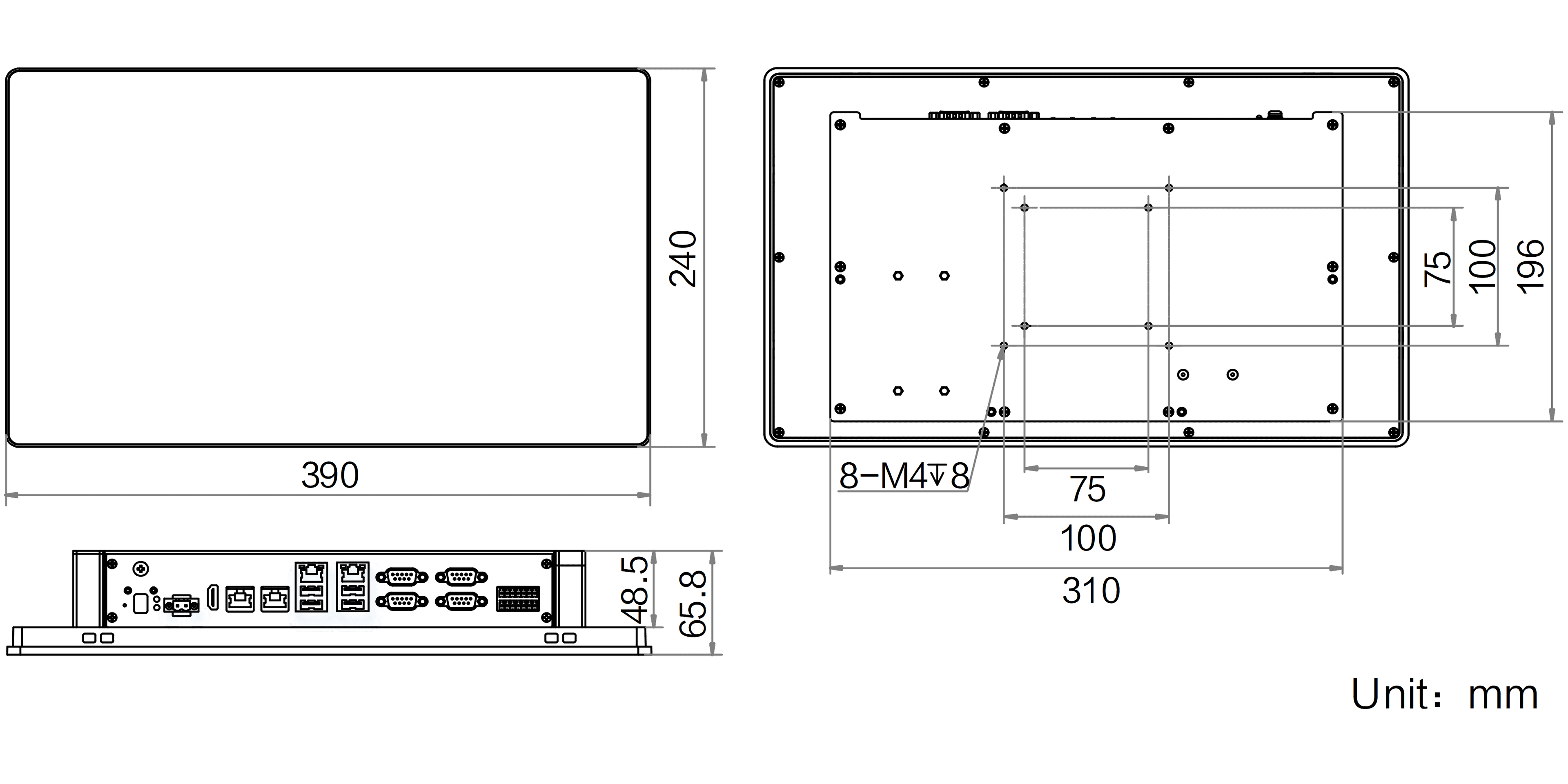

The MV-VT3700-128G40-NN needs 24 VDC and draws a typical 120 W. The operating range is 0 °C to 50 °C, the storage range -30 °C to 70 °C. Relative humidity of 20% to 80% without condensation applies. At 390 mm × 240 mm × 65.8 mm it weighs approx. 4.8 kg.

Applications and selection

At this level too, the PC has 8 GB of memory and only the 128 GB SSD for storage; for archiving images at the machine, the MV-VT3700-128G40-2T with an additional hard disk fits. If less computing power is enough, the MV-VT3500 with Core i5, the MV-VT3300 with Core i3 or the MV-VT3100 with Celeron are options. We are glad to check with you whether your cameras and cycle time call for the Core i7; requests go through the inquiry basket.
