Panel PC MV-VT3500-128G40-NN

The MV-VT3500-128G40-NN panel PC from HIKROBOT is an image processing computer with a built-in 15.6-inch touch screen. With the Intel® Core™ i5-8500T it ranks one level below the MV-VT3700 with Core i7 in the VT3000 series. It also has 8 GB of memory and a 128 GB SSD; this variant has no hard disk.

Technical data

Four GigE interfaces and four USB 3.0 ports are available for cameras. Three digital-isolated inputs, eight opto-isolated outputs and four RS-232 interfaces, switchable to RS-485 or RS-422, lead to the controller. The built-in display and the HDMI output work with 1920 × 1080 pixels, and the LED backlight has a lifetime of 50,000 hours. The capacitive touch screen detects ten touches at once under Windows.

Operating conditions

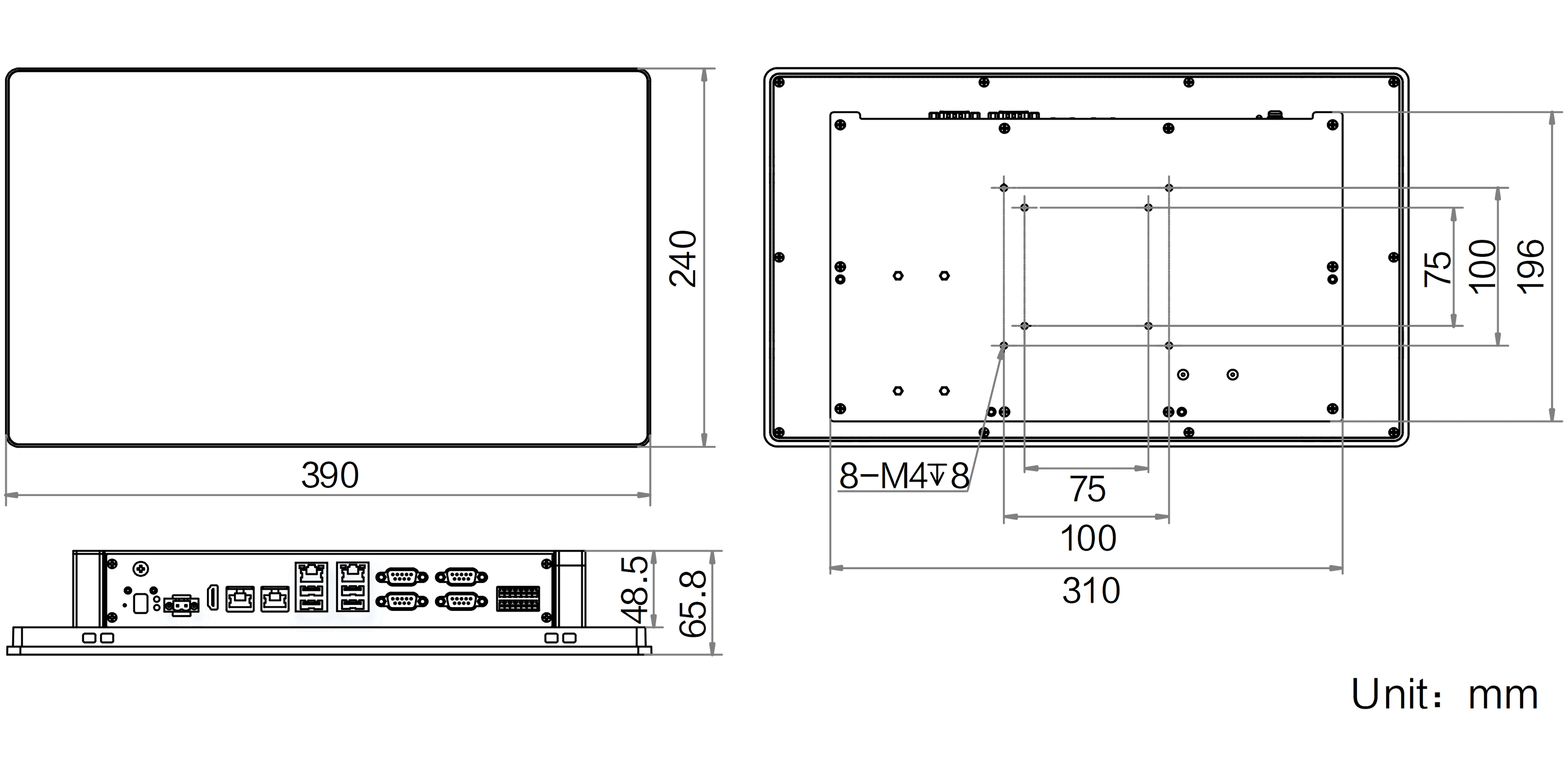

The MV-VT3500-128G40-NN is powered with 24 VDC and draws a typical 120 W. The permissible range is 0 °C to 50 °C in operation and -30 °C to 70 °C in storage, with relative humidity from 20% to 80%, without condensation. The housing measures 390 mm × 240 mm × 65.8 mm, with a weight of approx. 4.8 kg.

Applications and selection

The operating system is Windows 10, unactivated; activation is part of commissioning. To store many images at the machine, choose the MV-VT3500-128G40-2T with an additional hard disk. For lower computing requirements, the MV-VT3300 with Core i3 or the MV-VT3100 with Celeron are options. We are glad to agree with you on which level suits your cameras and cycle time; requests go through the inquiry basket.
