HIKROBOT

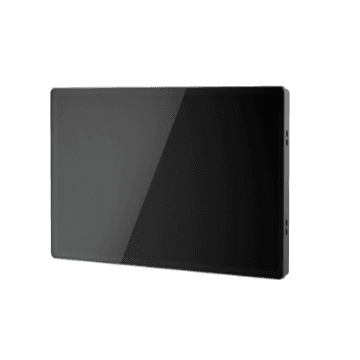

Panel PC MV-VT3300-128G40-2T
Manufacturer part number: MV-VT3300-128G40-2T · 308800950
- CPU
- Intel® Core™ i3-8100T
- Memory
- 8 GB
- Storage
- 128 GB SSD + 2 TB HDD
- Display
- 15.6 in, 1920 × 1080
- Network
- 4 × GigE
- USB
- 4 × USB 3.0
- Serial ports
- 4 × RS-232, switchable to RS-485 and RS-422
- Digital I/O
- 3 inputs, 8 outputs, isolated
- Power supply
- 24 VDC
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-VT3300-128G40-2T |
|---|---|
| CPU | Intel® Core™ i3-8100T |
| Memory | 8 GB |
| Storage | 128 GB SSD + 2 TB HDD |
| Operating system | Unactivated Windows 10 |
| Video output | HDMI interface × 1 (1920 × 1080) |
| Digital I/O | Digital-isolated input × 3 Opto-isolated output × 8 |
| Network interface | GigE interface × 4 |
| USB interface | USB 3.0 × 4 |
| Serial port | RS-232 × 4, supports switching to RS-485 and RS-422 |
| Power supply | 24 VDC |
| Power consumption | Typ. 120 W |
| Screen size | 15.6 inches |
| Resolution | 1920 × 1080 |
| Display area | 344.16 mm × 193.59 mm |
| Backlight | LED |
| Backlight lifetime | 50000 hrs |
| Viewing angle | 89°(R) / 89°(L) / 89°(B) / 89°(T) |
| Contrast ratio | 1200:1 |
| Brightness | 500 cd/m² |
| Touch type | Multi-point capacitive touch screen |
| Multi-touch | Touch supports with 10 points under Windows operating system |
| Touch times | 35 million times |
| Transmittance | ≥ 87 % |
| Surface hardness | ≥ 6 H |
| Dimension | 390 mm × 240 mm × 65.8 mm (15.4" × 9.4" × 2.6") |
| Weight | Approx. 4.8 kg (10.6 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 80 % RH (no condensation) |
| Certification | CE, KC |
| Input voltage | 24 VDC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

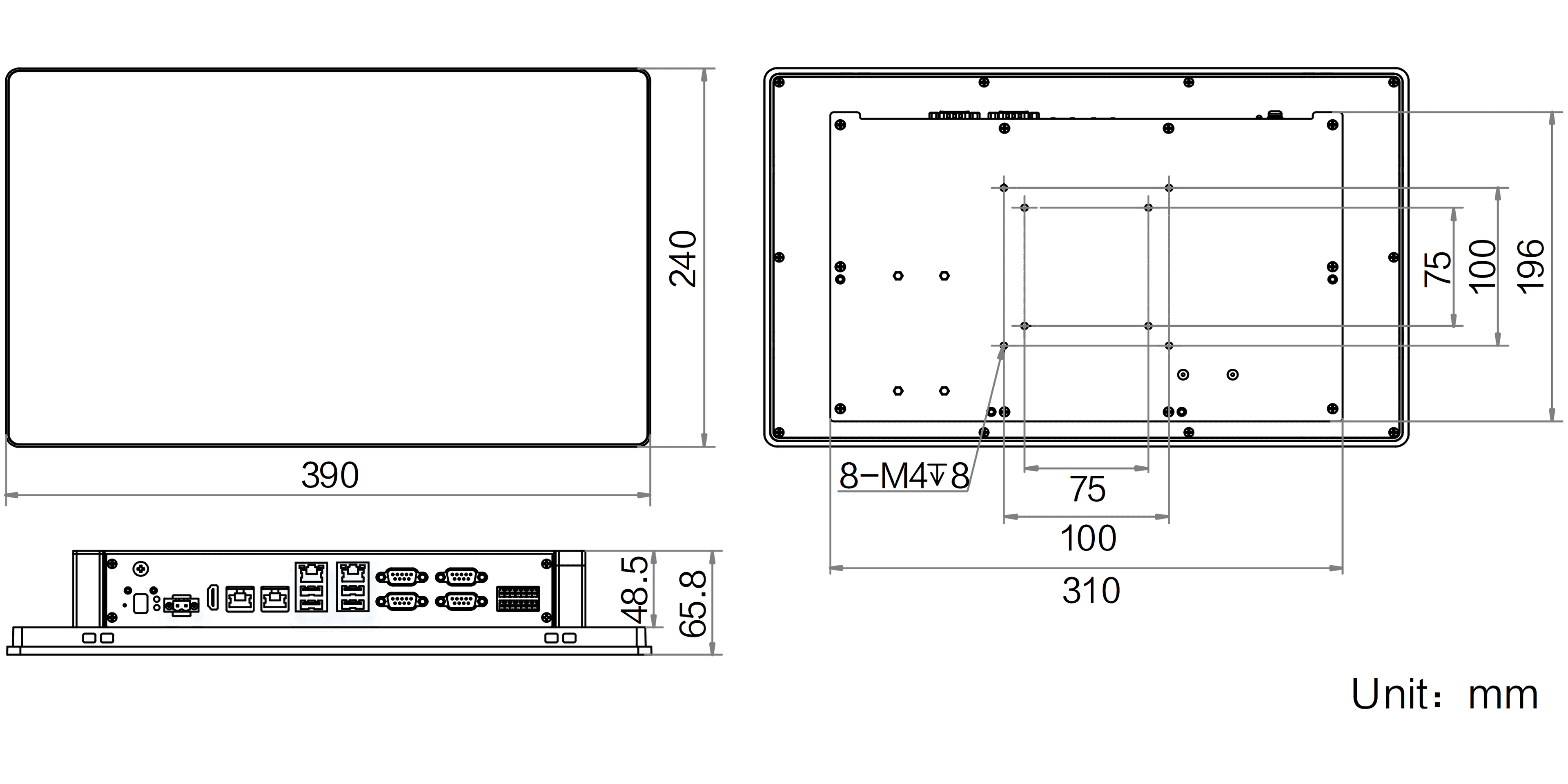

Dimensional drawing
Documents
- Download datasheet
Datasheet Panel-PC MV-VT3300-128G40-2T
Datasheet · EN · 416 KB
- Download
Technical drawing Panel-PC MV-VT3300-128G40-2T
Technical drawing · EN · 17 MB
- Download
Bedienungsanleitung Panel-PC MV-VT3300-128G40-2T
Manual · EN · 2 MB
More HIKROBOT products in this category
Description
The MV-VT3300-128G40-2T panel PC from HIKROBOT combines an Intel® Core™ i3-8100T and 8 GB of memory with two drives: a 128 GB SSD and a 2 TB HDD for inspection images and logs at the machine. Operation is via a 15.6-inch touch screen.
Technical data
The capacitive touch screen is rated for 35 million touches, its surface hardness is at least 6 H and its transmittance at least 87%. It has a resolution of 1920 × 1080 pixels and detects ten touch points under Windows. Cameras and network connect to four GigE interfaces, peripherals to four USB 3.0 ports, an external display to HDMI. Three digital-isolated inputs, eight opto-isolated outputs and four RS-232 interfaces, switchable to RS-485 and RS-422, link the PC to the controller. The specified operating system is Windows 10, unactivated.
Operating conditions
The PC is powered with 24 VDC and draws a typical 120 W. It may be operated at 0 °C to 50 °C and stored at -30 °C to 70 °C; relative humidity is specified as 20% to 80% without condensation.
Applications and selection
The permissible operating temperature ends at 50 °C; keep this in mind when planning for warm control cabinets. Without the hard disk this model is available as MV-VT3300-128G40-NN. Less computing power comes with the MV-VT3100-128G40-2T with Celeron, more with the MV-VT3500-128G40-2T with Core i5 and the MV-VT3700-128G40-2T with Core i7. We are glad to help with the selection by inspection task and data volume; requests go through the inquiry basket.
