Camera Link area scan cameras for existing systems

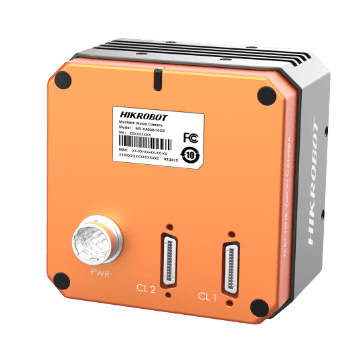

Camera Link is the established frame grabber interface of industrial machine vision: Base with one cable up to 255 MB/s, Medium and Full with two cables up to 680 MB/s, deterministic and with trigger over the cable. New systems today mostly turn to CoaXPress or 10 GigE; Camera Link remains the right choice where frame grabber, cables and software already exist or a camera in a running system has to be replaced. VISIONTECHNIK offers Camera Link area scan cameras from HIKROBOT and OPT with 4 to 101 megapixels, sensors from 2/3 inch to 55 mm, in mono and colour versions.

16 products

Manufacturer
Resolution
Pixels
Max. frame rate (fps)
Color / mono
Shutter type
Sensor format
Pixel size (µm)
Lens mount

Products

Camera Link area scan cameras: choosing by inspection task

Where Camera Link is the right interface

When replacing a camera in an existing system, what counts is that configuration (Base, Medium, Full, 80 bit), clock frequency and connector type (SDR or MDR) match the existing frame grabber. The software then stays unchanged and the conversion is limited to the camera.

For new systems, CoaXPress offers the higher data rate and longer cables with the same determinism; 10 GigE works without a frame grabber. Those who deploy Camera Link anew usually do so because of existing experience, software or spare parts stock.

Selection criteria

The filters in this category follow the questions to settle before choosing:

  • Resolution: from 4 to 101 megapixels in stock
  • Frame rate: from 8 to 180 frames per second, depending on the Camera Link configuration
  • Sensor size: 2/3 inch to 1.1 inch with C-mount, larger sensors up to 55 mm with M58 and M72
  • Pixel size: 2.5 µm to 5.5 µm
  • Mono or colour
  • Configuration and cable: Base, Medium, Full; SDR or MDR connector; cable length up to about 10 m

Typical applications

Camera Link area scan cameras are used, among other things, for:

  • Replacement of discontinued cameras in running systems
  • Extension of existing systems with Camera Link frame grabbers
  • Clocked inspection with hard trigger over the cable
  • Applications with existing software integration through the frame grabber

Frequently asked questions about Camera Link area scan cameras

What distinguishes Base, Medium and Full?
The number of data channels and thus the bandwidth: Base uses one cable at up to 255 MB/s, Medium and Full two cables at up to 510 and 680 MB/s respectively. Camera and frame grabber have to support the same configuration.
Does every Camera Link camera fit every Camera Link frame grabber?
Within the same configuration and clock frequency usually yes; the protocol is standardised. Points to check are connector type, cable length and whether the frame grabber is meant to power the camera via PoCL.
Are new Camera Link cameras still available?
Yes, this category lists current models with up to 101 megapixels. For new systems a comparison with CoaXPress and 10 GigE is still worthwhile, as they offer higher data rates and longer cables.

Next technical step

Still unsure which model fits?

Tell us the inspection task, object size, required resolution, cycle rate and the computer environment you have. We narrow down suitable models across manufacturers, check interface, lens and lighting together and say openly what still needs clarifying before a decision.
