Area scan camera MV-CH050-10CM
Manufacturer part number: MV-CH050-10CM · 306300883
- Resolution
- 5 MP
- Pixels
- 2432 × 2048
- Max. frame rate
- 140 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- Camera Link
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH050-10CM |
|---|---|
| Type | 5MP Area Scan Camera,Camera Link,IMX250,Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX250 |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 2/3" |
| Resolution | 2432 × 2048 |
| Max. frame rate | 140 fps @2432 × 2048 |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 75.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 15 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 3.3 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % to 80 % RH, non-condensing |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows XP/7/10 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

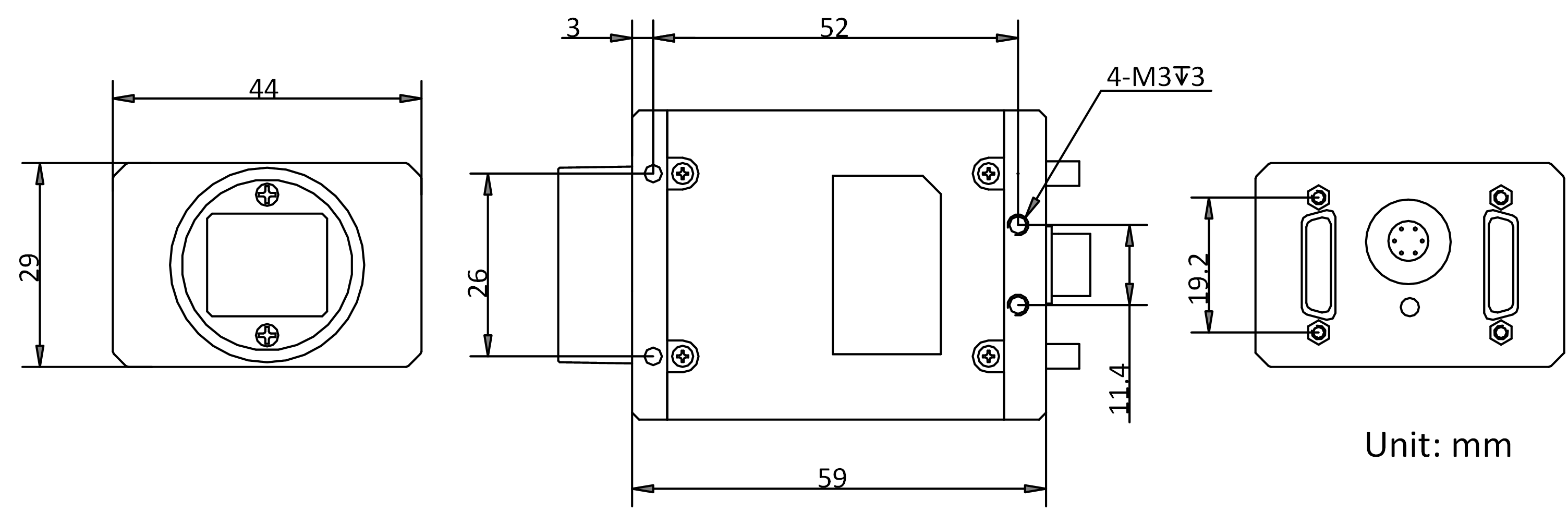

Dimensional drawing
