Area scan camera MV-CH1010-10CM-M72-NF

Manufacturer part number: MV-CH1010-10CM-M72-NF · 306301867

Resolution: 101 MP
Pixels: 11648 × 8740
Max. frame rate: 8.1 fps
Color / mono: Mono
Shutter type: Rolling Shutter
Sensor format: 55 mm
Pixel size: 3.76 µm × 3.76 µm
Interface: Camera Link
Lens mount: M72 × 0.75
Global reset: Yes

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CH1010-10CM-M72-NF
Type	101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan
Sensor type	CMOS, rolling shutter
Sensor model	Sony® IMX461
Pixel size	3.76 µm × 3.76 µm
Sensor size	55 mm
Resolution	11648 × 8740
Max. frame rate	8.1 fps @ 11648 × 8740 Mono 8
Configuration mode	Base, Medium, Full, 80-bit
Tap geometry	2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
Tap number	2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock	40 MHz, 60 MHz, 70 MHz, 85 MHz
Dynamic range	78 dB
SNR	45 dB
Gain	0 dB to 36 dB
Exposure time	14 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset
Mono/color	Mono
Pixel format	ADC 12-bit mode: Mono 8/10/12 ADC 16-bit mode: Mono 8/10/12/16
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Data interface	Camera Link with SDR interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Power supply	Camera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC
Power consumption	Typ. 14 W @ 24 VDC
Lens mount	M72*0.75, flange back length 19.55 mm
Dimension	Camera with fan: 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8") Camera with TEC: 100 mm × 100 mm × 87.2 mm (3.9" × 3.9" × 3.4")
Weight	Camera with fan: Approx. 790 g (1.7 lb.) Camera with TEC: Approx. 1.7 kg (3.7 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or frame grabber software meeting with GenlCam Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility	Camera Link V2.0, GenlCam
Certification	CE, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

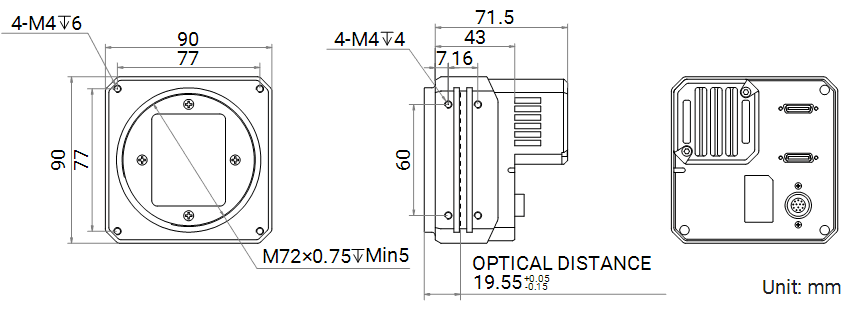

Dimensional drawing
