HIKROBOT
Area scan camera MV-CH050-10CC
Manufacturer part number: MV-CH050-10CC · 306300884
- Resolution
- 5 MP
- Pixels
- 2432 × 2048
- Max. frame rate
- 140 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- Camera Link
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH050-10CC |
|---|---|
| Type | 5MP Area Scan Camera,Camera Link,IMX250,Color |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX250 |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 2/3" |
| Resolution | 2432 × 2048 |
| Max. frame rate | 140 fps @2432 × 2048 |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 75.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 17 dB |
| Exposure time | 15 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer RG 8/10/12, RGB 8 |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 3.41 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % to 80 % RH, non-condensing |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows XP/7/10 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

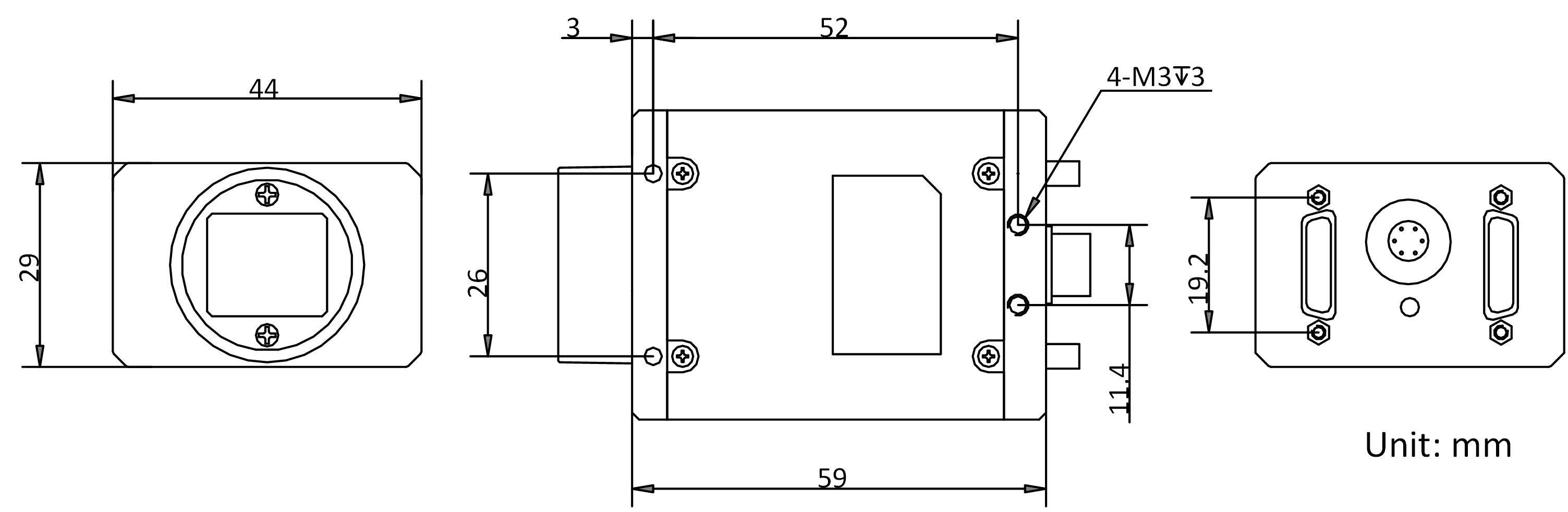

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH050-10CC
Datasheet · EN · 512 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH050-10CC
Technical drawing · EN · 2 MB
Software and SDK (12)
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
Manual HikRobot Flächenkamera MV-CH050-10CC
Manual · EN · 3 MB
Accessories
Data cables(11)
HIKROBOT
Hochflex CameraLink Datenkabel (SDR-SDR), 7 m
SDR26 · 7 m
Datenkabel
HIKROBOT
Hochflex CameraLink Datenkabel (SDR-SDR), 3 m
SDR26 · 3 m
Datenkabel
HIKROBOT
Hochflex CameraLink Datenkabel (MDR-MDR), 5 m
MDR26 · 5 m
HIKROBOT
Hochflex CameraLink Datenkabel (SDR-SDR), 5 m
SDR26 · 5 m
Datenkabel
HIKROBOT
Hochflex CameraLink Datenkabel (SDR-MDR), 3 m
SDR26 · 3 m
Datenkabel
HIKROBOT
Hochflex CameraLink Datenkabel (SDR-MDR), 5 m
SDR26 · 5 m
Datenkabel
HIKROBOT
Hochflex CameraLink Datenkabel (SDR-MDR), 7 m
SDR26 · 7 m
Datenkabel
HIKROBOT
Hochflex CameraLink Datenkabel (MDR-MDR), 3 m
MDR26 · 3 m
HIKROBOT
Standard CameraLink Datenkabel (SDR-SDR), 5 m
SDR · 5 m
Datenkabel
HIKROBOT
Standard CameraLink Datenkabel (SDR-SDR), 3 m
SDR · 3 m
Datenkabel
HIKROBOT
Standard CameraLink Datenkabel (SDR-SDR), 7 m
SDR · 7 m
Datenkabel
Description
Key Feature - Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range, and high-quality image. - Resolution of 2432 × 2048 and pixel size of 3.45 µm × 3.45 µm. - Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface. - Adopts compact design with mounting holes for flexible mounting.
