Area scan camera MV-CH250-20CM-M58S-NN
Manufacturer part number: MV-CH250-20CM-M58S-NN · 306300943
- Resolution
- 25 MP
- Pixels
- 5120 × 5120
- Max. frame rate
- 31.3 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 23 mm × 23 mm
- Pixel size
- 4.5 µm × 4.5 µm
- Interface
- Camera Link
- Lens mount
- M58 × 0.75
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH250-20CM-M58S-NN |
|---|---|
| Type | 25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi PYTHON25K |
| Pixel size | 4.5 µm × 4.5 µm |
| Sensor size | 23 mm × 23 mm |
| Resolution | 5120 × 5120 |
| Configuration mode | Full, 80-bit |
| Tap geometry | 8X_1Y, 10X_1Y |
| Tap number | 8 Taps, 10 Taps |
| Max. frame rate | 31.3 fps @ 5120 × 5120 |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 59 dB |
| SNR | 41 dB |
| Gain | 0 dB to 32 dB |
| Exposure time | 45 µs to 10 sec |
| Mono | Mono |
| Pixel format | Mono 8 |
| Exposure mode | Off/Once/Continuous exposure mode |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1; Camera Link connector provides I/O (CC1/CC2/CC3/CC4). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 9.4 W @ 24 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 70 mm × 70 mm × 44.3 mm (2.8" × 2.8" × 1.7") |
| Weight | Approx. 380 g (0.8 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

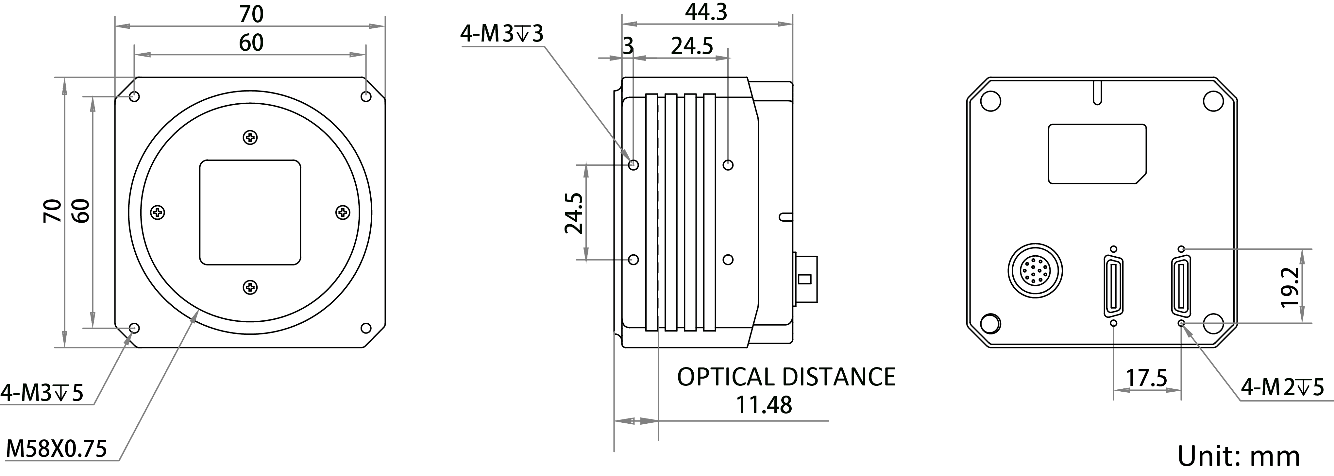

Dimensional drawing
