Area scan camera MV-CH120-10CC
Manufacturer part number: MV-CH120-10CC · 306301012
- Resolution
- 12 MP
- Pixels
- 3840 × 3000 (80-bit), 4096 × 3000 (Base/Medium/Full)
- Max. frame rate
- 51.4 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- Camera Link
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH120-10CC |
|---|---|
| Type | 12MP Area Scan Camera, Camera Link, IMX253, Color |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX253 |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit) |
| Max. frame rate | 51.4 fps @ 4096 × 3000 Bayer RG 8 (Base/Medium/Full) 68.1 fps @ 3840 × 3000 Bayer RG 8 (80-bit) |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1X_1Y, 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap number | 1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 71.6 dB |
| SNR | 39.7 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 1 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer RG 8/10/12, RGB 8 |
| Binning | Not support |
| Decimation | Not support |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Camera Link with SDR interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 4.5 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH 80 % RH (no condensation) |
| Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

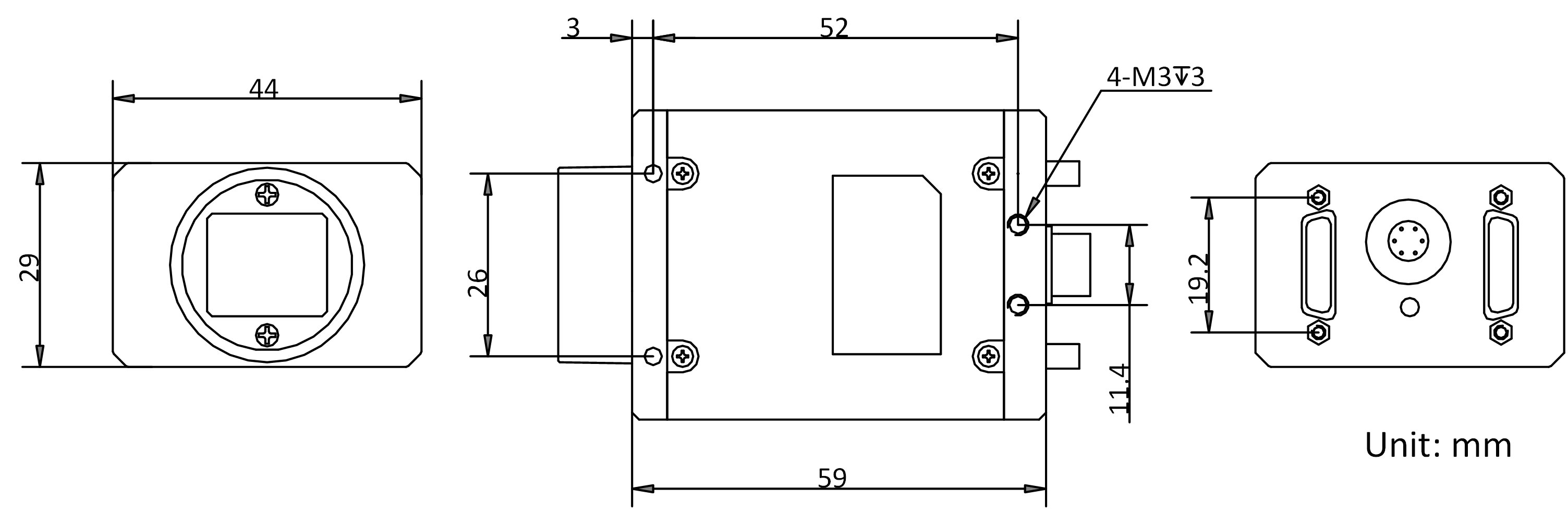

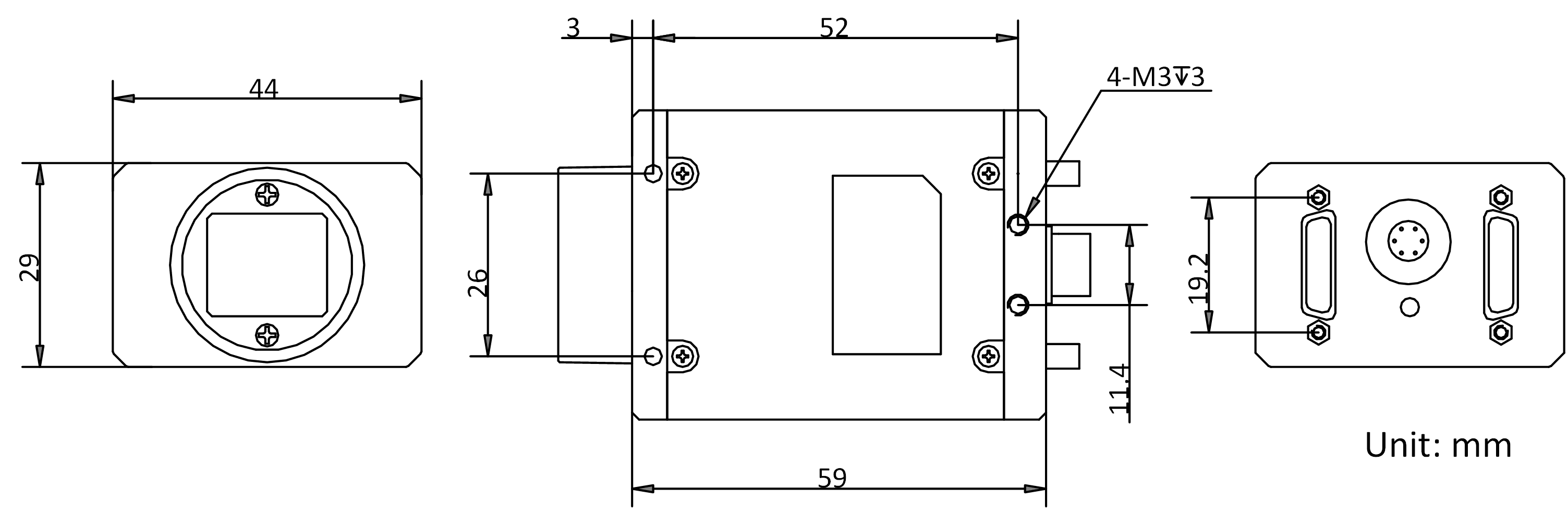

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH120-10CC
Datasheet · EN · 660 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH120-10CC
Technical drawing · EN · 1571 KB
- Download
Manual HikRobot Flächenkamera MV-CH120-10CC
Manual · EN · 3246 KB
