di-soric

Area light BE-F5050-F1-K

Manufacturer part number: BE-F5050-F1-K

Series: BE-F5050

Lighting type: Area front light
Emitting area: 50 × 50 mm
Light color: Red (diffuse), 625 nm
Beam characteristic: Diffuse
Drive / supply: Not a constant-voltage supply
Connection: Cable, 2.5 m (open end, operation only with a flash controller)

Price and availability on request

Quantity

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	BE-F5050-F1-K
Elektrische Merkmale: Leistungsaufnahme (im Puls/max.)	25.0 W
Elektrische Merkmale: Bestromungsfaktor (im Puls/max.)	6.4
Elektrische Merkmale: Bestromung (im Puls/max.)	1600 mA
Elektrische Merkmale: Betriebsspannung	Not a constant-voltage supply
Elektrische Merkmale: Verpolschutz	No
Elektrische Merkmale: Isolationsspannungsfestigkeit	500 V
Mechanische Merkmale: Leuchtfläche	50 x 50 mm
Mechanische Merkmale: Gehäuselänge	80 mm
Mechanische Merkmale: Gehäusehöhe	13 mm
Mechanische Merkmale: Gehäusebreite	80 mm
Mechanische Merkmale: Gehäusematerial	Aluminum (black, anodized)
Mechanische Merkmale: Material	PUR (cable) PC, opal diffus (Schutzoptik)
Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471)	Exempt group
Zertifizierungen, Zulassungen: Zulassungen	UL
Allgemeine Merkmale: Bauform	Backlight
Optische Daten: Lichtquelle	LED
Optische Daten: Farbe	Red (diffuse)
Optische Daten: Wellenlänge	625 nm
Anzeige, Bedienung: Regelung	Blitzbar per Flash-Controller
Umgebungsbedingungen: Schock-/Schwingbeanspruchung	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Umgebungsbedingungen: Umgebungstemperatur Betrieb	0 … +40 °C
Umgebungsbedingungen: Schutzart	IP 67
Elektrischer Anschluss: Anschluss	Cable, 2.5 m (open end, operation only with a flash controller)
Lighting type	Area front light
Beam characteristic	Diffuse

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

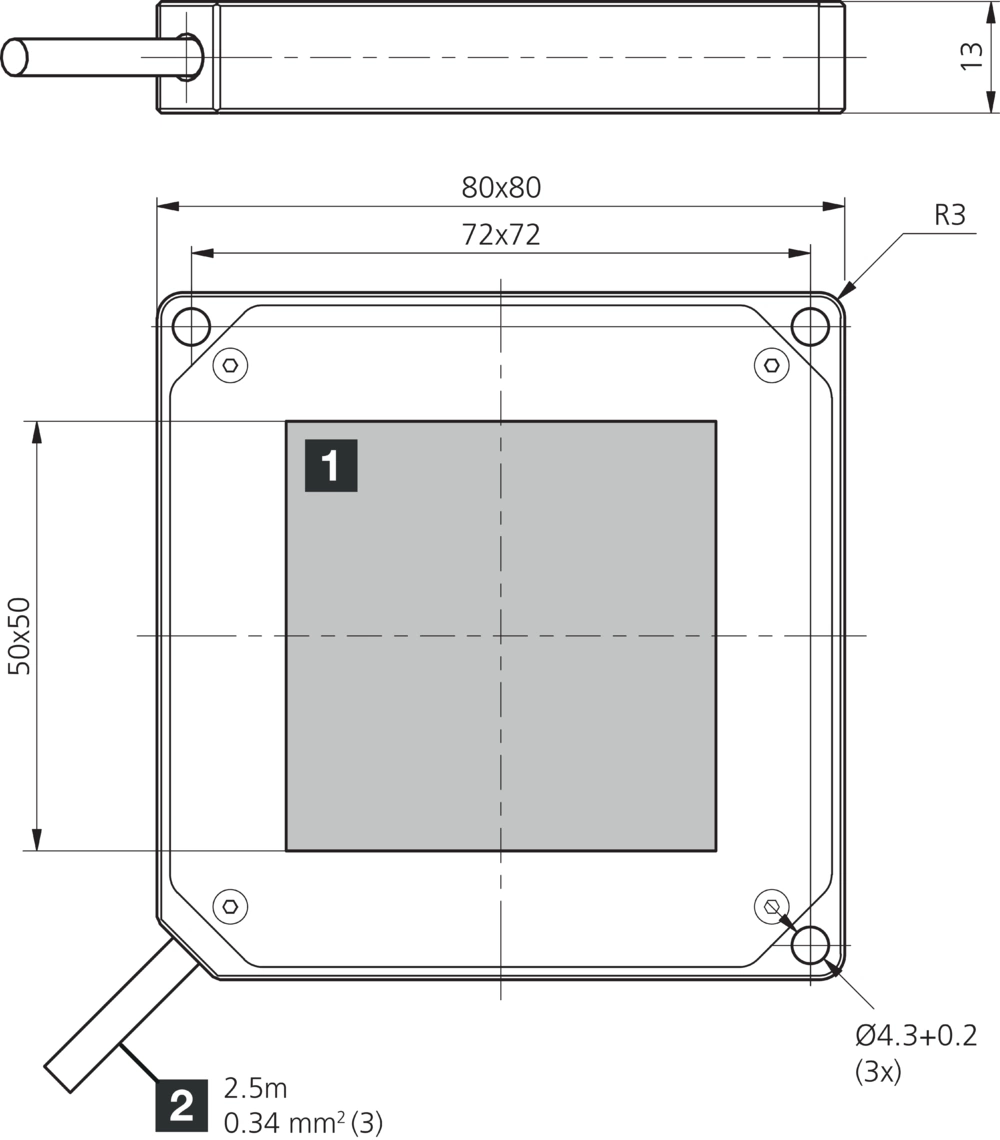

Dimensional drawing

Documents

Datasheet BE-F5050-F1-K
Datasheet · DE · 980 KB
Download datasheet
BE-F50-50-Fx-K (DXF)
Technical drawing · DE · 322 KB
Download
BE-F50/50-Fx-K (STP)
Technical drawing · DE · 202 KB
Download
BE-F50/50-Fx-K (IGS)
Technical drawing · DE · 432 KB
Download

Accessories

Power / I/O cables(8)

di-soric

Power / I/O cable VKHM-W-2.54

Buchse, M12, 4-pin, A-coded · 2500 mm

di-soric

Power / I/O cable VKHM-W-54

Buchse, M12, 4-pin, A-coded · 5000 mm

di-soric

Power / I/O cable VKHM-W-104

Buchse, M12, 4-pin, A-coded · 10000 mm

di-soric

Power / I/O cable VKHM-W-154

Buchse, M12, 4-pin, A-coded · 15000 mm

di-soric

Power / I/O cable VKHM-Z-2.54

Buchse, M12, 4-pin, A-coded · 2500 mm

di-soric

Power / I/O cable VKHM-Z-54

Buchse, M12, 4-pin, A-coded · 5000 mm

di-soric

Power / I/O cable VKHM-Z-104

Buchse, M12, 4-pin, A-coded · 10000 mm

di-soric

Power / I/O cable VKHM-Z-154

Buchse, M12, 4-pin, A-coded · 15000 mm

Halterung / Stand(9)

di-soric

Base holder HS-GH-12-A

Base holder

di-soric

Base holder HS-GH-12

Base holder

di-soric

Cross connector HS-K-12-12-A

Cross connector

di-soric

Mounting rod HS-S-12-100-V

Mounting rod

di-soric

Mounting rod HS-S-12-200-V

Mounting rod

di-soric

Mounting rod HS-S-12-500-V

Mounting rod

di-soric

Clamping cylinder HS-KL-12-20-V

Clamping cylinder

di-soric

Sensor holder SH-U1-12-150-V

Sensor holder

di-soric

Sensor holder HS-S-12-130-M10

Sensor holder

Adapterring(1)

di-soric

Adapter ring HS-AR-KL-20

Adapter ring

More variants in this series

Area light BE-F5050-F5-K

More di-soric products in this category

Description

Externally strobable area lights are suitable for operation on a constant current source or a strobe controller. They are the ideal solution for very short camera exposure times and therefore for very fast processes.
