di-soric
Adapter ring HS-AR-KL-20
Manufacturer part number: HS-AR-KL-20
Series: HS-AR
- Accessory type
- Adapter ring
- Component
- Adapter ring
- Material
- Stainless steel (V4A, 1.4404 / AISI 316L - 1.4571 / AISI 316Ti)
- Dimensions
- Ø 20 / Ø 20 mm (mounting pin/bore diameter)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | HS-AR-KL-20 |
|---|---|
| Mechanische Merkmale: Maß | Ø 20 / Ø 20 mm (mounting pin/bore diameter) |
| Mechanische Merkmale: Gehäusematerial | Stainless steel (V4A, 1.4404 / AISI 316L - 1.4571 / AISI 316Ti) |
| Allgemeine Merkmale: Komponente | Adapter ring |
| Allgemeine Merkmale: Produktserie | Z-UBT-KL-MS Montagesystem |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

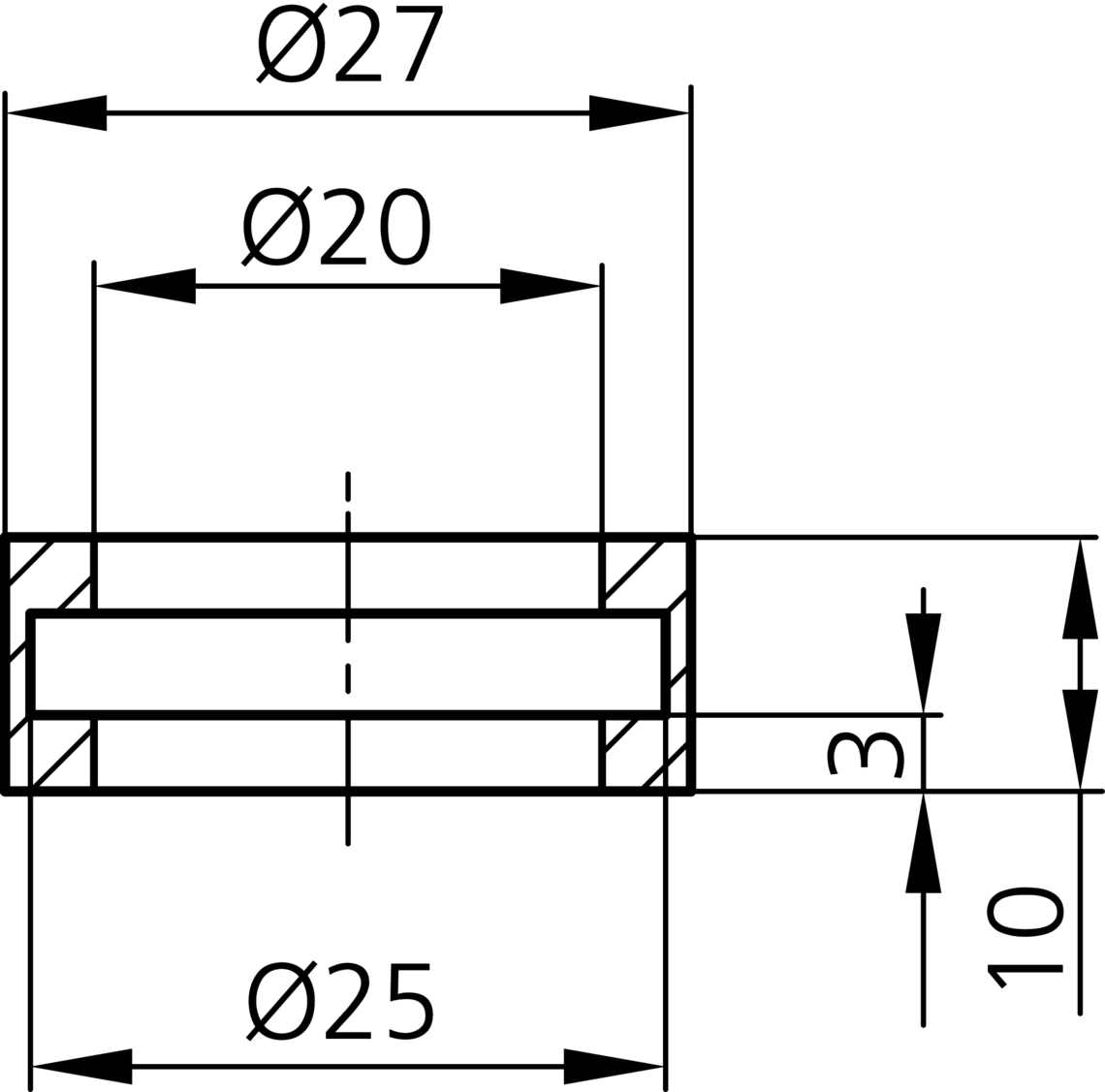

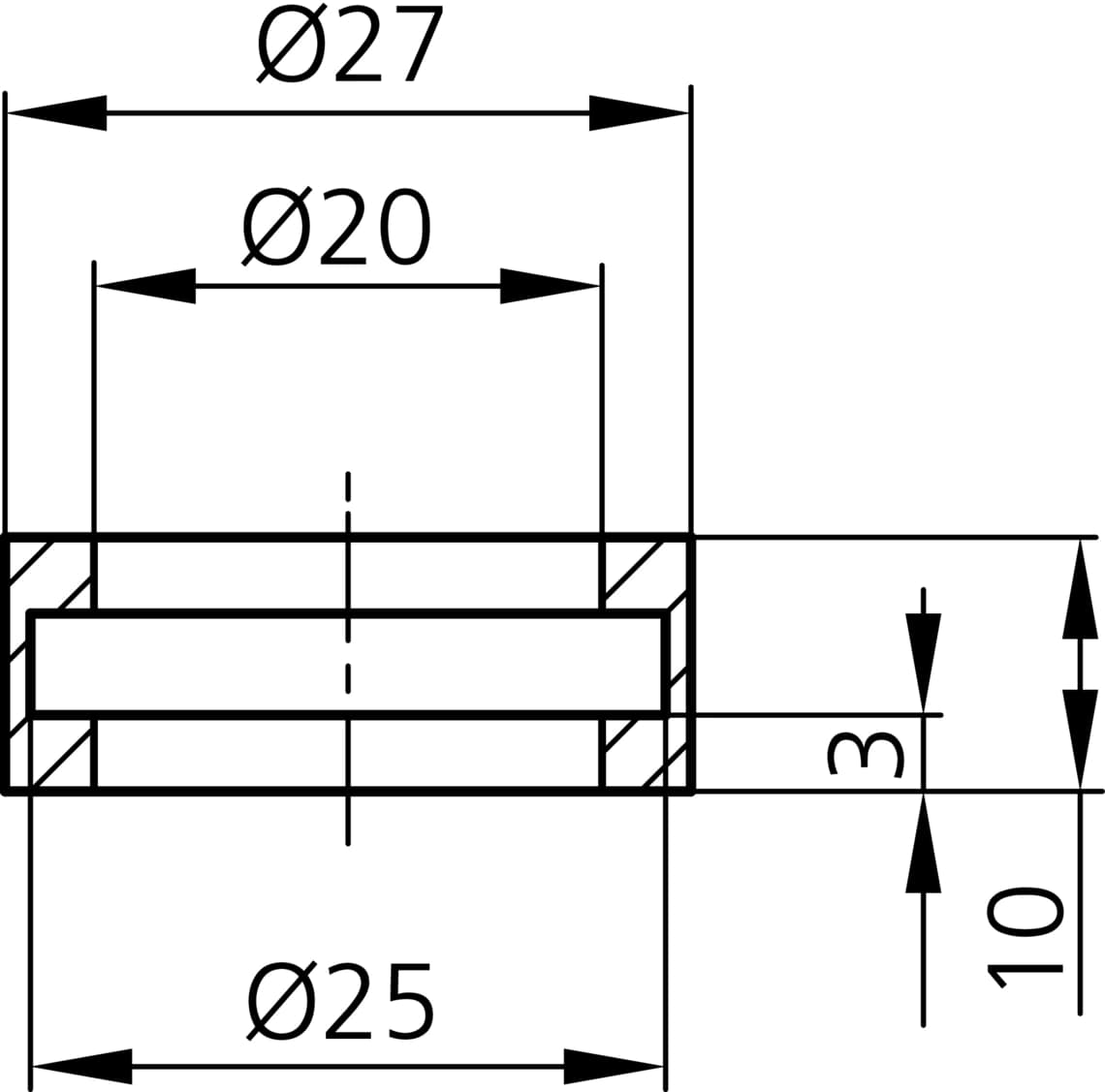

Dimensional drawing
Documents
- Download datasheet
209483 ds HS-AR-KL-20 de (PDF)
Datasheet · DE · 455 KB
- Download
HS-AR-KL-20 (STP)
Technical drawing · DE · 23 KB
Description
Comprehensive mounting system range for the fixed installation of sensors and lighting - with base holders, tubes, rods, adapter rings, articulated arms, angle clamps and cross connectors, almost any mounting situation can be covered. Further properties include: versatile holding system with high flexibility, universal mounting, continuous adjustment and robust construction.
