di-soric

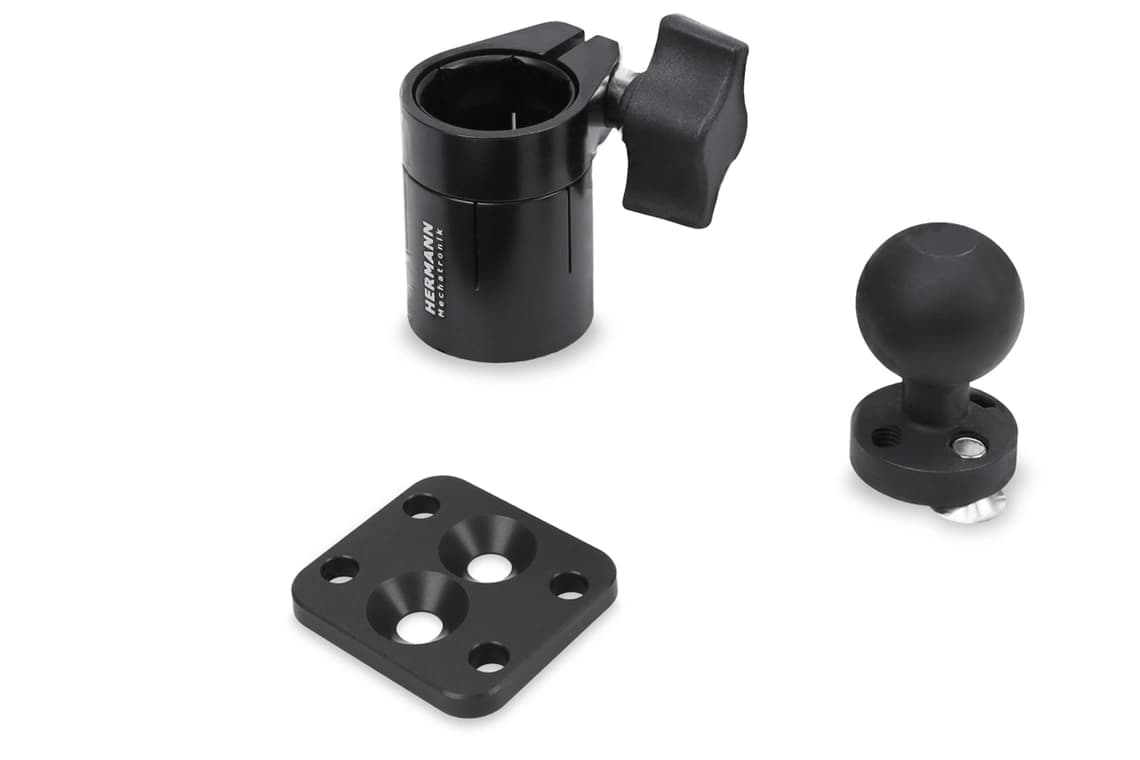

Haltesystem Ball head HS-BE-P-MP-KK-M4
Manufacturer part number: HS-BE-P-MP-KK-M4
Series: HS-BE
- Accessory type
- Bracket / stand
- Compatible with
- BEK
- Component
- Haltesystem Kugelkopf
- Material
- Aluminum
- Product series
- Z-UBT-KU-PH product holder
- Dimensions
- 30 x 32 x 35 mm
Suitable for: Punktbeleuchtungen BEK 1-Pxx … (axial)
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | HS-BE-P-MP-KK-M4 |
|---|---|
| Mechanische Merkmale: Gehäuseabmaße | 30 x 32 x 35 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum |
| Allgemeine Merkmale: Komponente | Haltesystem Kugelkopf |
| Allgemeine Merkmale: Geeignet für | Punktbeleuchtungen BEK 1-Pxx … (axial) |
| Allgemeine Merkmale: Produktserie | Z-UBT-KU-PH product holder |
| Funktionsumfang: Lieferumfang | Adapterplatte (BEK-P), Kugelkopf, Kugelfassung, Befestigungsmaterial |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
213330 ds HS-BE-P-MP-KK-M4 de (PDF)
Datasheet · DE · 450 KB
- Download
HS-BE-P-MP-KK-M4 (STP)
Technical drawing · DE · 126 KB
- Download
HS-BE-P-MP-KK-M4 (IGS)
Technical drawing · DE · 250 KB
- Download
Halter BEK-P Kugelkopf (STP)
Technical drawing · DE · 126 KB
- Download
Halter BEK-P Kugelkopf (IGS)
Technical drawing · DE · 250 KB
- Download
Kugelfassung (STP)
Technical drawing · DE · 163 KB
- Download
Kugelfassung (IGS)
Technical drawing · DE · 331 KB
More variants in this series
More di-soric products in this category
- Adapter screw HS-AG-NG-AD-VS-M6
- Holding arm HS-AG-NG-HA-VS-M6
- Suction cup holder HS-AG-NG-KK-VS-M8M6
- Clamp HS-AG-NG-KL-VS-M6
- Adapter ring HS-AR-KL-20
- Sensor holder HS-BW-CS
- Mounting system HS-BW-CS5X-ID5X0-12
- Mounting system HS-BW-CS5X-ID5X0-KK
- Base holder HS-GH-3-12-A
- Base holder HS-GH-12
- Base holder HS-GH-12-A
Description
Product bracket with ball joint for robust yet flexibly alignable mounting - easy to adjust and reliable in continuous operation. Further properties include: load capacity min. 60 Nm (static), torsional strength min. 8 Nm and adjustment range: 45° (tilt) / 360° (rotation).
