HS-BE-DOME-MP-VS-M3

di-soric

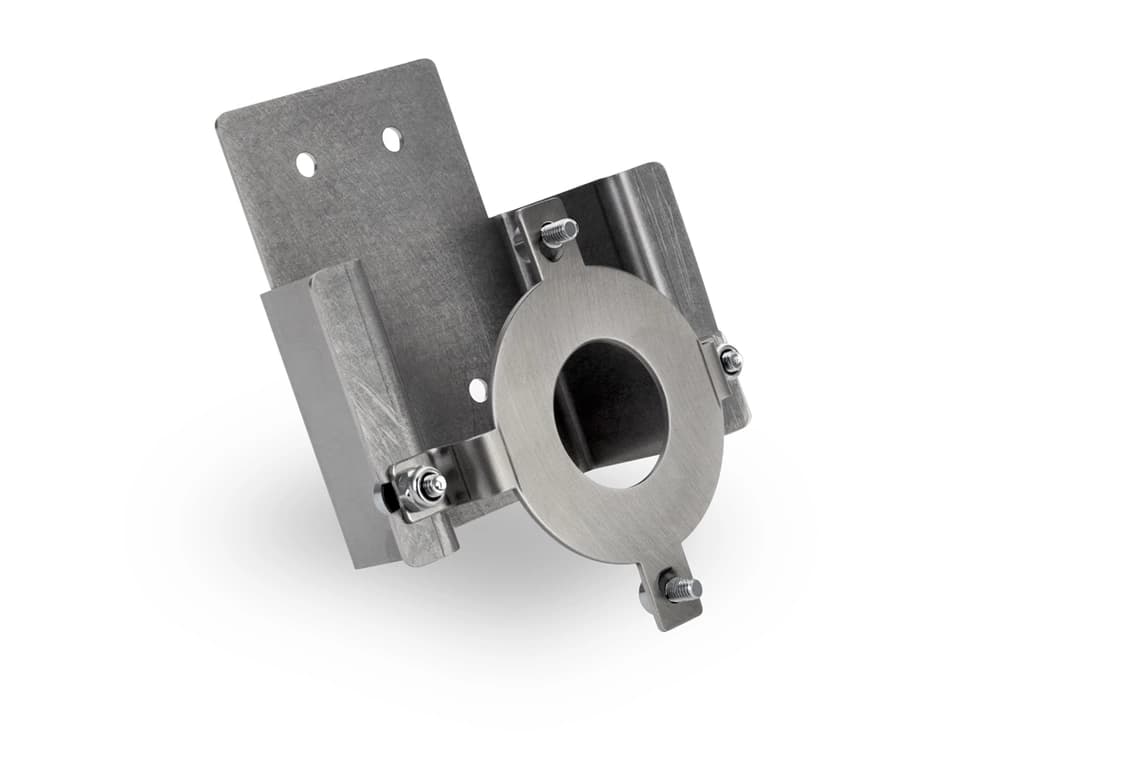

Mounting plate HS-BE-DOME-MP-VS-M3

Manufacturer part number: HS-BE-DOME-MP-VS-M3

Series: HS-BE

Accessory type
Bracket / stand
Compatible with
CS, BE-DOME
Component
Halteblech
Material
Stainless steel
Dimensions
65 x 65.5 x 35 mm

Suitable for: Vision Sensoren CS, BE-DOME 100/70 ..., BE-DOME 170/110 ...

Price and availability on request

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part numberHS-BE-DOME-MP-VS-M3
Mechanische Merkmale: Gehäuseabmaße65 x 65.5 x 35 mm
Mechanische Merkmale: GehäusematerialStainless steel
Allgemeine Merkmale: KomponenteHalteblech
Allgemeine Merkmale: Geeignet fürVision Sensoren CS, BE-DOME 100/70 ..., BE-DOME 170/110 ...
Funktionsumfang: Lieferumfang2 Blechbiegeteile, Befestigungsmaterial

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

  • 213691 ds HS-BE-DOME-MP-VS-M3 de (PDF)

    Datasheet · DE · 378 KB

    Download datasheet

  • HS-BE-DOME-MP-VS-M3 (STP)

    Technical drawing · DE · 338 KB

    Download

  • HS-BE-DOME-MP-VS-M3 (IGS)

    Technical drawing · DE · 754 KB

    Download

More variants in this series

More di-soric products in this category

Description

High-quality bracket from our mechanical accessories range - designed for industrial-grade mounting. Further properties include: simple mounting of DOME series lighting on the CS-60 and stainless steel fastening element.
