di-soric
Base holder HS-GH-12-A
Manufacturer part number: HS-GH-12-A
Series: HS-GH
- Accessory type
- Bracket / stand
- Component
- Grundhalter
- Material
- Aluminum
- Product series
- Z-UBT-KL-MS Montagesystem
- Dimensions
- Ø 12 mm (mounting pin/bore diameter)
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | HS-GH-12-A |
|---|---|
| Mechanische Merkmale: Maß | Ø 12 mm (mounting pin/bore diameter) |
| Mechanische Merkmale: Gehäusematerial | Aluminum |
| Allgemeine Merkmale: Komponente | Grundhalter |
| Allgemeine Merkmale: Produktserie | Z-UBT-KL-MS Montagesystem |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

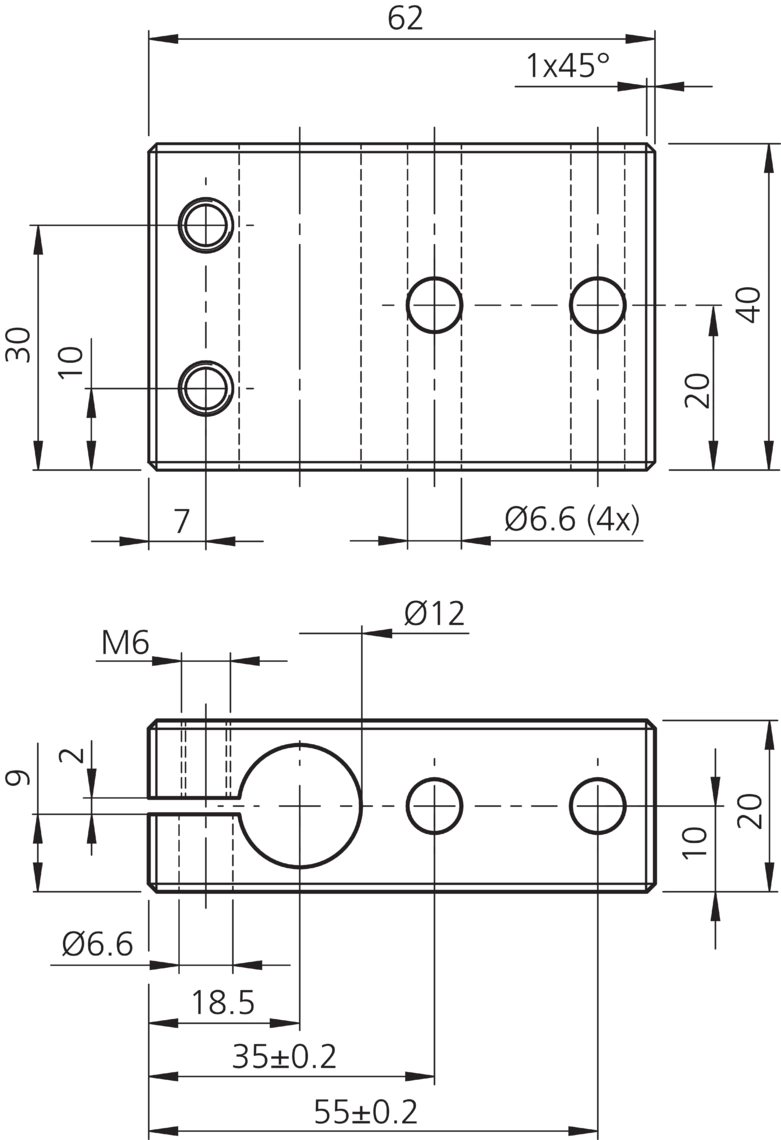

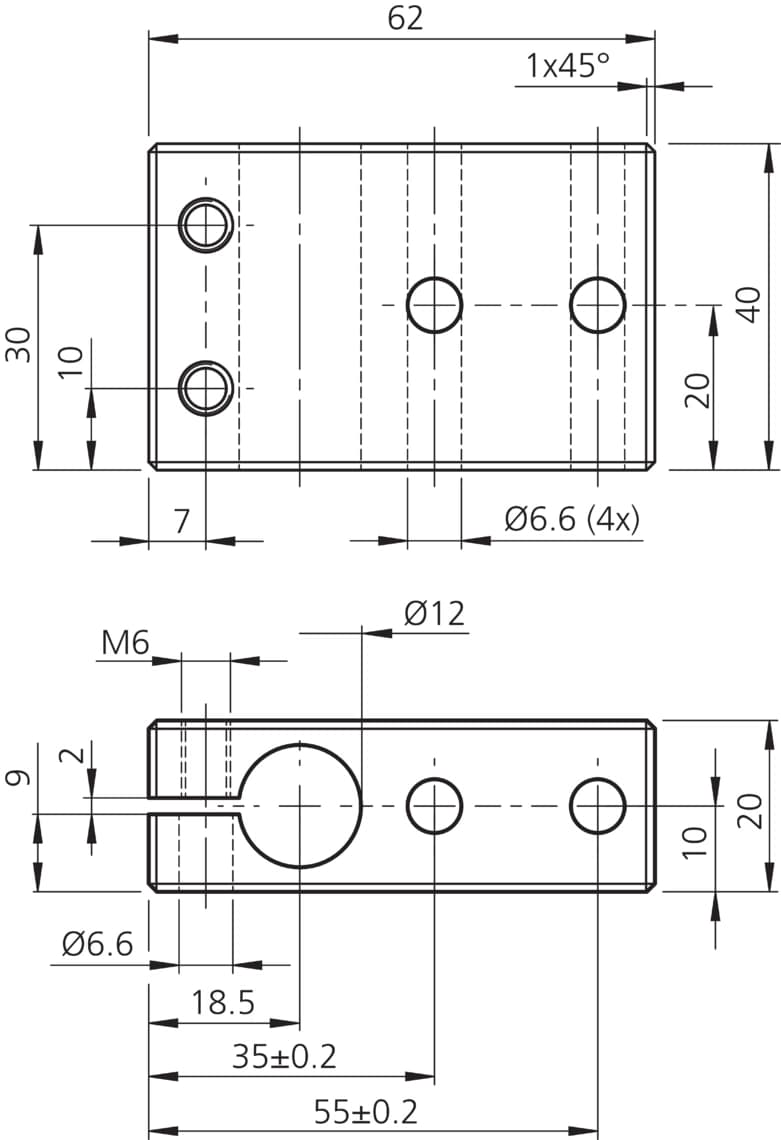

Dimensional drawing
Documents
- Download datasheet
209458 ds HS-GH-12-A de (PDF)
Datasheet · DE · 313 KB
- Download
HS-GH-12 (IGS)
Technical drawing · DE · 408 KB
- Download
HS-GH-12-A (STP)
Technical drawing · DE · 422 KB
More variants in this series
More di-soric products in this category
- Mounting plate HS-BE-DOME-MP-VS-M3
- Haltesystem Ball head HS-BE-P-MP-KK-M4
- Sensor holder HS-BW-CS
- Mounting system HS-BW-CS5X-ID5X0-12
- Mounting system HS-BW-CS5X-ID5X0-KK
- Cross connector HS-K-12-12-A
- Clamping cylinder HS-KL-12-20-V
- Mounting bracket HS-PH-BEK-R33
- Mounting rod HS-S-12-100-V
- Sensor holder HS-S-12-130-M10
Description
Comprehensive mounting system range for the fixed installation of sensors and lighting - with base holders, tubes, rods, adapter rings, articulated arms, angle clamps and cross connectors, almost any mounting situation can be covered. Further properties include: versatile holding system with high flexibility, universal mounting, continuous adjustment and robust construction.
