di-soric

Mounting rod HS-S-12-100-V

Manufacturer part number: HS-S-12-100-V

Series: HS-S

Accessory type: Bracket / stand
Component: Montagestange
Material: Stainless steel
Product series: Z-UBT-KL-MS Montagesystem
Dimensions: Ø 12 mm (mounting pin/bore diameter), W: 100 mm

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	HS-S-12-100-V
Mechanische Merkmale: Maß	Ø 12 mm (Durchm. Montagezapfen/Bohrung) B: 100 mm
Mechanische Merkmale: Gehäusematerial	Stainless steel
Allgemeine Merkmale: Komponente	Montagestange
Allgemeine Merkmale: Produktserie	Z-UBT-KL-MS Montagesystem

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

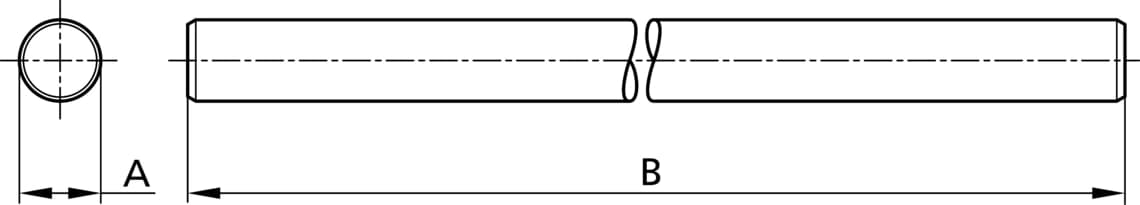

Dimensional drawing

Documents

209471 ds HS-S-12-100-V de (PDF)
Datasheet · DE · 285 KB
Download datasheet
HS-S-12-100-V (STP)
Technical drawing · DE · 18 KB
Download
HS-S-12-100-V (IGS)
Technical drawing · DE · 39 KB
Download

Description

Comprehensive mounting system range for the fixed installation of sensors and lighting - with base holders, tubes, rods, adapter rings, articulated arms, angle clamps and cross connectors, almost any mounting situation can be covered. Further properties include: versatile holding system with high flexibility, universal mounting, continuous adjustment and robust construction.
