di-soric
Mounting rod HS-S-12-500-V
Manufacturer part number: HS-S-12-500-V
Series: HS-S
- Accessory type
- Bracket / stand
- Component
- Montagestange
- Material
- Stainless steel
- Product series
- Z-UBT-KL-MS Montagesystem
- Dimensions
- Ø 12 mm (mounting pin/bore diameter), W: 500 mm
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | HS-S-12-500-V |
|---|---|
| Mechanische Merkmale: Maß | Ø 12 mm (Durchm. Montagezapfen/Bohrung) B: 500 mm |
| Mechanische Merkmale: Gehäusematerial | Stainless steel |
| Allgemeine Merkmale: Komponente | Montagestange |
| Allgemeine Merkmale: Produktserie | Z-UBT-KL-MS Montagesystem |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

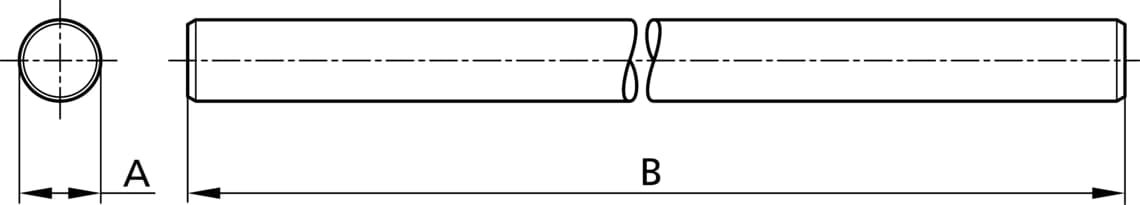

Dimensional drawing
Documents
- Download datasheet
209774 ds HS-S-12-500-V de (PDF)
Datasheet · DE · 169 KB
- Download
HS-S-12-500-V (STP)
Technical drawing · DE · 18 KB
- Download
HS-S-12-500-V (IGS)
Technical drawing · DE · 42 KB
More variants in this series
More di-soric products in this category
Description
Comprehensive mounting system range for the fixed installation of sensors and lighting - with base holders, tubes, rods, adapter rings, articulated arms, angle clamps and cross connectors, almost any mounting situation can be covered. Further properties include: versatile holding system with high flexibility, universal mounting, continuous adjustment and robust construction.
