di-soric

Cross connector HS-K-12-12-A

Manufacturer part number: HS-K-12-12-A

Series: HS-K

Accessory type: Bracket / stand
Component: Kreuzverbinder
Material: Aluminum
Product series: Z-UBT-KL-MS Montagesystem
Dimensions: Ø 12 / Ø 12 mm (mounting pin/bore diameter)

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	HS-K-12-12-A
Mechanische Merkmale: Maß	Ø 12 / Ø 12 mm (mounting pin/bore diameter)
Mechanische Merkmale: Gehäusematerial	Aluminum
Allgemeine Merkmale: Komponente	Kreuzverbinder
Allgemeine Merkmale: Produktserie	Z-UBT-KL-MS Montagesystem

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

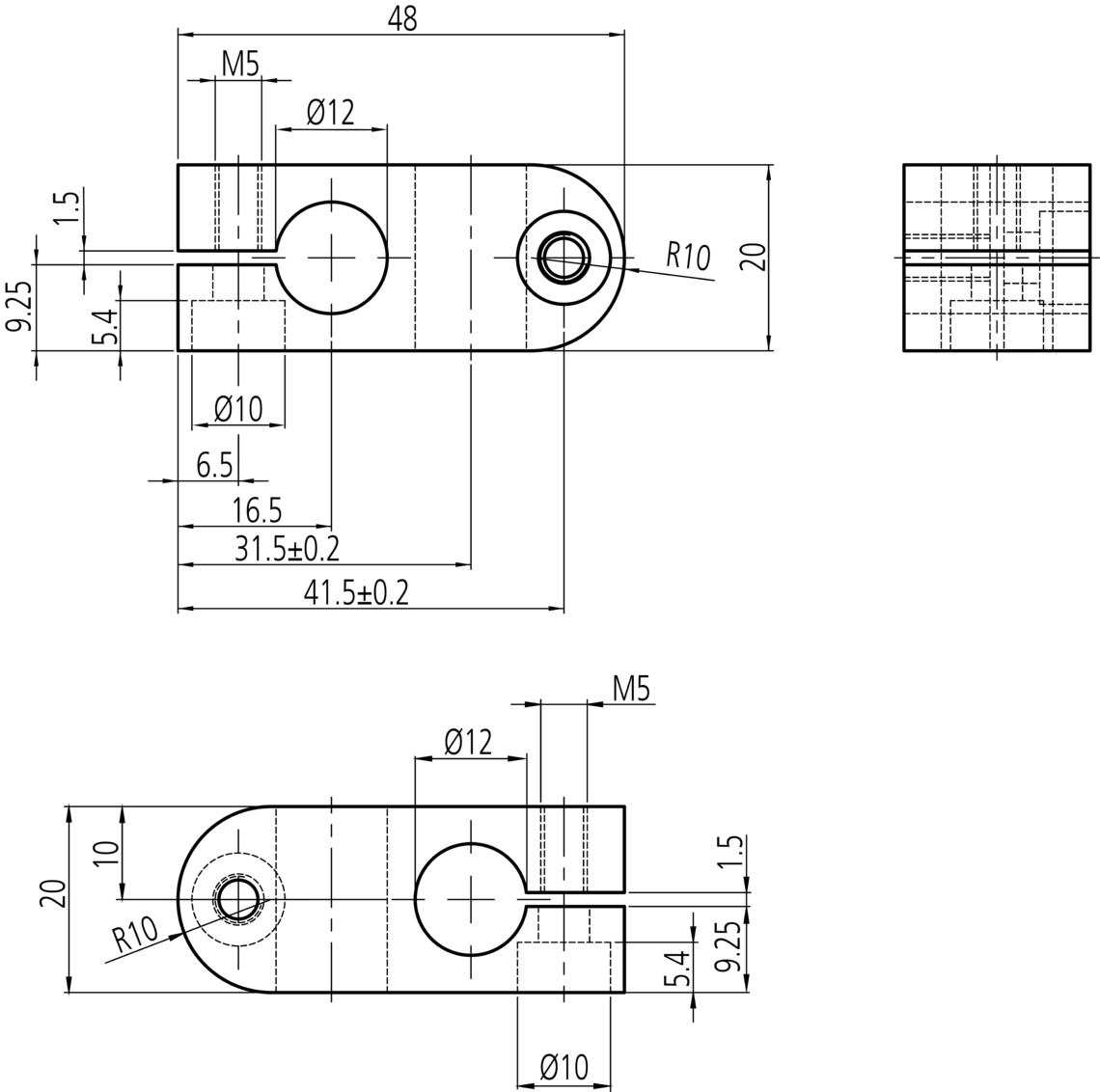

Dimensional drawing

Documents

208267 ds HS-K-12-12-A de (PDF)
Datasheet · DE · 368 KB
Download datasheet
HS-K-12-12-A (STP)
Technical drawing · DE · 66 KB
Download
HS-K-12-12-A (IGS)
Technical drawing · DE · 232 KB
Download

Description

Comprehensive mounting system range for the fixed installation of sensors and lighting - with base holders, tubes, rods, adapter rings, articulated arms, angle clamps and cross connectors, almost any mounting situation can be covered. Further properties include: versatile holding system with high flexibility, universal mounting, continuous adjustment and robust construction.
