di-soric
Sensor holder HS-S-12-130-M10
Manufacturer part number: HS-S-12-130-M10
Series: HS-S
- Accessory type
- Bracket / stand
- Compatible with
- HS-KL-12-20-V, HS-K-12-12-A, HS-GH-2-12-A
- Component
- Sensorhalter
- Material
- Stainless steel
- Product series
- Z-UBT-KL-MS Montagesystem
- Dimensions
- Ø 12 mm / M10 (mounting pin/bore diameter)
Suitable for: Klemmzylinder HS-KL-12-20-V, Kreuzverbinder HS-K-12-12-A, Grundhalter HS-GH-2-12-A
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | HS-S-12-130-M10 |
|---|---|
| Mechanische Merkmale: Maß | Ø 12 mm / M10 (mounting pin/bore diameter) |
| Mechanische Merkmale: Gehäusematerial | Stainless steel |
| Allgemeine Merkmale: Komponente | Sensorhalter |
| Allgemeine Merkmale: Betrieb mit | Kreuzverbinder HS-K-12-12-A |
| Allgemeine Merkmale: Geeignet für | Klemmzylinder HS-KL-12-20-V, Kreuzverbinder HS-K-12-12-A, Grundhalter HS-GH-2-12-A |
| Allgemeine Merkmale: Produktserie | Z-UBT-KL-MS Montagesystem |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

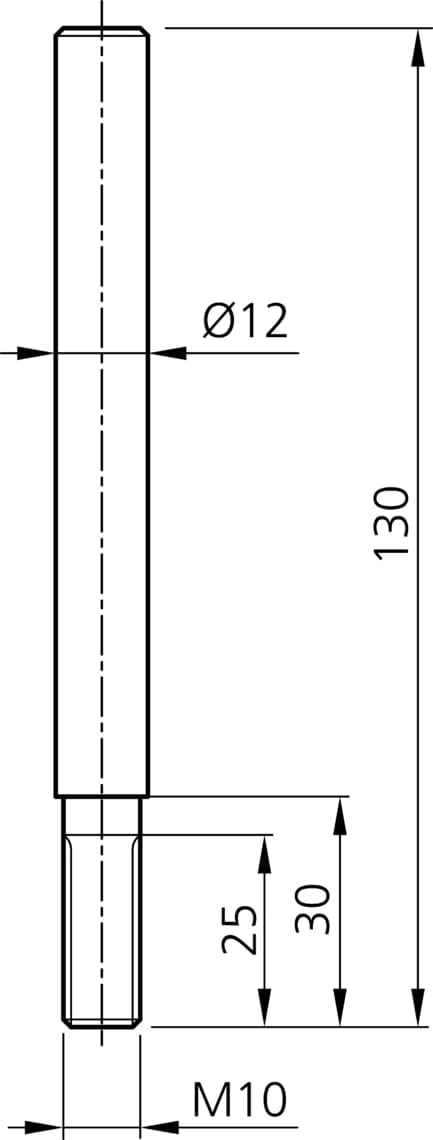

Dimensional drawing
Documents
- Download datasheet
209486 ds HS-S-12-130-M10 de (PDF)
Datasheet · DE · 324 KB
- Download
HS-S-12-130-M10 (STP)
Technical drawing · DE · 24 KB
Description
Comprehensive mounting system range for the fixed installation of sensors and lighting - with base holders, tubes, rods, adapter rings, articulated arms, angle clamps and cross connectors, almost any mounting situation can be covered. Further properties include: versatile holding system with high flexibility, universal mounting, continuous adjustment and robust construction.
