di-soric
Sensor holder SH-U1-12-150-V
Manufacturer part number: SH-U1-12-150-V
Series: SH-U1
- Accessory type
- Bracket / stand
- Compatible with
- OGU, OGL
- Component
- Sensorhalter
- Material
- Stainless steel
- Product series
- Z-UBT-KL-MS Montagesystem
- Dimensions
- Ø 12 mm (mounting pin/bore diameter)
Suitable for: Gabellichtschranken OGU ..., Winkellichtschranken OGL ..., Flächen- Punkt- und Dunkelfeldbeleuchtungen
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | SH-U1-12-150-V |
|---|---|
| Mechanische Merkmale: Maß | Ø 12 mm (mounting pin/bore diameter) |
| Mechanische Merkmale: Gehäusematerial | Stainless steel |
| Allgemeine Merkmale: Komponente | Sensorhalter |
| Allgemeine Merkmale: Geeignet für | Gabellichtschranken OGU ..., Winkellichtschranken OGL ..., Flächen- Punkt- und Dunkelfeldbeleuchtungen |
| Allgemeine Merkmale: Produktserie | Z-UBT-KL-MS Montagesystem |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

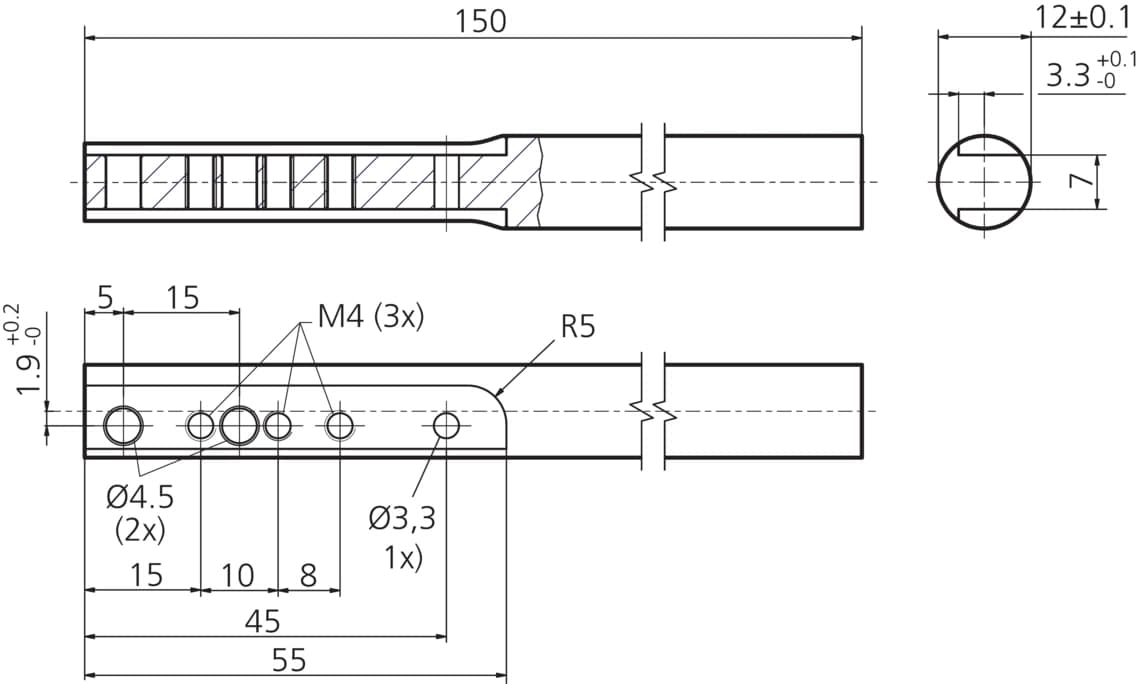

Dimensional drawing
Documents
- Download datasheet
209800 ds SH-U1-12-150-V de (PDF)
Datasheet · DE · 274 KB
- Download
SH-U1-12-150-V (STP)
Technical drawing · DE · 26 KB
- Download
SH-U1-12-150-V (IGS)
Technical drawing · DE · 63 KB
More di-soric products in this category
- Clear protective window LC-C-4614
- Diffuser LC-D-4614
- Polarizer LC-P-4614
- Other accessory M8KM12S4
- Base holder SH-G-BE
- Base holder SH-G-CS
- Power / I/O cable VKHM-W-2.54
- Power / I/O cable VKHM-W-2.54LP
- Power / I/O cable VKHM-W-54
- Power / I/O cable VKHM-W-54LP
- Power / I/O cable VKHM-W-104
- Power / I/O cable VKHM-W-104LP
Description
Comprehensive mounting system range for the fixed installation of sensors and lighting - with base holders, tubes, rods, adapter rings, articulated arms, angle clamps and cross connectors, almost any mounting situation can be covered. Further properties include: versatile holding system with high flexibility, universal mounting, continuous adjustment and robust construction.
