di-soric

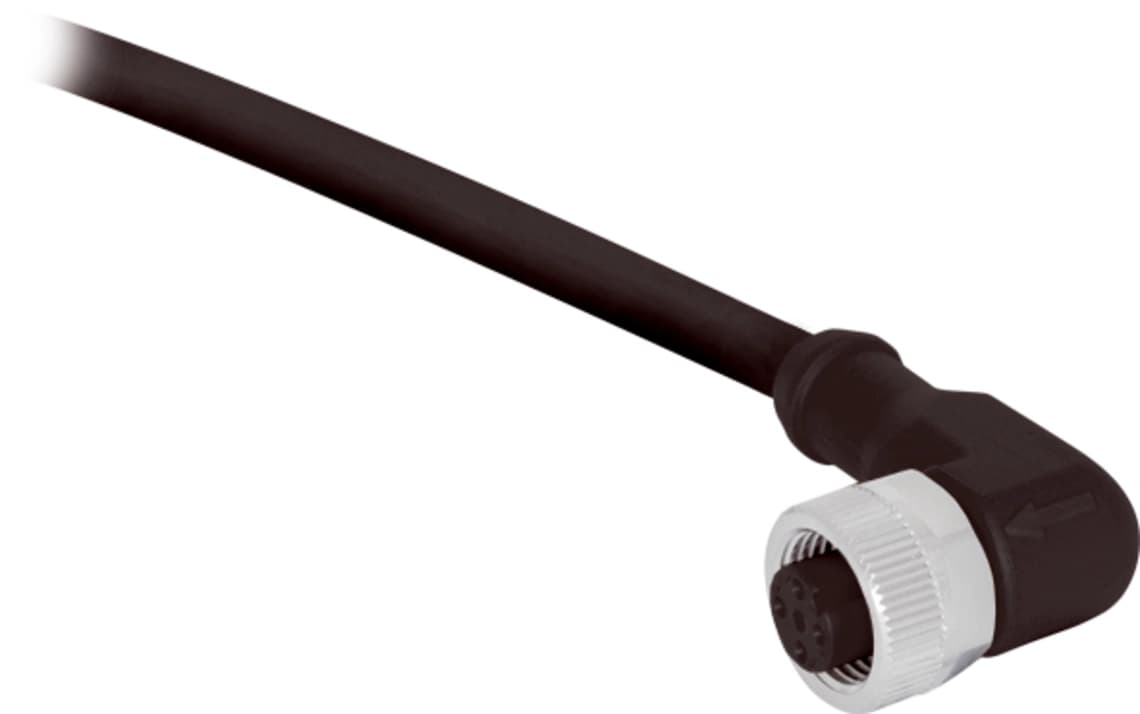

Power / I/O cable VKHM-W-104LP

Manufacturer part number: VKHM-W-104LP

Series: VKHM-W

Accessory type: Power / I/O cable
Length: 10000 mm
Connector A: Buchse, M12, 4-pin and more
Flexibility: Angled / flying leads
Ingress protection: IP67

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	VKHM-W-104LP
Elektrische Merkmale: Betriebsspannung	< 31 V DC
Mechanische Merkmale: Länge	10000 mm
Mechanische Merkmale: Durchmesser	Ø 5.2 mm (Durchmesser)
Mechanische Merkmale: Gewinde	M12 x 1
Mechanische Merkmale: Material Kabel	PUR, ungeschirmt
Mechanische Merkmale: Schleppkettenwerte	80 mm (min. Biegeradius)
Zertifizierungen, Zulassungen: Schutzklasse	III, operation on safety extra-low voltage
Allgemeine Merkmale: Bauform	Angled / flying leads
Allgemeine Merkmale: Besonderheiten	Metallmutter
Funktionsumfang: Schleppkettentauglich	Yes
Anzeige, Bedienung: LED Anzeige	Yes
Umgebungsbedingungen: Umgebungstemperatur Betrieb	-5 … +80 °C (bewegt, fest)
Umgebungsbedingungen: Schutzart	IP 67
Elektrischer Anschluss: Anschluss	Buchse, M12, 4-pin, A-coded
Elektrischer Anschluss: Querschnitt	0.34 mm² (4 x)

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

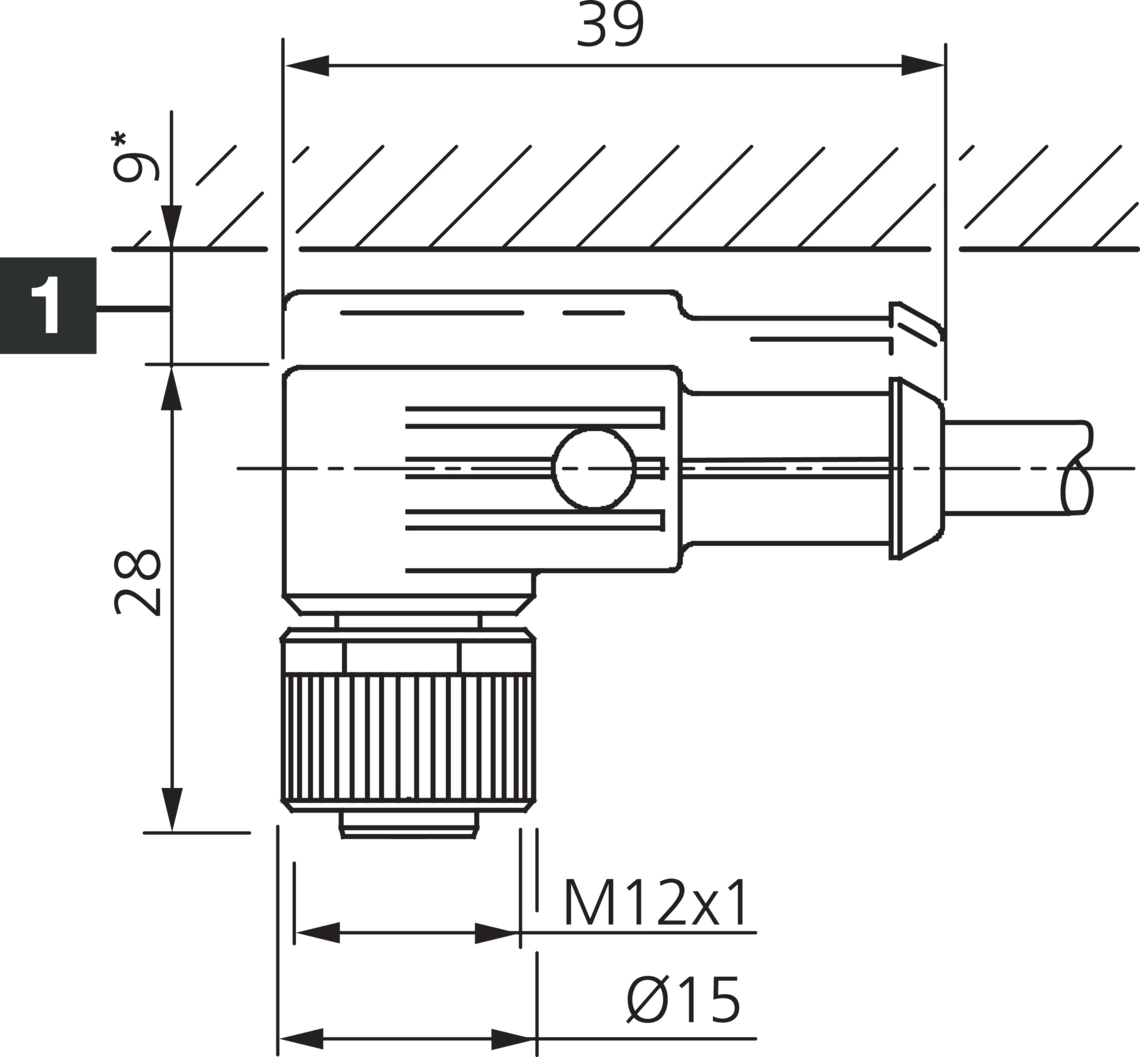

Dimensional drawing

Documents

201841 ds VKHM-W-10-4-LP de (PDF)
Datasheet · DE · 632 KB
Download datasheet
VKHM-W-xx/4-LP (STP)
Technical drawing · DE · 287 KB
Download

Description

Connection cable with an open cable end for quick commissioning of sensors, lighting and vision and ID products. The robust metal coupling nut, clean strippability and high degree of protection also make it suitable for demanding installation situations. Further properties include: LEDs for operating voltage and switching state, suitable for drag chains, sturdy metal coupling nut, robust PU sheathing, flexible stranded construction, good stripping properties, high degree of protection and gold-plated contacts.
