di-soric
Area light BE-F100100-F5-K
Manufacturer part number: BE-F100100-F5-K
Series: BE-F100100
- Lighting type
- Area front light
- Emitting area
- 100 × 100 mm
- Light color
- White (diffuse), 6500 K
- Beam characteristic
- Diffuse
- Drive / supply
- Not a constant-voltage supply
- Connection
- Cable, 2.5 m (open end, operation only with a flash controller)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-F100100-F5-K |
|---|---|
| Elektrische Merkmale: Leistungsaufnahme (im Puls/max.) | 80.0 W |
| Elektrische Merkmale: Bestromungsfaktor (im Puls/max.) | 9 |
| Elektrische Merkmale: Bestromung (im Puls/max.) | 3200 mA |
| Elektrische Merkmale: Betriebsspannung | Not a constant-voltage supply |
| Elektrische Merkmale: Isolationsspannungsfestigkeit | 500 V |
| Mechanische Merkmale: Leuchtfläche | 100 x 100 mm |
| Mechanische Merkmale: Gehäuselänge | 130 mm |
| Mechanische Merkmale: Gehäusehöhe | 13 mm |
| Mechanische Merkmale: Gehäusebreite | 130 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | PUR (cable) PC, opal diffus (Schutzoptik) |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Bauform | Backlight |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | White (diffuse) |
| Optische Daten: Wellenlänge | 6500 K |
| Anzeige, Bedienung: Regelung | Blitzbar per Flash-Controller |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Cable, 2.5 m (open end, operation only with a flash controller) |
| Lighting type | Area front light |
| Beam characteristic | Diffuse |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

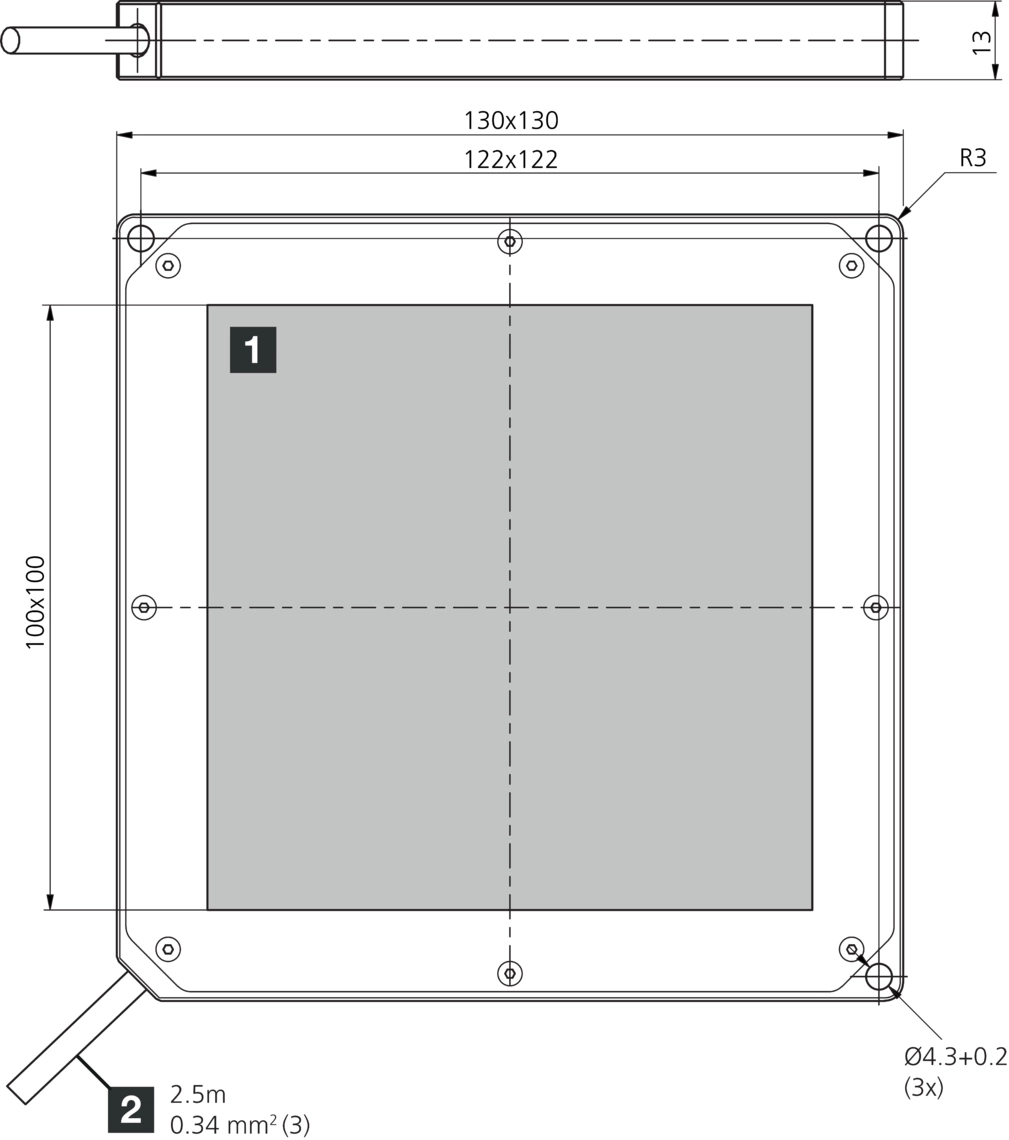

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-F100100-F5-K
Datasheet · DE · 923 KB
- Download
BE-F100-100-FX-K (STP)
Technical drawing · DE · 257 KB
- Download
BE-F100-100-FX-K (IGS)
Technical drawing · DE · 521 KB
- Download
BE-F100-100-Fx-K (DXF)
Technical drawing · DE · 336 KB
Accessories
Power / I/O cables(8)
di-soric
Strom- / I/O-Kabel VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Halterung / Stand(9)
di-soric
Grundhalter HS-GH-12-A
Grundhalter
di-soric
Grundhalter HS-GH-12
Grundhalter
di-soric
Kreuzverbinder HS-K-12-12-A
Kreuzverbinder
di-soric
Montagestange HS-S-12-100-V
Montagestange
di-soric
Montagestange HS-S-12-200-V
Montagestange
di-soric
Montagestange HS-S-12-500-V
Montagestange
di-soric
Klemmzylinder HS-KL-12-20-V
Klemmzylinder
di-soric
Sensorhalter SH-U1-12-150-V
Sensorhalter
di-soric
Sensorhalter HS-S-12-130-M10
Sensorhalter
Adapterring(1)
Description
Externally strobable area lights are suitable for operation on a constant current source or a strobe controller. They are the ideal solution for very short camera exposure times and therefore for very fast processes.
