di-soric

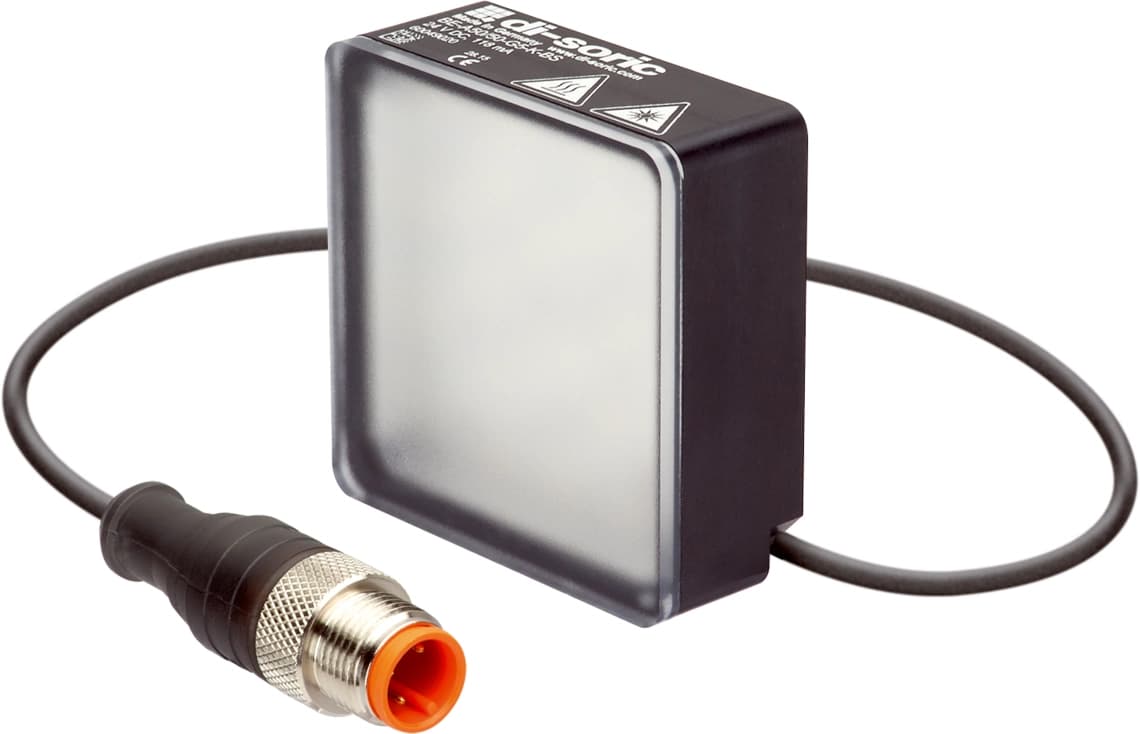

Front lightbeleuchtung BE-A5050-G5-K-BS
Manufacturer part number: BE-A5050-G5-K-BS
Series: BE-A5050
- Emitting area
- 50 × 50 mm
- Light color
- White, 5000 K
- Optical design / beam angle
- Direkt, 130°?
- Connection
- Pigtail, 0.3 m, M12, 3-pin
- Supply
- 24 V DC (Supply Class 2)
- Power consumption
- 2.8 W (24 V DC)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-A5050-G5-K-BS |
|---|---|
| Elektrische Merkmale: Betriebsspannung | 24 V DC (Supply Class 2) |
| Elektrische Merkmale: Eigenstromaufnahme | 118 mA (24 V DC) |
| Elektrische Merkmale: Leistung | 2.8 W (24 V DC) |
| Elektrische Merkmale: Verpolschutz | No |
| Mechanische Merkmale: Leuchtfläche | 50 x 50 mm |
| Mechanische Merkmale: Gehäuseabmaße | 50 x 50 x 20 mm |
| Mechanische Merkmale: Gehäuselänge | 50 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | PMMA, klar (Schutzoptik) |
| Mechanische Merkmale: Gewicht | 90 g |
| Zertifizierungen, Zulassungen: Schutzklasse | III, operation on safety extra-low voltage |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Bauform | Front light |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | White |
| Optische Daten: Wellenlänge | 5000 K |
| Optische Daten: Abstrahlwinkel FWHM | 130° |
| Optische Daten: Beleuchtungsstärke | 5.80 kLx (100.0 mm) 1.60 kLx (200.0 mm) 790 Lux (300.0 mm) |
| Anzeige, Bedienung: Regelung | Without power control |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C (Dauerbetrieb) |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Pigtail, 0.3 m, M12, 3-pin |
| Zubehör: Anschlusskabel | VK … |
| Optical design | Direct |
| Beam angle (manufacturer) | 130° |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

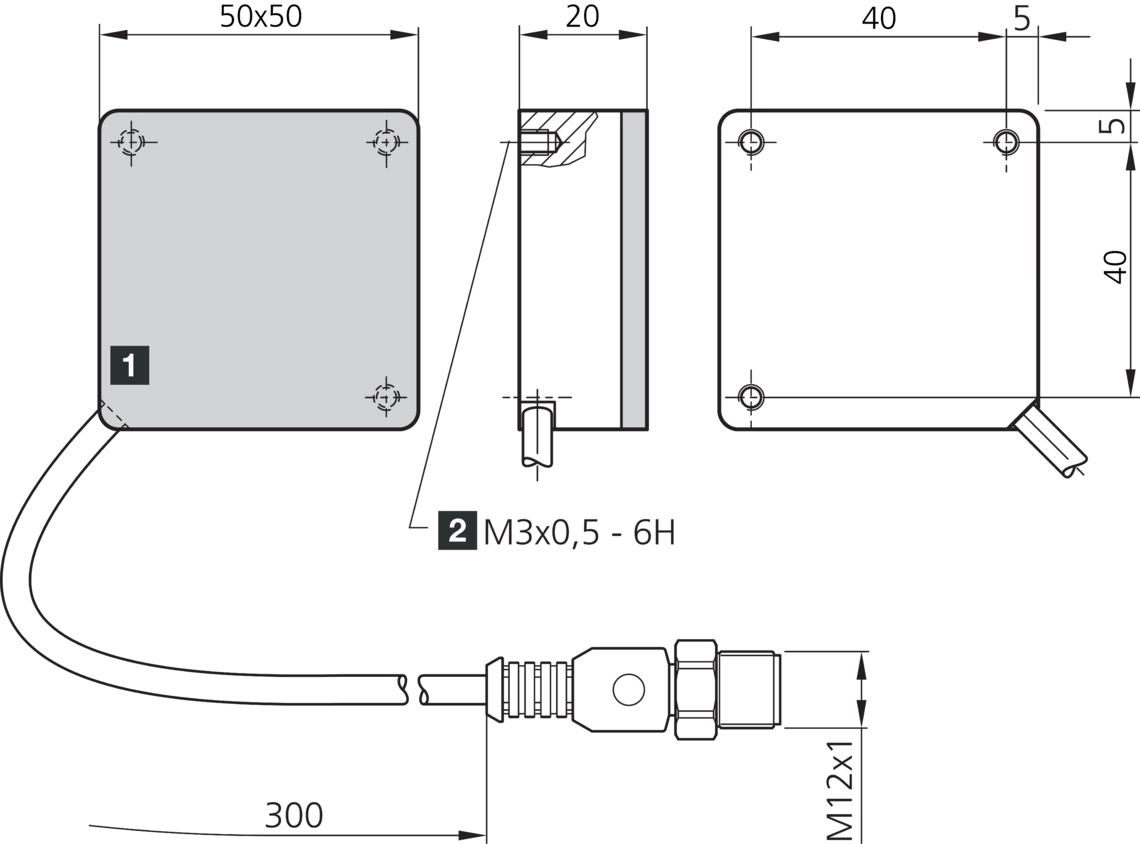

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-A5050-G5-K-BS
Datasheet · DE · 1037 KB
- Download
BE-A50/50-Gx-K-BS (IGS)
Technical drawing · DE · 908 KB
- Download
BE-A50/50-Gx-K-BS (STP)
Technical drawing · DE · 368 KB
Accessories
Power / I/O cables(8)
di-soric
Strom- / I/O-Kabel VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Halterung / Stand(9)
di-soric
Grundhalter HS-GH-12-A
Grundhalter
di-soric
Grundhalter HS-GH-12
Grundhalter
di-soric
Kreuzverbinder HS-K-12-12-A
Kreuzverbinder
di-soric
Montagestange HS-S-12-100-V
Montagestange
di-soric
Montagestange HS-S-12-200-V
Montagestange
di-soric
Montagestange HS-S-12-500-V
Montagestange
di-soric
Klemmzylinder HS-KL-12-20-V
Klemmzylinder
di-soric
Sensorhalter SH-U1-12-150-V
Sensorhalter
di-soric
Sensorhalter HS-S-12-130-M10
Sensorhalter
Adapterring(1)
Description
The bar lights of the BE-A series stand out for their high efficiency and excellent light output. Front optics narrow the beam angle so that the best edge contrast can be achieved in the application. The various sizes provide maximum flexibility in use. The excellent price/performance ratio and the technical features make this an easy entry point for applications in ID reading and similar tasks.
