di-soric
Front lightbeleuchtung BE-A5050-G1-K-BS
Manufacturer part number: BE-A5050-G1-K-BS
Series: BE-A5050
- Emitting area
- 50 × 50 mm
- Light color
- Red, 625 nm
- Optical design / beam angle
- Direkt, 120°?
- Connection
- Pigtail, 0.3 m, M12, 3-pin
- Supply
- 24 V DC (Supply Class 2)
- Power consumption
- 2.9 W (24 V DC)
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-A5050-G1-K-BS |
|---|---|
| Elektrische Merkmale: Betriebsspannung | 24 V DC (Supply Class 2) |
| Elektrische Merkmale: Eigenstromaufnahme | 120 mA (24 V DC) |
| Elektrische Merkmale: Leistung | 2.9 W (24 V DC) |
| Elektrische Merkmale: Verpolschutz | No |
| Mechanische Merkmale: Leuchtfläche | 50 x 50 mm |
| Mechanische Merkmale: Gehäuseabmaße | 50 x 50 x 20 mm |
| Mechanische Merkmale: Gehäuselänge | 50 mm |
| Mechanische Merkmale: Gehäusehöhe | 20 mm |
| Mechanische Merkmale: Gehäusebreite | 50 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | PMMA, klar (Schutzoptik) |
| Mechanische Merkmale: Gewicht | 90 g |
| Zertifizierungen, Zulassungen: Schutzklasse | III, operation on safety extra-low voltage |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Bauform | Front light |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | Red |
| Optische Daten: Wellenlänge | 625 nm |
| Optische Daten: Abstrahlwinkel FWHM | 120° |
| Optische Daten: Beleuchtungsstärke | 3.20 kLx (100.0 mm) 9.00 kLx (200.0 mm) 450 Lux (300.0 mm) |
| Anzeige, Bedienung: Regelung | Without power control |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C (Dauerbetrieb) |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Pigtail, 0.3 m, M12, 3-pin |
| Zubehör: Anschlusskabel | VK … |
| Optical design | Direct |
| Beam angle (manufacturer) | 120° |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

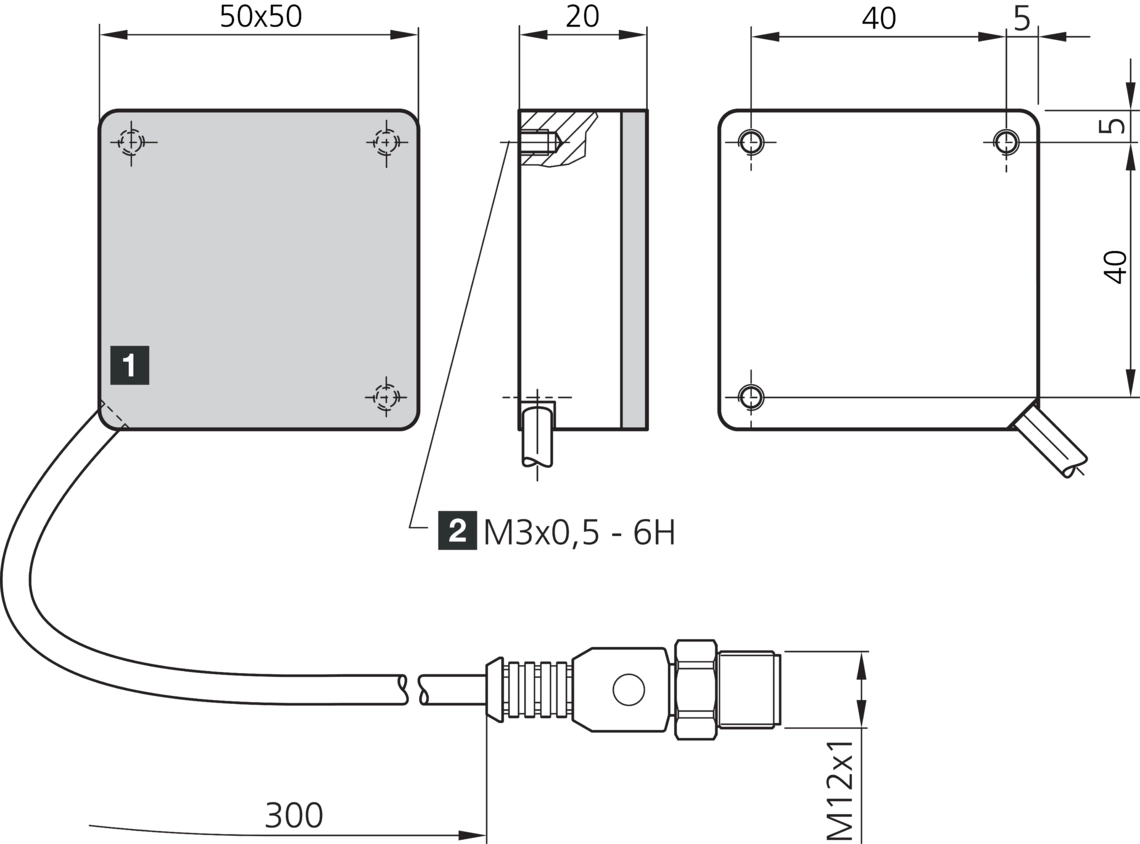

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-A5050-G1-K-BS
Datasheet · DE · 1 MB
- Download
BE-A50/50-Gx-K-BS (IGS)
Technical drawing · DE · 908 KB
- Download
BE-A50/50-Gx-K-BS (STP)
Technical drawing · DE · 368 KB
Accessories
Power / I/O cables(8)
di-soric
Power / I/O cable VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Power / I/O cable VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Power / I/O cable VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Power / I/O cable VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Power / I/O cable VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Power / I/O cable VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Power / I/O cable VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Power / I/O cable VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Halterung / Stand(9)
di-soric
Base holder HS-GH-12-A
Base holder
di-soric
Base holder HS-GH-12
Base holder
di-soric
Cross connector HS-K-12-12-A
Cross connector
di-soric
Mounting rod HS-S-12-100-V
Mounting rod
di-soric
Mounting rod HS-S-12-200-V
Mounting rod
di-soric
Mounting rod HS-S-12-500-V
Mounting rod
di-soric
Clamping cylinder HS-KL-12-20-V
Clamping cylinder
di-soric
Sensor holder SH-U1-12-150-V
Sensor holder
di-soric
Sensor holder HS-S-12-130-M10
Sensor holder
Adapterring(1)
More variants in this series
More di-soric products in this category
- Front lightbeleuchtung BE-A300-F0-K
- Front lightbeleuchtung BE-A300-F1-K
- Front lightbeleuchtung BE-A300-F5-K
- Front lightbeleuchtung BE-A3030-G1-K-BS
- Front lightbeleuchtung BE-A3030-G5-K-BS
- Front lightbeleuchtung BEK-A100-G0T-K-BS
- Front lightbeleuchtung BEK-A100-G1T-K-BS
- Front lightbeleuchtung BEK-A100-G2T-K-BS
- Front lightbeleuchtung BEK-A100-G3T-K-BS
- Front lightbeleuchtung BEK-A100-G5T-K-BS
- Front lightbeleuchtung BEK-A200-G1T-K-BS
Description
The bar lights of the BE-A series stand out for their high efficiency and excellent light output. Front optics narrow the beam angle so that the best edge contrast can be achieved in the application. The various sizes provide maximum flexibility in use. The excellent price/performance ratio and the technical features make this an easy entry point for applications in ID reading and similar tasks.
