di-soric

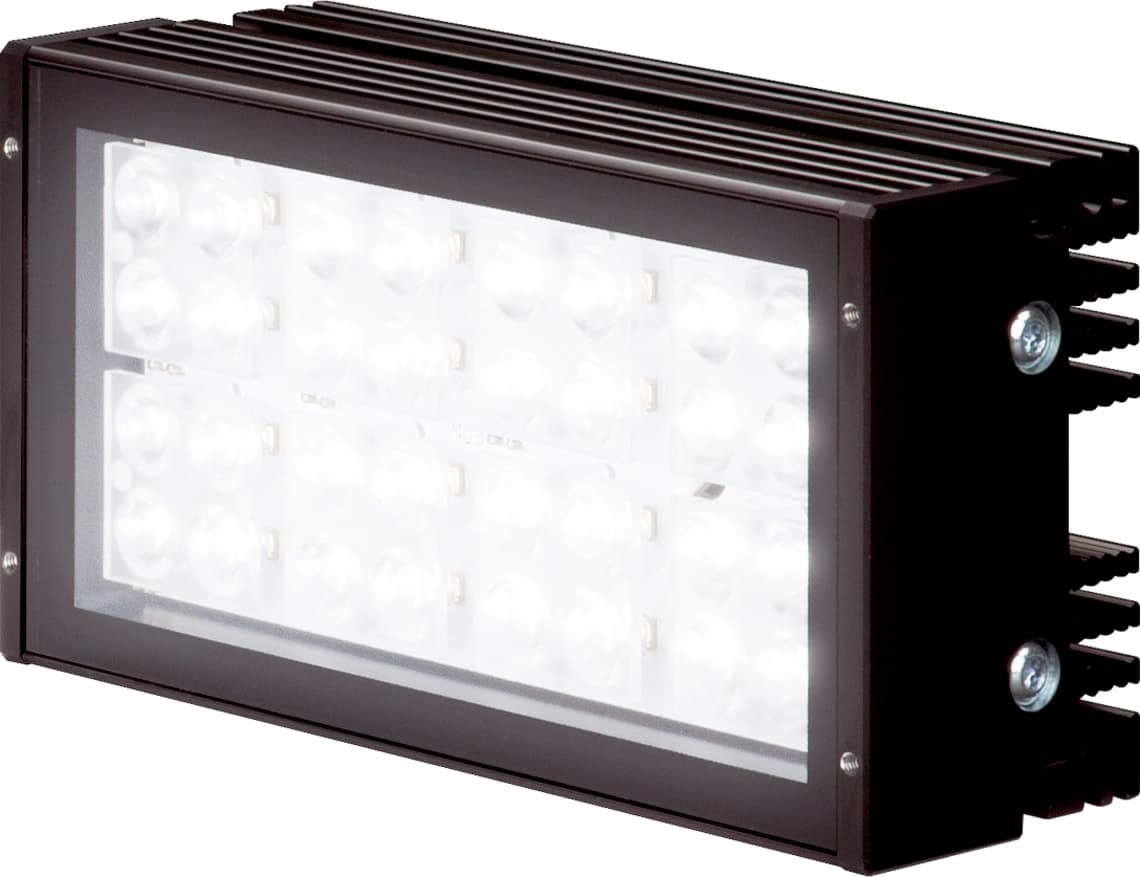

Front lightbeleuchtung BE-A100-F5-K
Manufacturer part number: BE-A100-F5-K
Series: BE-A100
- Emitting area
- 96 × 46 mm
- Light color
- White, 6000 K
- Optical design / beam angle
- 30°?
- Connection
- Cable, 2.5 m (open end, operation only with a flash controller)
- Supply
- Not a constant-voltage supply
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-A100-F5-K |
|---|---|
| Elektrische Merkmale: Leistungsaufnahme (im Puls/max.) | 250 W |
| Elektrische Merkmale: Bestromungsfaktor (im Puls/max.) | 8 |
| Elektrische Merkmale: Bestromung (im Puls/max.) | 8000 mA |
| Elektrische Merkmale: Betriebsspannung | Not a constant-voltage supply |
| Mechanische Merkmale: Leuchtfläche | 96 x 46 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | PUR (cable) PMMA, kratzfest beschichtet (Schutzoptik) |
| Mechanische Merkmale: Gewicht | 450 g |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Risk group 2 |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Bauform | Front light |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | White |
| Optische Daten: Wellenlänge | 6000 K |
| Optische Daten: Abstrahlwinkel FWHM | 30° |
| Optische Daten: Beleuchtungsstärke | 289 kLx (100.0 mm / 100 %) 880 kLx (100.0 mm / 400 %) 1200 kLx (100.0 mm / 800 %) 148 kLx (200.0 mm / 100 %) 430 kLx (200.0 mm / 400 %) 640 kLx (200.0 mm / 800 %) 35.0 kLx (500.0 mm / 100 %) 92.0 kLx (500.0 mm / 400 %) 150 kLx (500.0 mm / 800 %) 9.50 kLx (1000.0 mm / 100 %) 21.0 kLx (1000.0 mm / 400 %) 44.0 kLx (1000.0 mm / 800 %) |
| Anzeige, Bedienung: Regelung | Blitzbar per Flash-Controller |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Cable, 2.5 m (open end, operation only with a flash controller) |
| Beam angle (manufacturer) | 30° |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

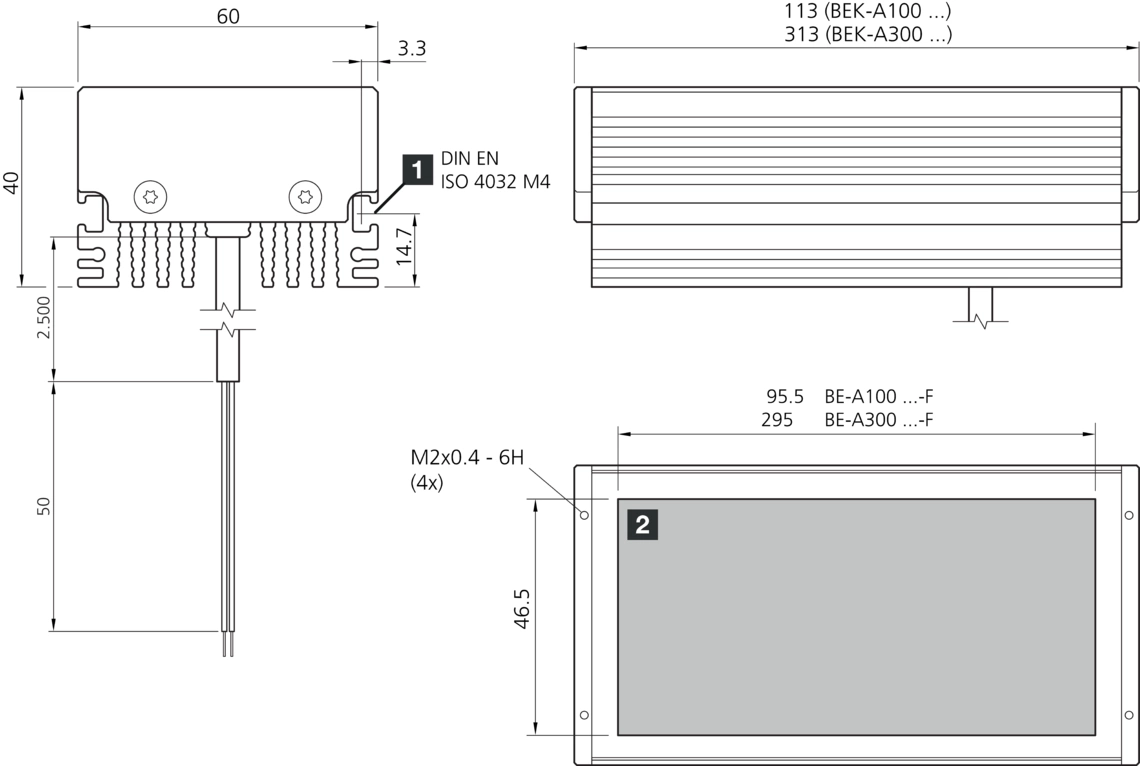

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-A100-F5-K
Datasheet · DE · 1 MB
- Download
BE-A100-Fx-K (IGS)
Technical drawing · DE · 5 MB
- Download
BE-A100-Fx-K (STP)
Technical drawing · DE · 3 MB
Accessories
Power / I/O cables(8)
di-soric
Power / I/O cable VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Power / I/O cable VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Power / I/O cable VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Power / I/O cable VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Power / I/O cable VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Power / I/O cable VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Power / I/O cable VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Power / I/O cable VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Halterung / Stand(9)
di-soric
Base holder HS-GH-12-A
Base holder
di-soric
Base holder HS-GH-12
Base holder
di-soric
Cross connector HS-K-12-12-A
Cross connector
di-soric
Mounting rod HS-S-12-100-V
Mounting rod
di-soric
Mounting rod HS-S-12-200-V
Mounting rod
di-soric
Mounting rod HS-S-12-500-V
Mounting rod
di-soric
Clamping cylinder HS-KL-12-20-V
Clamping cylinder
di-soric
Sensor holder SH-U1-12-150-V
Sensor holder
di-soric
Sensor holder HS-S-12-130-M10
Sensor holder
Adapterring(1)
More variants in this series
More di-soric products in this category
Description
Externally strobable bar lights are suitable for operation on a constant current source or a strobe controller. They are the ideal solution for very short camera exposure times and therefore for very fast processes.
