di-soric
Front lightbeleuchtung BE-A100-F0-K
Manufacturer part number: BE-A100-F0-K
Series: BE-A100
- Emitting area
- 96 × 46 mm
- Light color
- Infrared, 850 nm
- Optical design / beam angle
- 30°?
- Connection
- Cable, 2.5 m (open end, operation only with a flash controller)
- Supply
- Not a constant-voltage supply
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-A100-F0-K |
|---|---|
| Elektrische Merkmale: Leistungsaufnahme (im Puls/max.) | 290 W |
| Elektrische Merkmale: Bestromungsfaktor (im Puls/max.) | 9.33 |
| Elektrische Merkmale: Bestromung (im Puls/max.) | 20000 mA |
| Elektrische Merkmale: Betriebsspannung | Not a constant-voltage supply |
| Mechanische Merkmale: Leuchtfläche | 96 x 46 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | PUR (cable) PMMA, kratzfest beschichtet (Schutzoptik) |
| Mechanische Merkmale: Gewicht | 450 g |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Risk group 1 |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Bauform | Front light |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | Infrared |
| Optische Daten: Wellenlänge | 850 nm |
| Optische Daten: Abstrahlwinkel FWHM | 30° |
| Optische Daten: Beleuchtungsstärke | 600000 µW/cm² (100.0 mm / 1300 %) 280000 µW/cm² (200.0 mm / 1300 %) 60000 µW/cm² (500.0 mm / 1300 %) 16000 µW/cm² (1000.0 mm / 1300 %) |
| Anzeige, Bedienung: Regelung | Blitzbar per Flash-Controller |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Cable, 2.5 m (open end, operation only with a flash controller) |
| Beam angle (manufacturer) | 30° |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

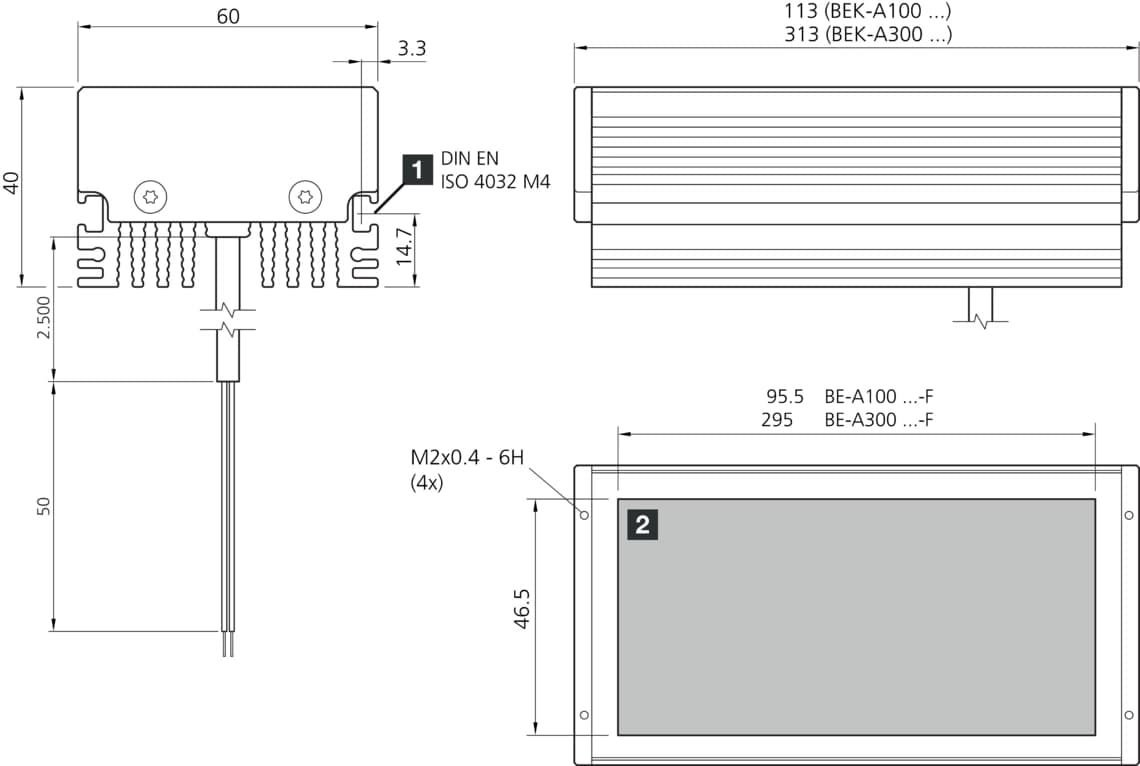

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-A100-F0-K
Datasheet · DE · 1 MB
- Download
BE-A100-Fx-K (IGS)
Technical drawing · DE · 5 MB
- Download
BE-A100-Fx-K (STP)
Technical drawing · DE · 3 MB
Accessories
Power / I/O cables(8)
di-soric
Strom- / I/O-Kabel VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Halterung / Stand(9)
di-soric
Grundhalter HS-GH-12-A
Grundhalter
di-soric
Grundhalter HS-GH-12
Grundhalter
di-soric
Kreuzverbinder HS-K-12-12-A
Kreuzverbinder
di-soric
Montagestange HS-S-12-100-V
Montagestange
di-soric
Montagestange HS-S-12-200-V
Montagestange
di-soric
Montagestange HS-S-12-500-V
Montagestange
di-soric
Klemmzylinder HS-KL-12-20-V
Klemmzylinder
di-soric
Sensorhalter SH-U1-12-150-V
Sensorhalter
di-soric
Sensorhalter HS-S-12-130-M10
Sensorhalter
Adapterring(1)
Description
Externally strobable bar lights are suitable for operation on a constant current source or a strobe controller. They are the ideal solution for very short camera exposure times and therefore for very fast processes.
