HIKROBOT
lens MVL-LF3540M-F
Manufacturer part number: MVL-LF3540M-F · 310101901
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k at 5 µm µm
- Bildkreis
- Ø43.2 mm
- Abbildungsmaßstab
- 0.001 – 0.05 ×
- Focal length
- 35 mm
- Arbeitsabstand
- 700 mm
- Mount
- F-Mount
- Aperture
- F4.0 - F16
- Verzeichnung
- 0.46 %
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-LF3540M-F |
|---|---|
| Focal length | 35 mm |
| Line resolution | 8k |
| Recommended pixel size | 5 µm |
| Mount | F-mount |
| Flange back length | 46.5 mm |
| Working distance | 700 mm to inf mm (tolerance: ±5 mm) |
| Conjugate distance | 816 mm to inf mm (tolerance: ±9 mm) |
| Magnification | 0.05 x to 0.001 x |
| F-number | F4.0 to F16 |
| Optical distortion | 0.46 % |
| Image size | Φ43.2 mm |
| Filter thread | M52 × P0.75 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 67.12 mm to 73.62 mm |
| Diameter | Ø61 mm |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 700 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

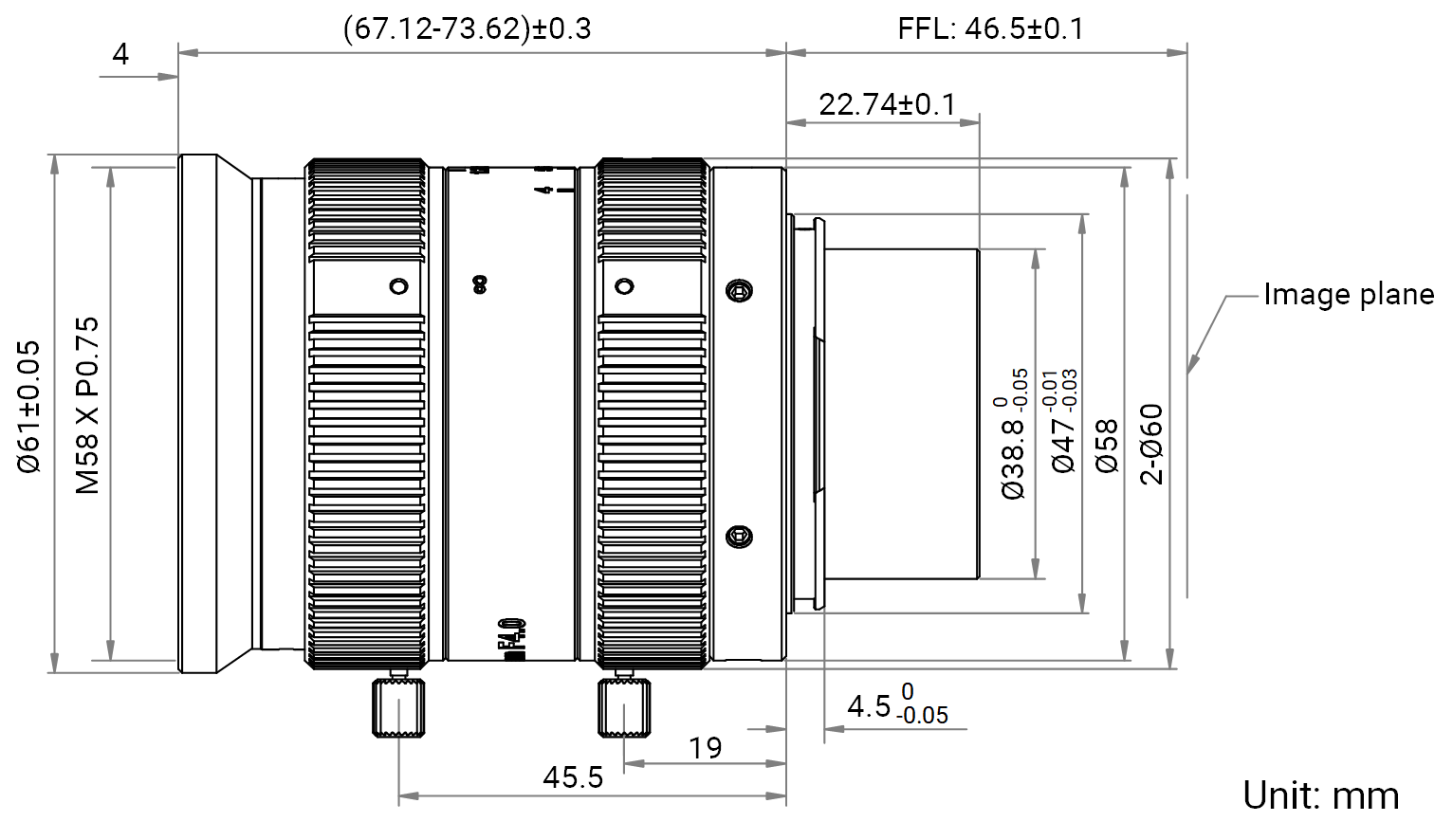

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-LF3540M-F
Datasheet · DE · 439 KB
- Download
Technical drawing HikRobot Objektiv MVL-LF3540M-F
Technical drawing · DE · 16 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Adopts high-precision lens for 8k 5 µm line scan cameras and full-frame area scan cameras. - Provides excellent consistency of image clarity and low distortion. - Provides ultra-high image resolution at the max. aperture of F4. - Provides max. image size Φ43.2 mm.
