HIKROBOT
lens MVL-LF8040M-F
Manufacturer part number: MVL-LF8040M-F · 102202048
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k / 16k at 3.5 µm/5 µm/7 µm µm
- Bildkreis
- Ø56 mm
- Abbildungsmaßstab
- 0.01 – 0.4 ×
- Focal length
- 80 mm
- Arbeitsabstand
- 235 mm
- Mount
- F-Mount
- Aperture
- F4.0 - F22
- Verzeichnung
- 0.12 %
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-LF8040M-F |
|---|---|
| Focal length | 80 mm |
| Line resolution | 8k/16k |
| Recommended pixel size | 3.5 µm/5 µm/7 µm |
| Mount | F-mount |
| Flange back length | 46.5 mm |
| Working distance | 235 mm to inf mm |
| Magnification | 0.4x to 0.01x |
| F-number | F4.0 to F22 |
| Optical distortion | 0.12 % |
| Image size | Ø56 mm |
| Filter thread | M52 × 0.75 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 120.5 mm |
| Diameter | Ø63 mm |
| Weight | 601.0 g (1.32 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 235 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

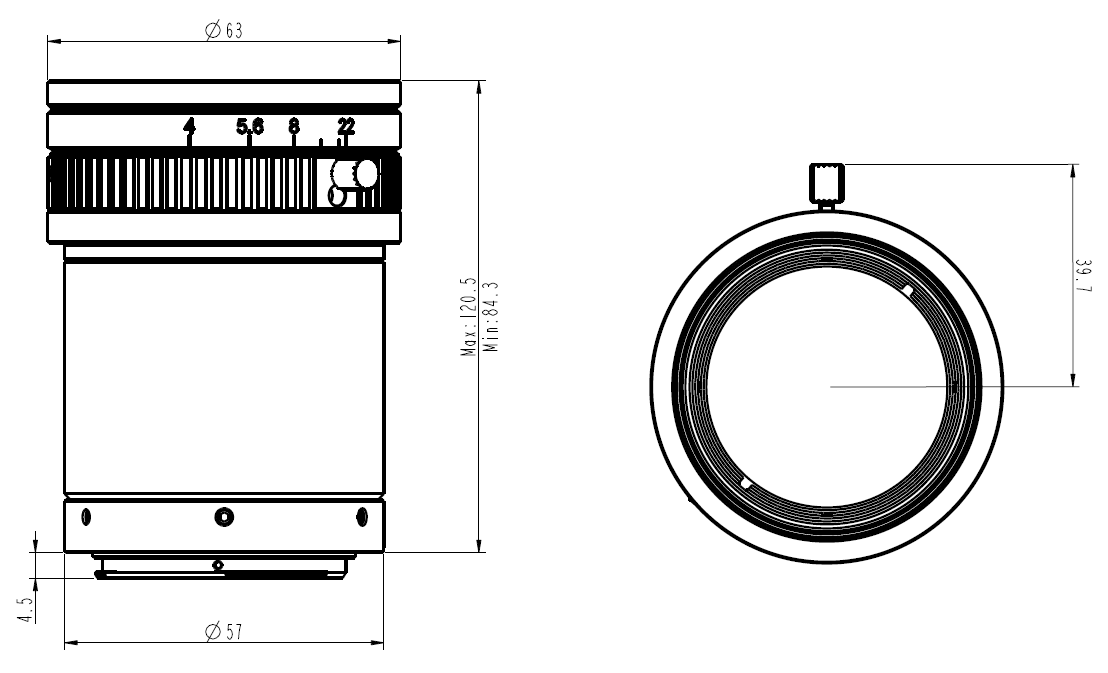

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-LF8040M-F
Datasheet · DE · 530 KB
- Download
Technical drawing HikRobot Objektiv MVL-LF8040M-F
Technical drawing · DE · 6 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Ultra-high central image clarity, up to 3.1µm resolution - Low distortion and high relative illumination - Image size Φ56 mm, supporting large target area scan cameras, 8K 5µm, 8K 7µm, 16K 3.5µm line scan cameras - Optimize optical design for different magnification
