HIKROBOT
lens MVL-AF3528M-M42A
Manufacturer part number: MVL-AF3528M-M42A · 310101902
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k at 7 µm µm
- Bildkreis
- Ø29 mm
- Abbildungsmaßstab
- 0.001 – 0.164 ×
- Focal length
- 35 mm
- Arbeitsabstand
- 200 mm
- Mount
- M42
- Aperture
- F2.8 - F16
- Verzeichnung
- -0.16 %
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-AF3528M-M42A |
|---|---|
| Brennweite | 35 mm |
| Abbildungsmaßstab | 0.001 – 0.164 × |
| Zeilenauflösung | 8k |
| Empfohlene Pixelgröße | 7 µm |
| Max. Sensorformat | Nicht angegeben |
| Anschluss | M42 |
| Auflagemaß | 12 mm |
| Mindestobjektdistanz (MOD) | 200 mm |
| Arbeitsabstand | 200 - ∞ |
| Blende | F2.8 - F16 |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | -0.16 % |
| Bildkreis | Ø29 mm |
| Filtergewinde | M52 × 0.75 |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | Nicht angegeben |
| Baulänge | 102.5 mm |
| Durchmesser | Ø 55 mm |
| Minimum object distance (MOD) | 200 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

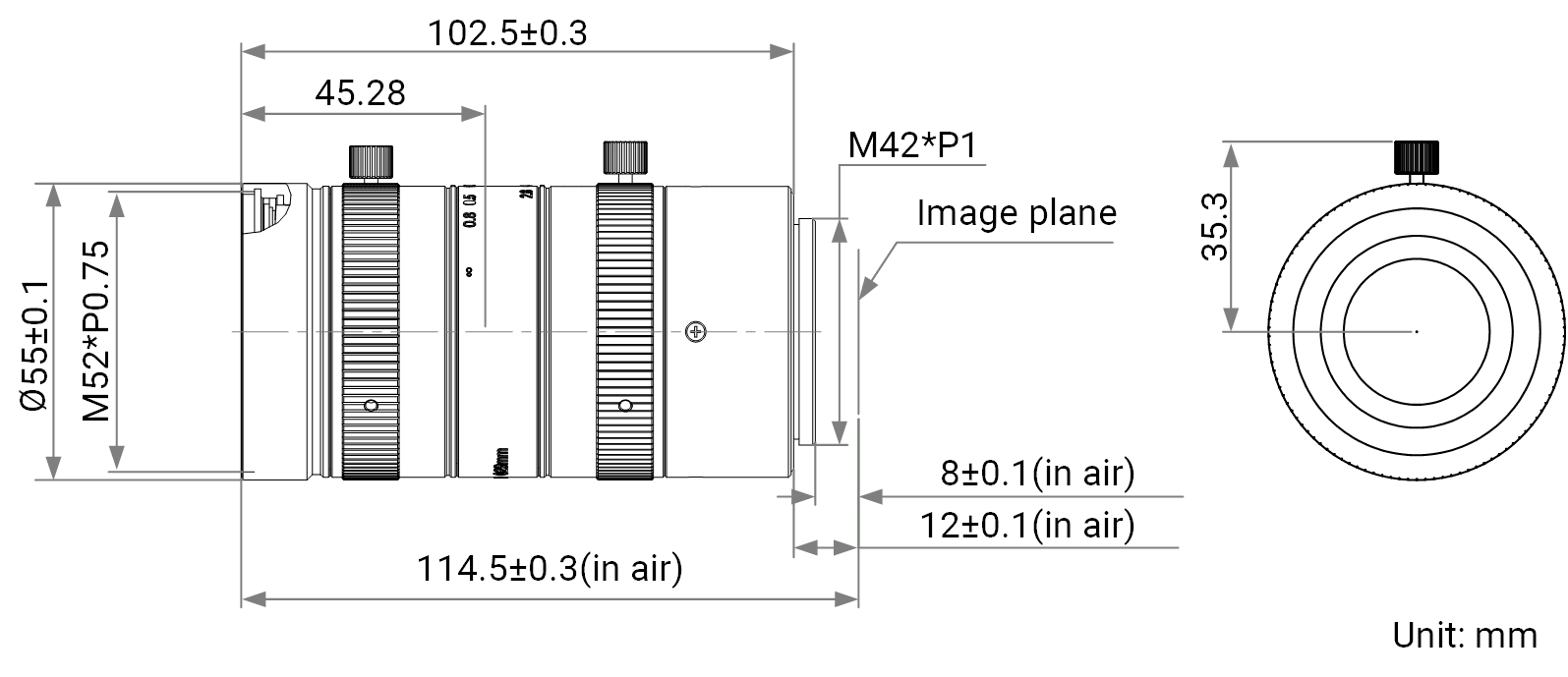

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-AF3528M-M42A
Datasheet · DE · 426 KB
- Download
Technical drawing HikRobot Objektiv MVL-AF3528M-M42A
Technical drawing · DE · 2 MB
Accessories
Description
Key Feature - Adopts high-precision lens for 8k 7 µm line scan cameras. - Provides excellent consistency of image clarity and low distortion. - Provides ultra-high image resolution at the max. aperture of F2.8. - Provides max. image size Φ29 mm.
