HIKROBOT
lens MVL-AF2045M-M42
Manufacturer part number: MVL-AF2045M-M42 · 102203107
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 4k at 7 µm µm
- Bildkreis
- Ø30 mm
- Abbildungsmaßstab
- 0.02 – 0.1 ×
- Focal length
- 20 mm
- Arbeitsabstand
- 150 – 999 mm
- Mount
- M42
- Aperture
- F4.5 - C
- Verzeichnung
- 0.20 %
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-AF2045M-M42 |
|---|---|
| Brennweite | 20 mm |
| Abbildungsmaßstab | 0.02 – 0.1 × |
| Zeilenauflösung | 4k |
| Empfohlene Pixelgröße | 7 µm |
| Max. Sensorformat | Nicht angegeben |
| Anschluss | M42 |
| Auflagemaß | 12 mm |
| Mindestobjektdistanz (MOD) | 150 mm |
| Arbeitsabstand | 150 - 999 mm |
| Blende | F4.5 - C |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | 0.20 % |
| Bildkreis | Ø30 mm |
| Filtergewinde | M43 × 0.75 |
| Blendensteuerung | Nicht zutreffend |
| Vibrationsfest | Nicht angegeben |
| Baulänge | 48.8 – 51.4 mm |
| Durchmesser | Ø 52.7 mm |
| Gewicht | 243 g |
| Minimum object distance (MOD) | 150 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

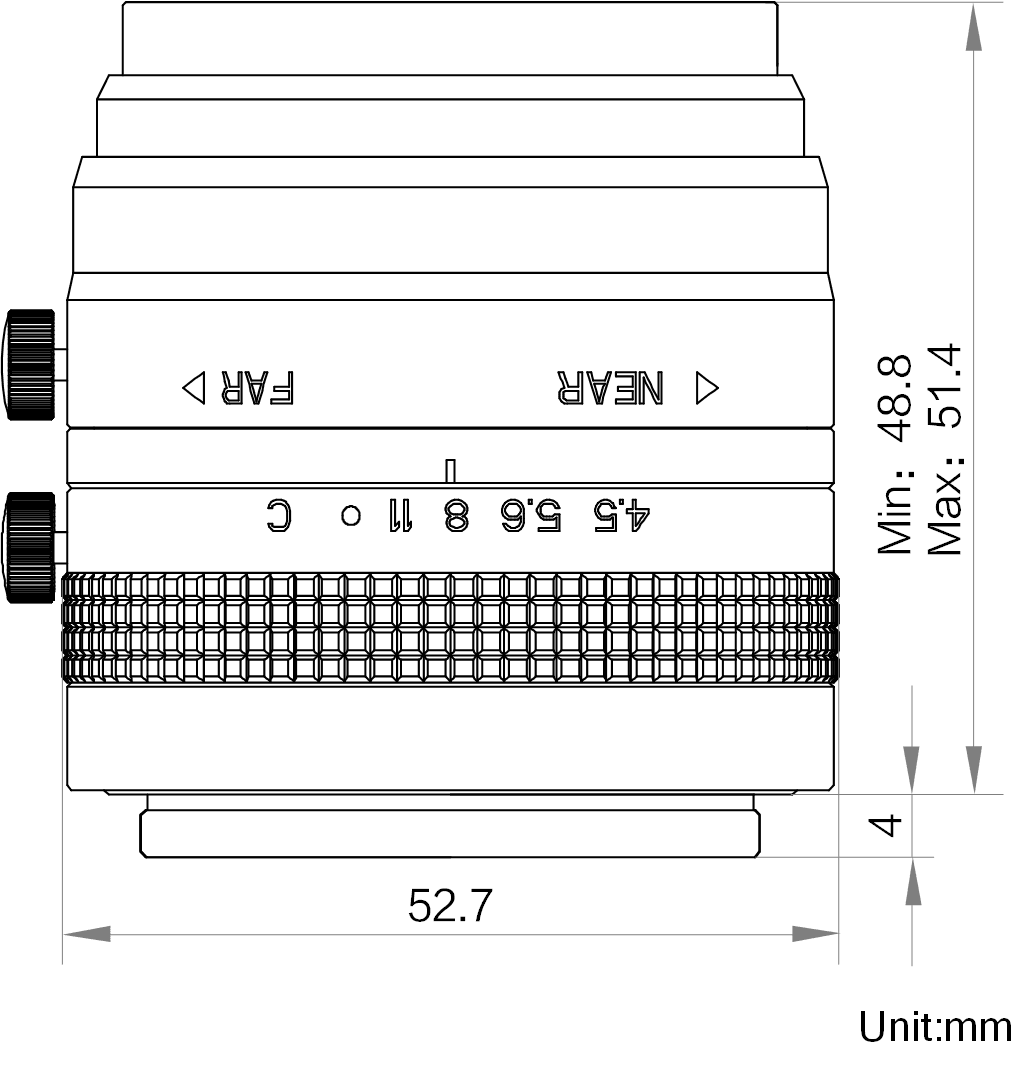

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-AF2045M-M42
Datasheet · DE · 381 KB
- Download
Technical drawing HikRobot Objektiv MVL-AF2045M-M42
Technical drawing · DE · 1 MB
Accessories
Description
Key Feature - Provides excellent consistency of image clarity. - Provides low distortion. - Provides max. image size Φ30 mm for APS-C area scan and 4k 7 µm line scan cameras.
