HIKROBOT
lens MVL-AF2840M-M42
Manufacturer part number: MVL-AF2840M-M42 · 310100756
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 4k at 7 µm µm
- Bildkreis
- Ø30 mm
- Abbildungsmaßstab
- 0.05 – 0.3 ×
- Focal length
- 28 mm
- Arbeitsabstand
- 103 – 595 mm
- Mount
- M42
- Aperture
- F4.0 - F11
- Verzeichnung
- 0.1 %
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-AF2840M-M42 |
|---|---|
| Focal length | 28 mm |
| Line resolution | 4k |
| Recommended pixel size | 7 µm |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Working distance | 103 mm to 595 mm |
| Magnification | 0.3x to 0.05x |
| F-number | F4.0 to F11 |
| Optical distortion | 0.1 % |
| Image size | Ø30 mm |
| Filter thread | M35 × 0.5 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 54.6 mm to 62.6 mm |
| Diameter | Ø48.1 mm |
| Weight | 162 g (0.4 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 103 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

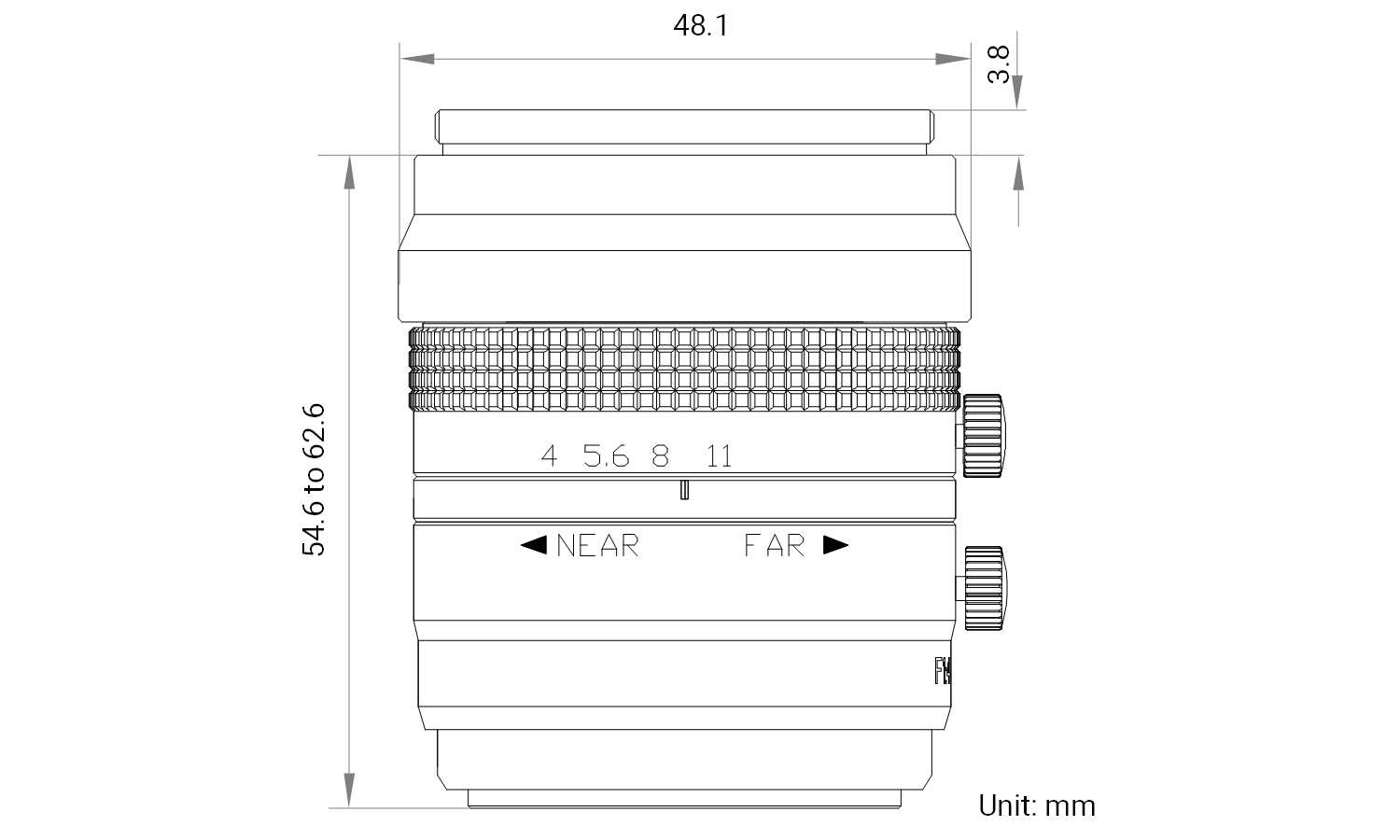

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-AF2840M-M42
Datasheet · DE · 332 KB
- Download
Technical drawing HikRobot Objektiv MVL-AF2840M-M42
Technical drawing · DE · 2 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Provides excellent consistency of image clarity. - Provides low distortion. - Provides max. image size Ø30 mm for APS-C area scan and 4k 7 µm line scan cameras.
