HIKROBOT
lens MVL-AF5040M-M42
Manufacturer part number: MVL-AF5040M-M42 · 102203111
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 4k at 7 µm µm
- Bildkreis
- Ø37 mm
- Abbildungsmaßstab
- 0.01 – 0.323 ×
- Focal length
- 50 mm
- Arbeitsabstand
- 150 mm
- Mount
- M42
- Aperture
- F4 - F22
- Verzeichnung
- 0.21 %
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-AF5040M-M42 |
|---|---|
| Focal length | 50 mm |
| Line resolution | 4k |
| Recommended pixel size | 7 µm |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Working distance | 150 mm to inf mm |
| Magnification | 0.323 x to 0.01 x |
| F-number | F4 to F22 |
| Optical distortion | 0.21 % |
| Image size | Φ37 mm |
| Filter thread | M52 × 0.75 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 133.2 mm |
| Diameter | Ø59 mm |
| Weight | 615 g (1.4 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 150 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

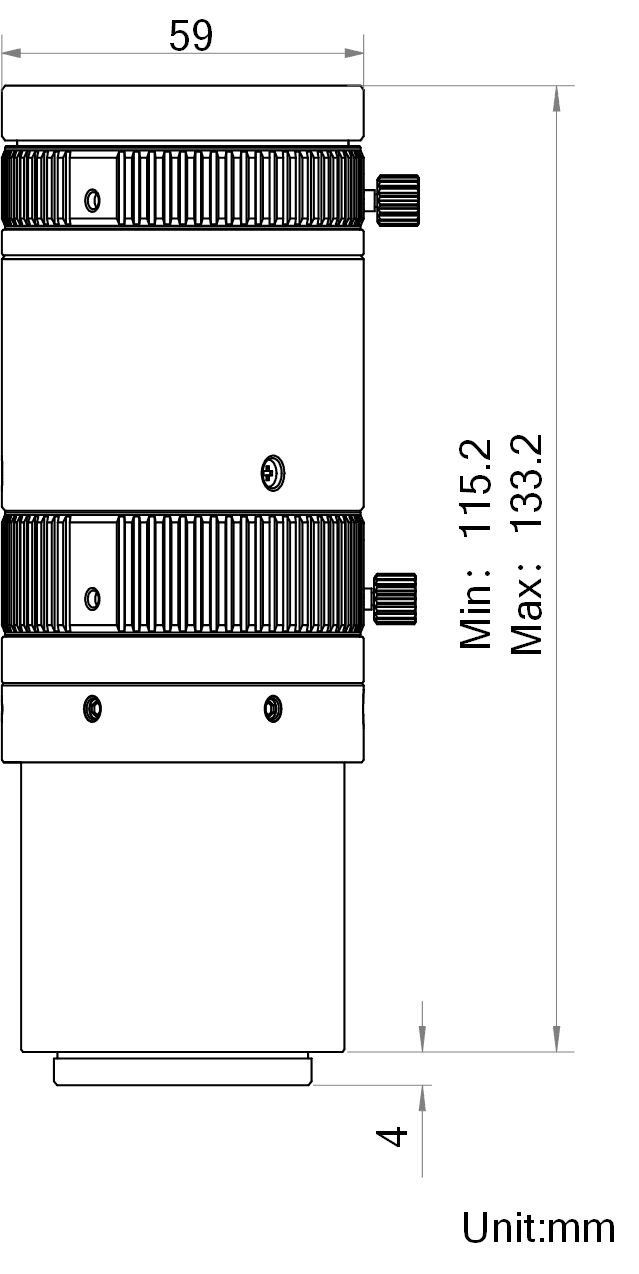

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-AF5040M-M42
Datasheet · DE · 646 KB
- Download
Technical drawing HikRobot Objektiv MVL-AF5040M-M42
Technical drawing · DE · 1 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Provides ultra-high image resolution and compatible with 3.1 µm resolution. - Provides excellent consistency of image clarity, large aperture, low distortion, low chromatic aberration, and high relative illumination. - Provides max. image size Φ37 mm for APS-C area scan and 4k 7 µm line scan cameras.
