HIKROBOT
lens MVL-AF4028M-M42
Manufacturer part number: MVL-AF4028M-M42 · 102203109
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 4k
- Bildkreis
- Ø37 mm
- Abbildungsmaßstab
- 0.04 – 0.22 ×
- Focal length
- 40 mm
- Arbeitsabstand
- 200 – 1051 mm
- Mount
- M42
- Aperture
- F2.8 - F22
- Verzeichnung
- 0.62 %
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-AF4028M-M42 |
|---|---|
| Focal length | 40 mm |
| Max. sensor format | APS-C |
| Line resolution | 4k |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Working distance | 200 mm to 1051 mm |
| Magnification | 0.22 x to 0.04 x |
| F-number | F2.8 to F22 |
| Optical distortion | 0.62 % |
| Image size | Φ37 mm |
| Filter thread | M37 × 0.75 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 50.5 mm to 62.7 mm |
| Diameter | Ø47.6 mm |
| Weight | 171 g (0.4 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 200 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

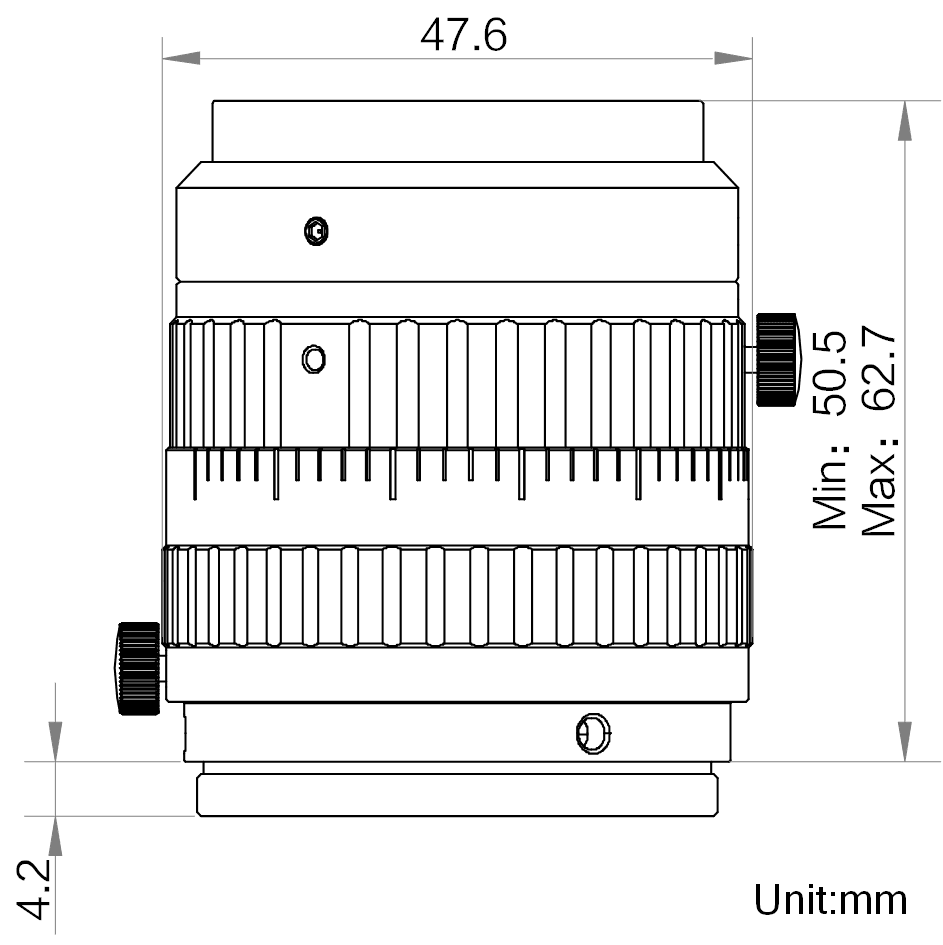

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-AF4028M-M42
Datasheet · DE · 348 KB
- Download
Technical drawing HikRobot Objektiv MVL-AF4028M-M42
Technical drawing · DE · 1017 KB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Provides excellent consistency of image clarity. - Provides large aperture, low distortion, low chromatic aberration, and high relative illumination. - Provides max. image size Φ37 mm for APS-C area scan and 4k line scan cameras.
