HIKROBOT
lens MVL-LF3528M-F
Manufacturer part number: MVL-LF3528M-F · 102202628
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k at 5 µm µm
- Bildkreis
- Ø43.2 mm
- Abbildungsmaßstab
- 0.05 – 0.25 ×
- Focal length
- 35 mm
- Arbeitsabstand
- 129 – 728 mm
- Mount
- F-Mount
- Aperture
- F2.8 - F16
- Verzeichnung
- 0.40 %
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-LF3528M-F |
|---|---|
| Focal length | 35 mm |
| Line resolution | 8k |
| Recommended pixel size | 5 µm |
| Mount | F-mount |
| Flange back length | 46.5 mm |
| Working distance | 129 mm to 728 mm |
| Magnification | 0.25 x to 0.05 x |
| F-number | F2.8 to F16 |
| Optical distortion | 0.40 % |
| Image size | Φ43.2 mm |
| Filter thread | M58 × 0.75 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 81.5 mm |
| Diameter | Ø61 mm |
| Weight | 536 g (1.2 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 129 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

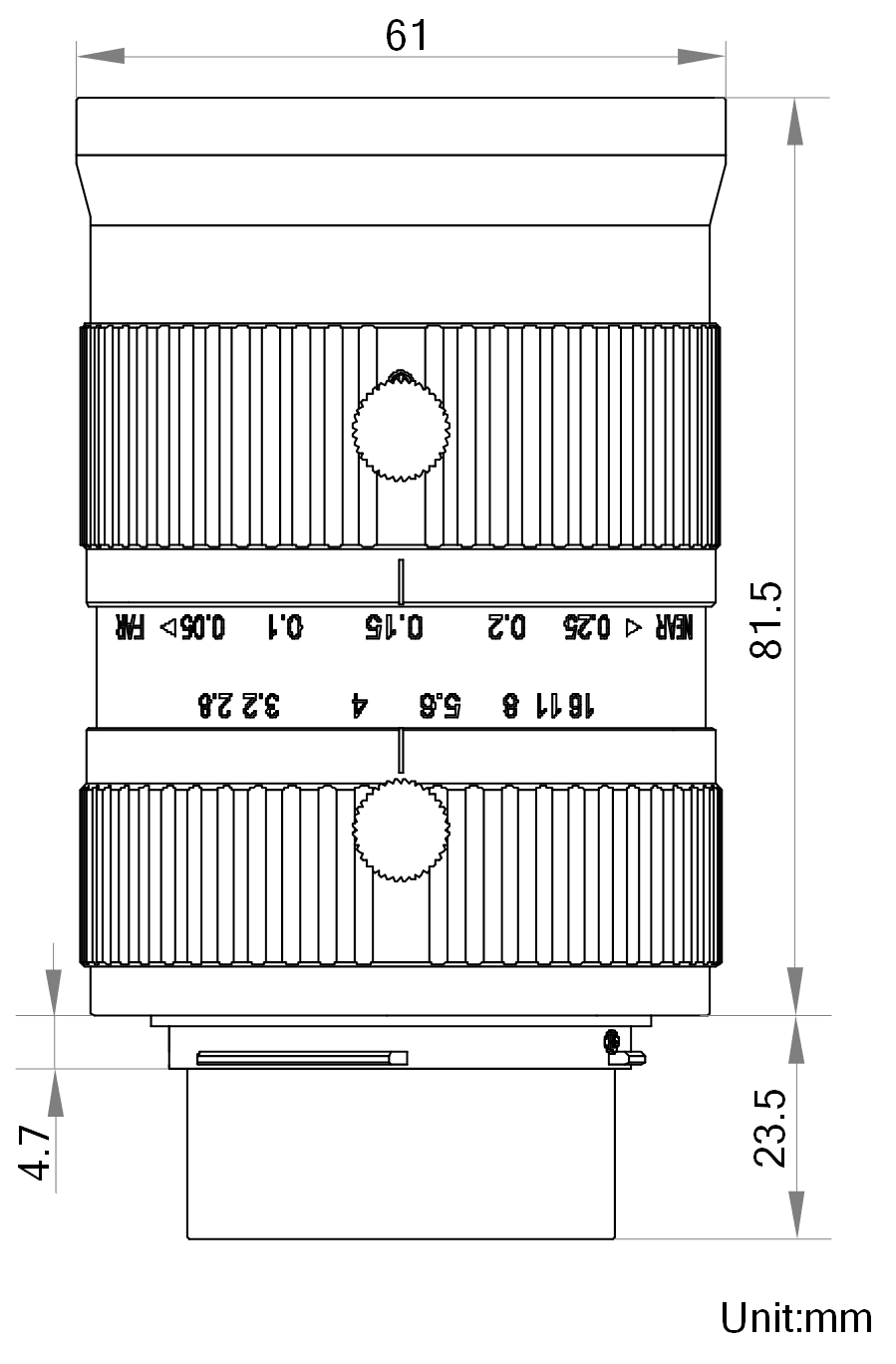

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-LF3528M-F
Datasheet · DE · 430 KB
- Download
Technical drawing HikRobot Objektiv MVL-LF3528M-F
Technical drawing · DE · 6 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Provides ultra-high consistency of image clarity. - Provides ultra-low distortion and high peripheral brightness ratio. - Provides image size Φ43.2 mm for large format area scan and 8k 5 µm line scan cameras. - Optimizes optical designs for magnification.
