HIKROBOT
lens MVL-LF3040M-005-M72
Manufacturer part number: MVL-LF3040M-005-M72 · 310102270
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k at 7 µm µm
- Bildkreis
- Ø58 mm
- Abbildungsmaßstab
- 0.031 – 0.145 ×
- Focal length
- 30 mm
- Arbeitsabstand
- 205 – 1000 mm
- Mount
- M72
- Aperture
- F4.0 - F16
- Verzeichnung
- -0.84 %
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-LF3040M-005-M72 |
|---|---|
| Focal length | 30 mm |
| Line resolution | 8k |
| Recommended pixel size | 7 µm |
| Mount | M72 × P0.75 |
| Flange back length | 12 mm |
| Working distance | 205 mm to 1000 mm (tolerance: ± 5 mm) |
| Conjugate distance | 345 mm to 1137 mm (tolerance: ± 9 mm) |
| Magnification | 0.145 x to 0.031 x |
| F-number | F4.0 to F16 |
| Optical distortion | −0.84 % |
| Image size | Φ58 mm |
| Iris control | Manual |
| Focus control | Manual |
| Length | 123.93 mm |
| Diameter | Ø76 mm |
| Weight | 797 g (1.8 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 205 mm |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

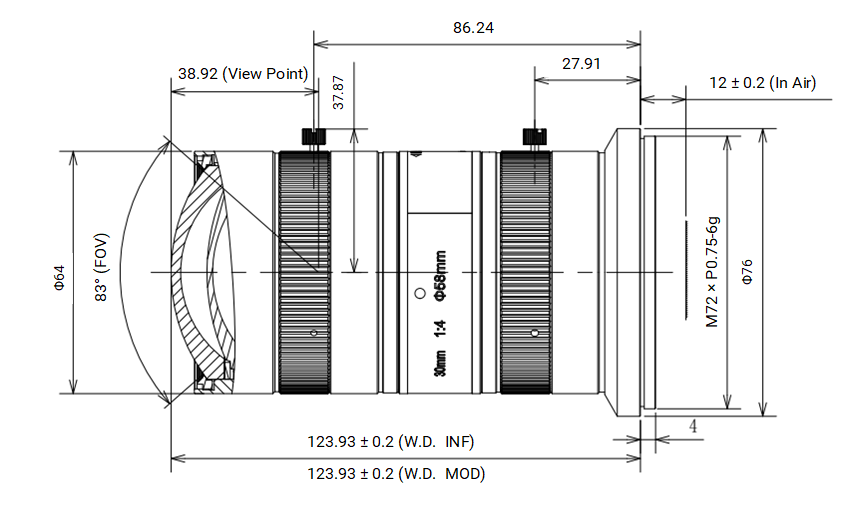

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-LF3040M-005-M72
Datasheet · DE · 447 KB
- Download
Technical drawing HikRobot Objektiv MVL-LF3040M-005-M72
Technical drawing · DE · 2 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Adopts high-precision lens for 8k 7 µm line scan cameras. - Provides excellent consistency of image clarify with high resolution. - Provides ultra-high image resolution at the maximum iris of F4.0. - Provides maximum image size Φ58 mm.
