Coaxial light BEK-K5050-G5TI-IBS
Manufacturer part number: BEK-K5050-G5TI-IBS
Series: BEK-K5050
- Light color
- White, 6500 K
- Drive / supply
- 18 … 35 V DC (Supply Class 2)
- Connection
- Connector, M12, 3-pin
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BEK-K5050-G5TI-IBS |
|---|---|
| Elektrische Merkmale: Betriebsspannung | 18 … 35 V DC (Supply Class 2) |
| Elektrische Merkmale: Leerlaufstrom (max.) | 310 mA (24 V DC) |
| Elektrische Merkmale: Leistung | 7.4 W (24 V DC) |
| Elektrische Merkmale: Verpolschutz | Yes |
| Mechanische Merkmale: Leuchtfläche | 50 x 50 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | Mineral glass (Fenster) |
| Zertifizierungen, Zulassungen: Schutzklasse | III, operation on safety extra-low voltage |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Besonderheiten | Triggereingang |
| Ausgang, Eingang, Schnittstelle: Triggereingang High Pegel | 3.3 … 35.0 V |
| Ausgang, Eingang, Schnittstelle: Triggereingang Low Pegel | < 2.8 V |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | White |
| Optische Daten: Wellenlänge | 6500 K |
| Optische Daten: Abstrahlwinkel FWHM | 120° |
| Optische Daten: Beleuchtungsstärke | 21.3 kLx (5.0 mm) 12.5 kLx (30.0 mm) 7.10 kLx (50.0 mm) |
| Anzeige, Bedienung: Regelung | Integrated power control |
| Anzeige, Bedienung: Anzeige | LED green - power indicator |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C |
| Umgebungsbedingungen: Schutzart | IP 20 |
| Elektrischer Anschluss: Anschluss | Connector, M12, 3-pin |
| Zubehör: Anschlusskabel | VK … |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

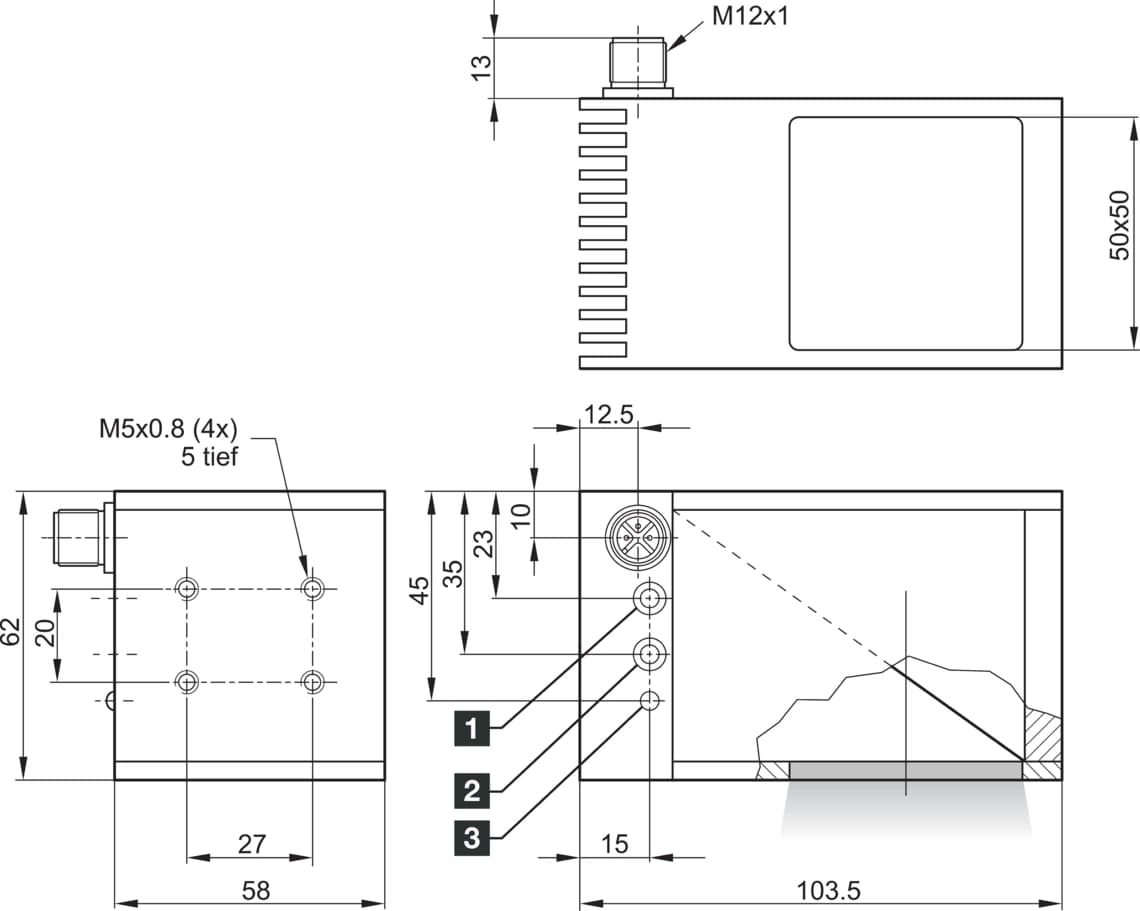

Dimensional drawing
Documents
- Download datasheet
Datasheet BEK-K5050-G5TI-IBS
Datasheet · DE · 3 MB
- Download
BEK-K50/50-GxTI-IBS (STP)
Technical drawing · DE · 641 KB
- Download
BEK-K50/50-GxTI-IBS (IGS)
Technical drawing · DE · 2 MB
Accessories
Power / I/O cables(8)
di-soric
Strom- / I/O-Kabel VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Halterung / Stand(8)
di-soric
Grundhalter HS-GH-12
Grundhalter
di-soric
Kreuzverbinder HS-K-12-12-A
Kreuzverbinder
di-soric
Montagestange HS-S-12-100-V
Montagestange
di-soric
Montagestange HS-S-12-200-V
Montagestange
di-soric
Montagestange HS-S-12-500-V
Montagestange
di-soric
Klemmzylinder HS-KL-12-20-V
Klemmzylinder
di-soric
Sensorhalter HS-S-12-130-M10
Sensorhalter
di-soric
Grundhalter SH-G-BE
Grundhalter
Adapterring(1)
Description
Coaxial lights provide shadow-free, axial illumination of the objects being inspected. Surface reflections are reliably suppressed. They are available in every light color relevant to the application and offer features such as trigger inversion and brightness adjustment. Coaxial lights are suitable for operation on a 24 VDC supply and are brightness-stabilized across a wide voltage range.
