Coaxial light BEK-K5050-G2TI-IBS
Manufacturer part number: BEK-K5050-G2TI-IBS
Series: BEK-K5050
- Light color
- Green, 525 nm
- Drive / supply
- 18 … 35 V DC (Supply Class 2)
- Connection
- Connector, M12, 3-pin
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BEK-K5050-G2TI-IBS |
|---|---|
| Elektrische Merkmale: Betriebsspannung | 18 … 35 V DC (Supply Class 2) |
| Elektrische Merkmale: Leerlaufstrom (max.) | 300 mA (24 V DC) |
| Elektrische Merkmale: Leistung | 7.2 W (24 V DC) |
| Elektrische Merkmale: Verpolschutz | Yes |
| Mechanische Merkmale: Leuchtfläche | 50 x 50 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | Mineral glass (Fenster) |
| Zertifizierungen, Zulassungen: Schutzklasse | III, operation on safety extra-low voltage |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Besonderheiten | Triggereingang |
| Ausgang, Eingang, Schnittstelle: Triggereingang High Pegel | 3.3 … 35.0 V |
| Ausgang, Eingang, Schnittstelle: Triggereingang Low Pegel | < 2.8 V |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | Green |
| Optische Daten: Wellenlänge | 525 nm |
| Optische Daten: Abstrahlwinkel FWHM | 120° |
| Optische Daten: Beleuchtungsstärke | 14.2 kLx (30.0 mm) 6.80 kLx (50.0 mm) 23.6 kLx (5.0 mm) |
| Anzeige, Bedienung: Regelung | Integrated power control |
| Anzeige, Bedienung: Anzeige | LED green - power indicator |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C |
| Umgebungsbedingungen: Schutzart | IP 20 |
| Elektrischer Anschluss: Anschluss | Connector, M12, 3-pin |
| Zubehör: Anschlusskabel | VK … |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

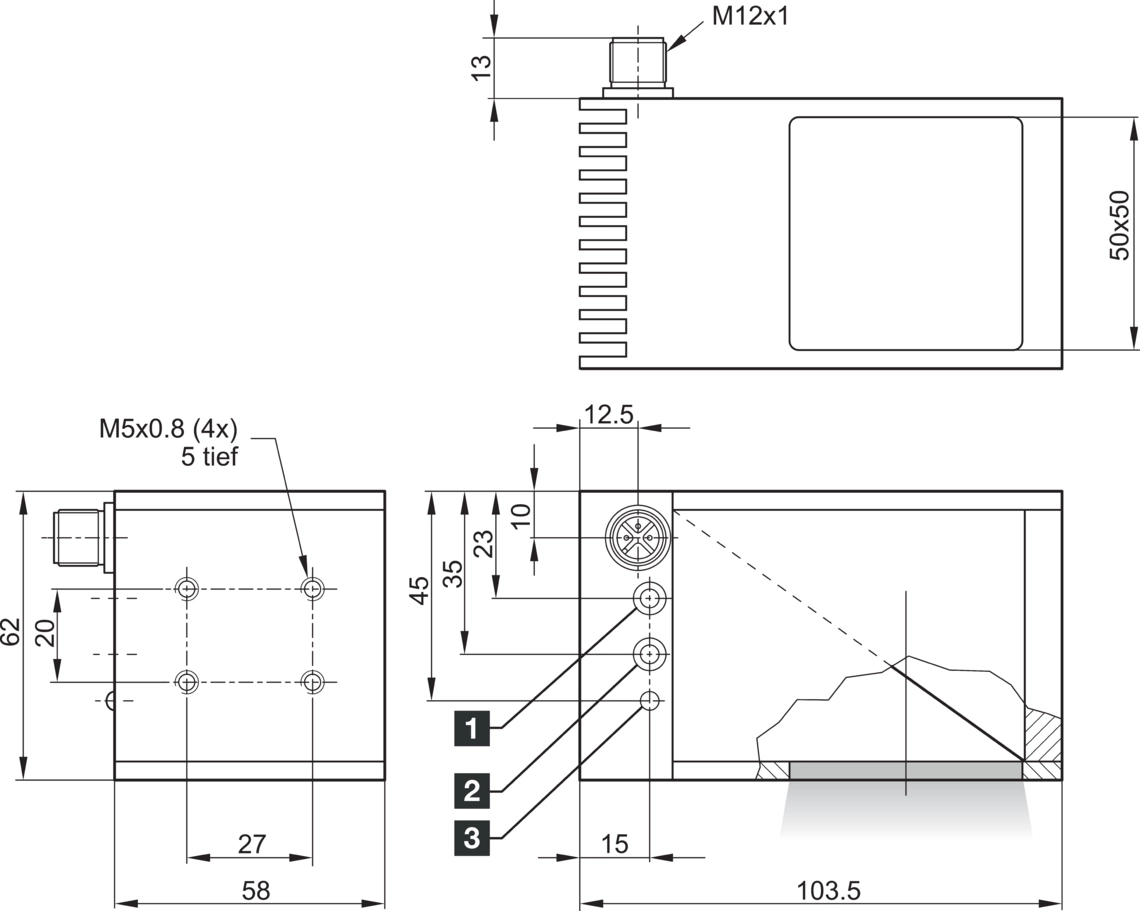

Dimensional drawing
Documents
- Download datasheet
Datasheet BEK-K5050-G2TI-IBS
Datasheet · DE · 3 MB
- Download
BEK-K50/50-GxTI-IBS (STP)
Technical drawing · DE · 641 KB
- Download
BEK-K50/50-GxTI-IBS (IGS)
Technical drawing · DE · 2 MB
Accessories
Power / I/O cables(8)
di-soric
Power / I/O cable VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Power / I/O cable VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Power / I/O cable VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Power / I/O cable VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Power / I/O cable VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Power / I/O cable VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Power / I/O cable VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Power / I/O cable VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Halterung / Stand(8)
di-soric
Base holder HS-GH-12
Base holder
di-soric
Cross connector HS-K-12-12-A
Cross connector
di-soric
Mounting rod HS-S-12-100-V
Mounting rod
di-soric
Mounting rod HS-S-12-200-V
Mounting rod
di-soric
Mounting rod HS-S-12-500-V
Mounting rod
di-soric
Clamping cylinder HS-KL-12-20-V
Clamping cylinder
di-soric
Sensor holder HS-S-12-130-M10
Sensor holder
di-soric
Base holder SH-G-BE
Base holder
Adapterring(1)
More variants in this series
Description
Coaxial lights provide shadow-free, axial illumination of the objects being inspected. Surface reflections are reliably suppressed. They are available in every light color relevant to the application and offer features such as trigger inversion and brightness adjustment. Coaxial lights are suitable for operation on a 24 VDC supply and are brightness-stabilized across a wide voltage range.
