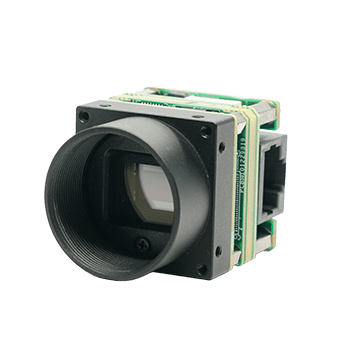

Board-level camera MV-CB120-10GM-C
Manufacturer part number: MV-CB120-10GM-C · 306302949
- Resolution
- 12 MP
- Pixels
- 4024 × 3036
- Max. frame rate
- 9.7 fps
- Color / mono
- Mono
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.7"
- Pixel size
- 1.85 µm × 1.85 µm
- Interface
- GigE
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CB120-10GM-C |
|---|---|
| Type | 12MP Board Level Camera, GigE, IMX226, mono, C-mount |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 µm × 1.85 µm |
| Sensor size | 1/1.7" |
| Resolution | 4024 × 3036 |
| Max. frame rate | 9.7 fps @ 4024 × 3036 Mono 8 |
| Dynamic range | 70.5 dB |
| SNR | 40.5 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 34 µs to 2 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 1.9 W @ 12 VDC |
| Lens mount | C-mount or M12-mount |
| Dimension | 29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 45 g (0.1 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 80 % RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | RoHS |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

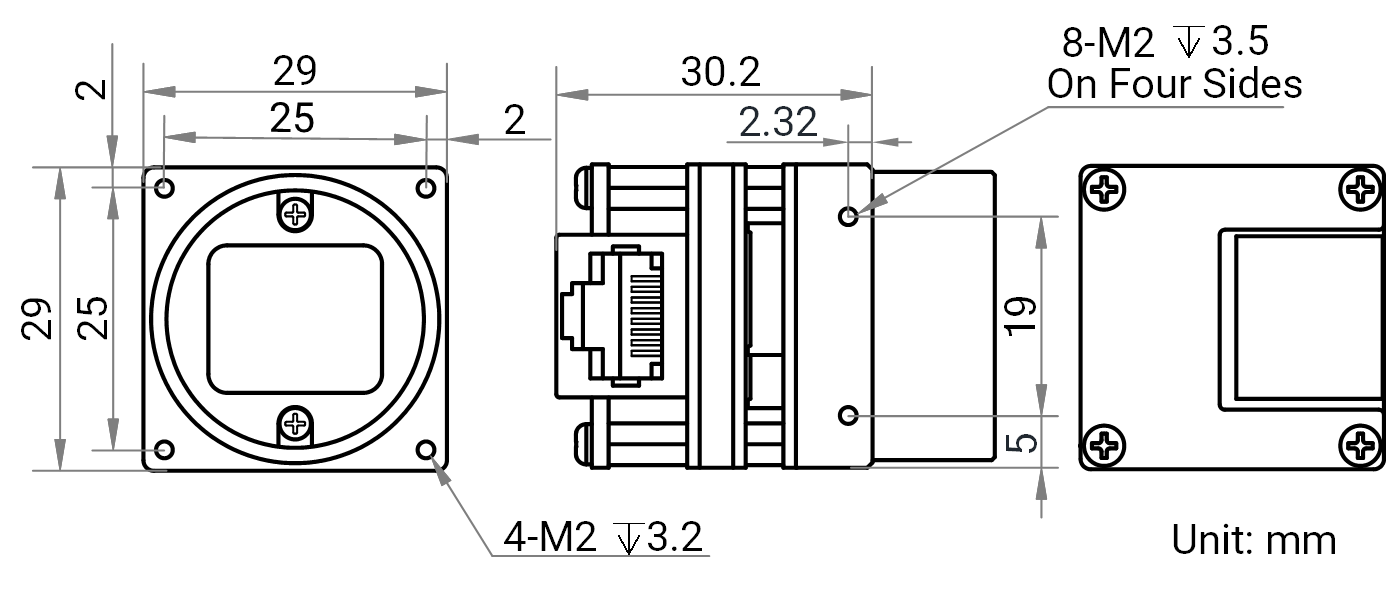

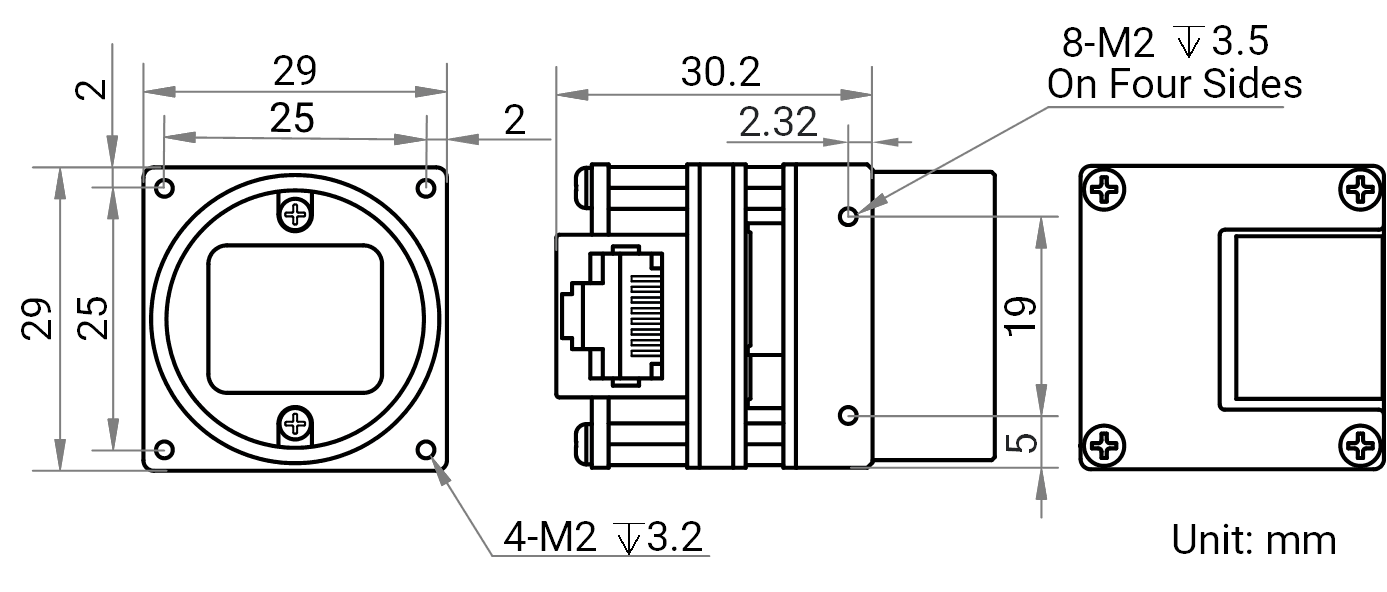

Dimensional drawing
