HIKROBOT

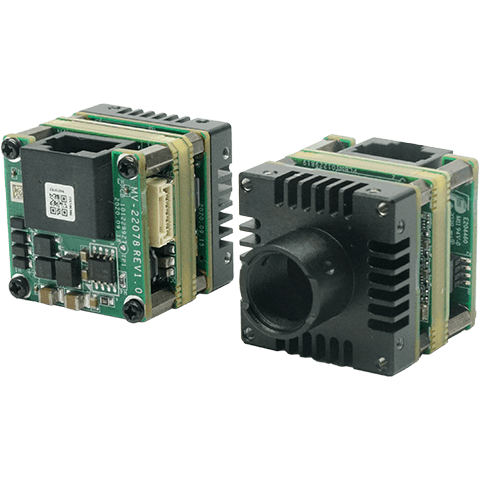

Board-level camera MV-CB060-10GM-S
Manufacturer part number: MV-CB060-10GM-S · 306301613
- Resolution
- 6 MP
- Pixels
- 3072 × 2048
- Max. frame rate
- 19.1 fps
- Color / mono
- Mono
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.8"
- Pixel size
- 2.4 µm × 2.4 µm
- Interface
- GigE
- Lens mount
- S-Mount (M12)
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CB060-10GM-S |
|---|---|
| Type | 6MP Board Level Camera, GigE,IMX178,Mono,M12-mout |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 µm × 2.4 µm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 19.1 fps @3072 × 2048 30.7 fps @3072 × 2048 (image compression mode enabled) |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 25 µs to 2.5 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.3 W @ 12 VDC |
| Lens mount | M12-mount |
| Dimension | 29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 45 g (0.1 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % to 80 % RH, non-condensing |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

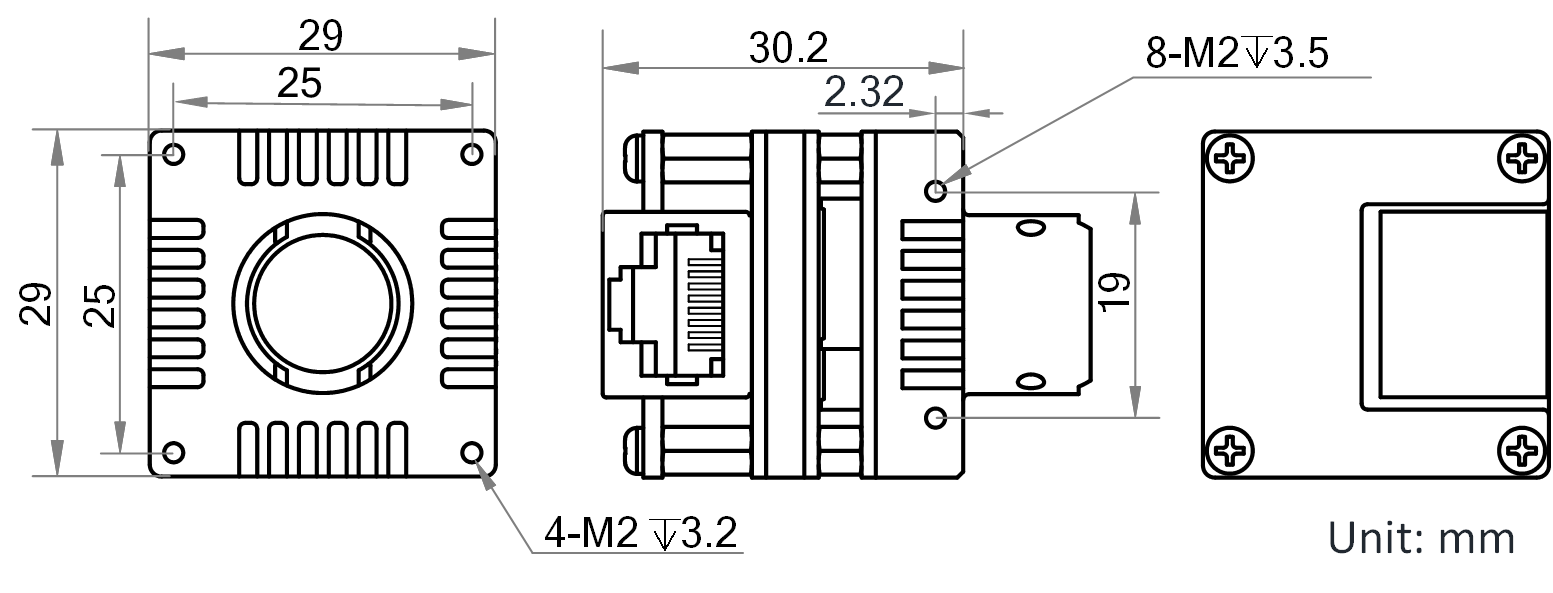

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Platinenkamera MV-CB060-10GM-S
Datasheet · EN · 727 KB
- Download
Technical drawing HikRobot Platinenkamera MV-CB060-10GM-S
Technical drawing · EN · 16 MB
Software and SDK (12)
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
Manual HikRobot Platinenkamera MV-CB060-10GM-S
Manual · EN · 3 MB
Accessories
Data cables(25)
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 30 m
RJ45 (with locking stud) · 30 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 15 m
RJ45 (with locking stud),Bend (up) · 15 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 5 m
RJ45 (with locking stud),Bend (up) · 5 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 1 m
RJ45 (with locking stud) · 1 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 60 m
RJ45 (with locking stud) · 60 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 10 m
RJ45 (with locking stud) · 10 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 5 m
RJ45 (with locking stud) · 5 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
SuperFlex GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 3 m
RJ45 (with locking stud) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45 angled-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 15 m
RJ45 (with locking stud) · 15 m
Data cable
HIKROBOT
High-flex GigE data cable (RJ45 angled-RJ45), 3 m
RJ45 (with locking stud),Bend (up) · 3 m
Data cable
HIKROBOT
Standard GigE data cable (RJ45-RJ45), 7 m
RJ45 (with locking stud) · 7 m
Data cable
More HIKROBOT products in this category
- Area scan camera MV-CA060-11GM
- Board-level camera MV-CB004-10GC-S
- Board-level camera MV-CB004-10GM-S
- Board-level camera MV-CB016-10GC-C
- Board-level camera MV-CB016-10GM-S
- Board-level camera MV-CB060-10GC-S
- Board-level camera MV-CB120-10GM-C
- Board-level camera MV-CB120-10GM-S
- Area scan camera MV-CE013-80GC
- Area scan camera MV-CE013-80GM
- Area scan camera MV-CE050-31GC
- Area scan camera MV-CE100-30GC
Description
Key Feature - Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc. - Adopts noise reduction and image compression functions to provide high-quality images. - Adopts GigE interface and max. transmission distance of 100 meters without relay. - Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
