Board-level camera MV-CB004-10GC-S

Manufacturer part number: MV-CB004-10GC-S · 306301610

Resolution: 0.4 MP
Pixels: 720 × 540
Max. frame rate: 125.2 fps
Color / mono: Color
Shutter type: Global Shutter
Sensor format: 1/2.9"
Pixel size: 6.9 µm × 6.9 µm
Interface: GigE
Lens mount: S-Mount (M12)

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CB004-10GC-S
Type	0.4MP Board Level Camera, GigE,IMX297,Color,M12-mout
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX297
Pixel size	6.9 µm × 6.9 µm
Sensor size	1/2.9"
Resolution	720 × 540
Max. frame rate	125.2 fps @720 × 540
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.6 W@12 VDC
Lens mount	M12-mount
Dimension	29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 45 g (0.1 lb.)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20 % to 80 % RH, non-condensing
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, FCC, RoHS, KC

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

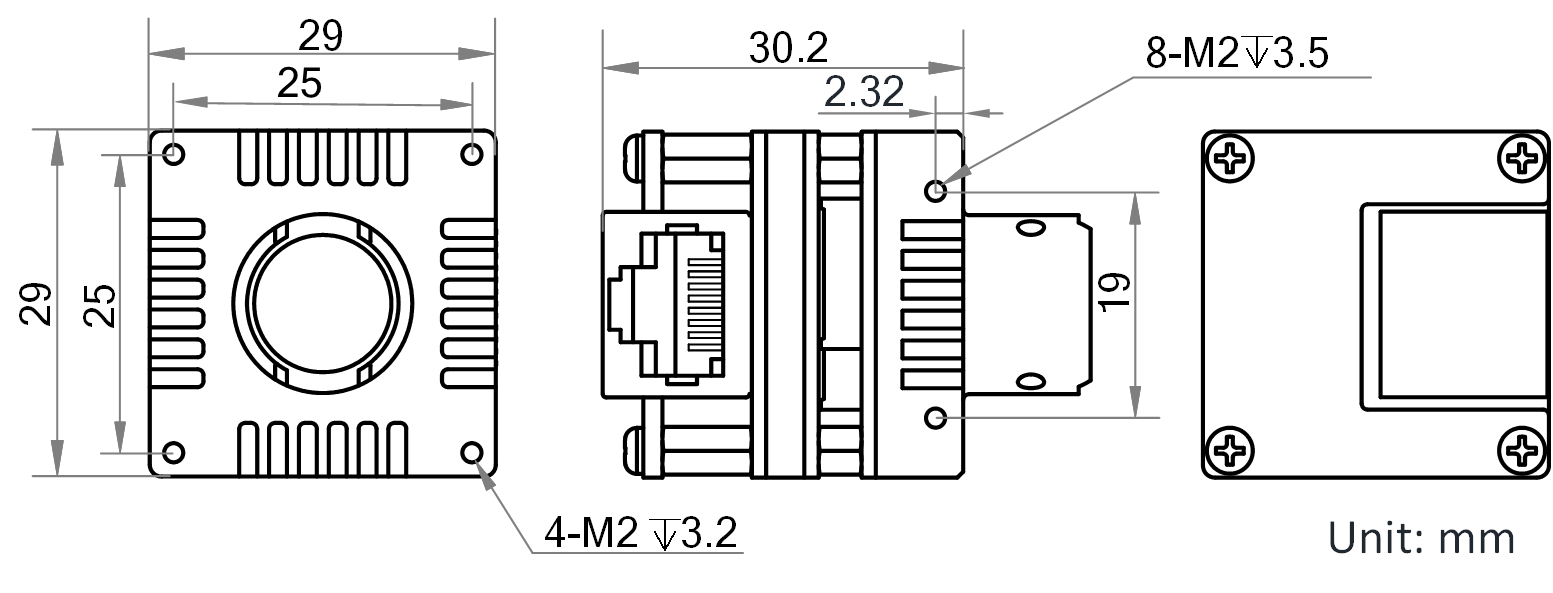

Dimensional drawing
